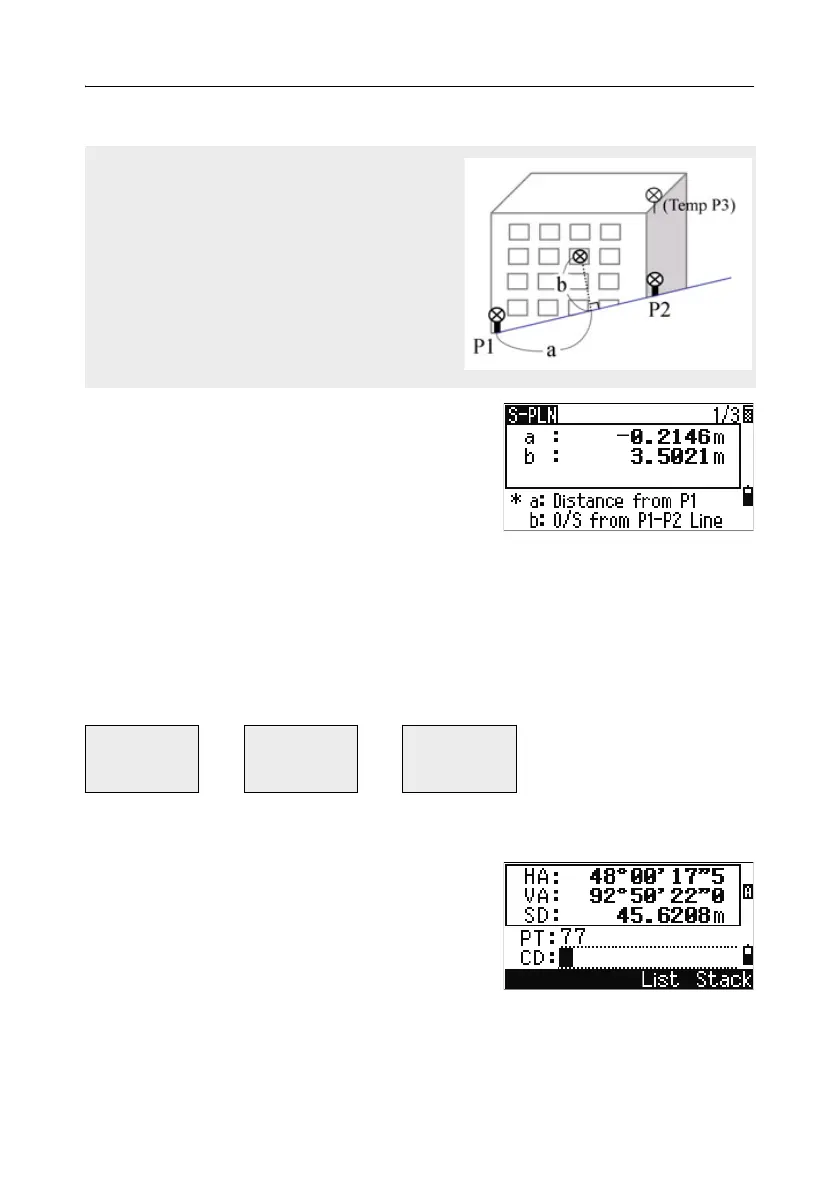

Once the plane is defined, the calculated a and
b values are updated as you move the
telescope. No distance measurement is
required.
a Distance between P1 and the point that
is perpendicular to the target point
along the P1-P2 line
b Length of the perpendicular line from the target point to the P1-P2 line
Using [DSP] to switch between display screens
Press [DSP] to switch between the plane display screens. The following screens are
available:
Every time you press
[DSP], the next screen appears. If you press [DSP] in the last
screen (PLN3), the PLN1 screen appears.
To record the point, press
[ENT] on any screen
(S-PLN1/3 to S-PLN3/3).
Enter PT and CD. Then press
[ENT].
Sample records
CO,3ptPlane P1:1062 P2:2902 P3:1547
CO,a=31.497 b=14.239
SS,30123-A49,1.6110,0.0000,234.3210,86.0955,16:07:18,
If the plane is defined by two points (by
selecting 2Pt), the vertical plane is the
same as the plane used in the V-Pln
function, but the indicating factors are Sta
and dZ, not a and b. For more information,
see Measuring distance and offset values
on the vertical plane, page 99.
PLN1 PLN2 PLN3
a
b
X
Y
Z
HA
VA
To Next Page
