Checking and Adjustment 6
Pulse Laser Station NPL-302 Series Instruction Manual 173
X1 Face-1 X axis tilt value
Y1 Face-1 Y axis tilt value

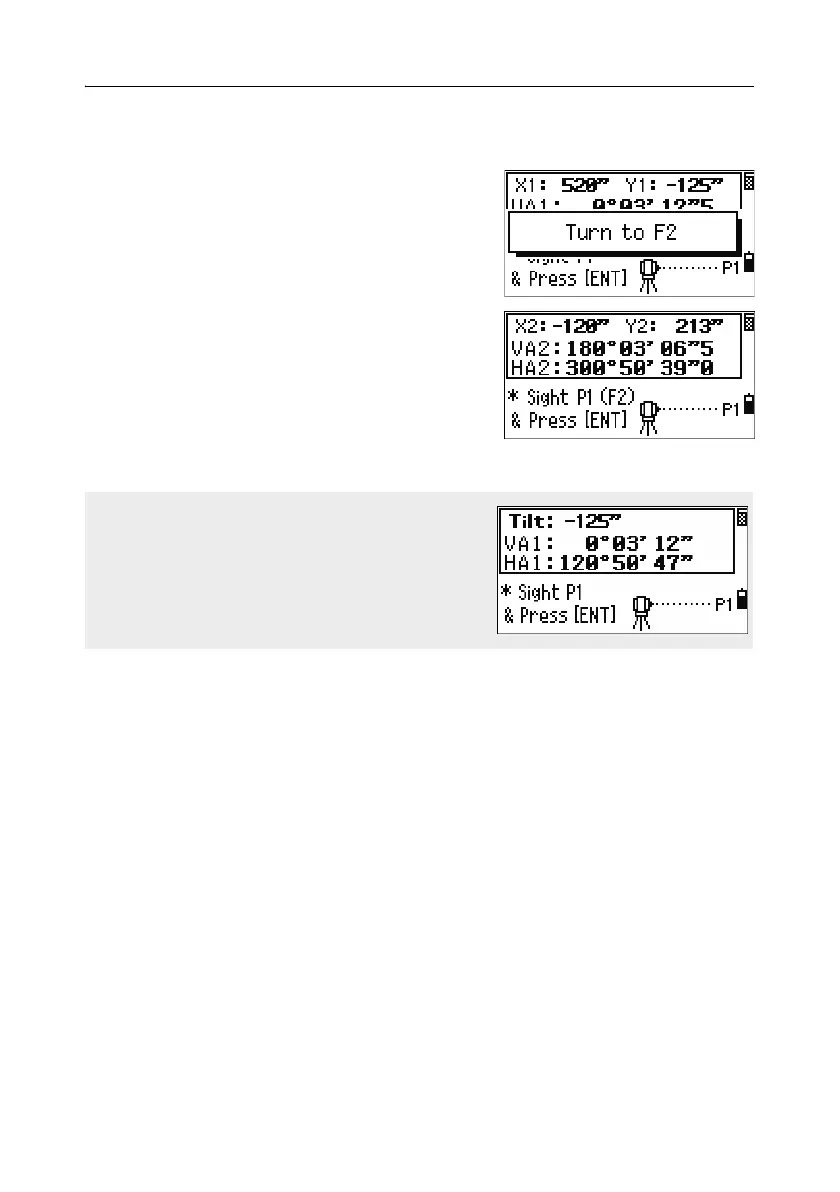

When you have taken the measurement, the
message on the bottom line changes from
DO
NOT TOUCH%
to Turn to F2.
2. Take an F2 measurement to the same target.
Press
[ENT].
VA2 Face-2 vertical angle (tilt-off value)
HA2 Face-2 horizontal angle (tilt-off value)
X2 Face-2 X axis tilt value
Y2 Face-2 Y axis tilt value
When the observation on F2 is completed, four parameters are displayed.
3. Do one of the following:
– To return to the first observation screen, press
[ESC] or the Redo softkey.
– To set parameters on the instrument, press
[ENT] or the OK softkey.
The NPL-332 has vertical axis adjustment only.
The header displays Tilt instead of X and Y.
Otherwise, the calibration procedure is the same.
