Programming 15088:K 3/21/01
3-15

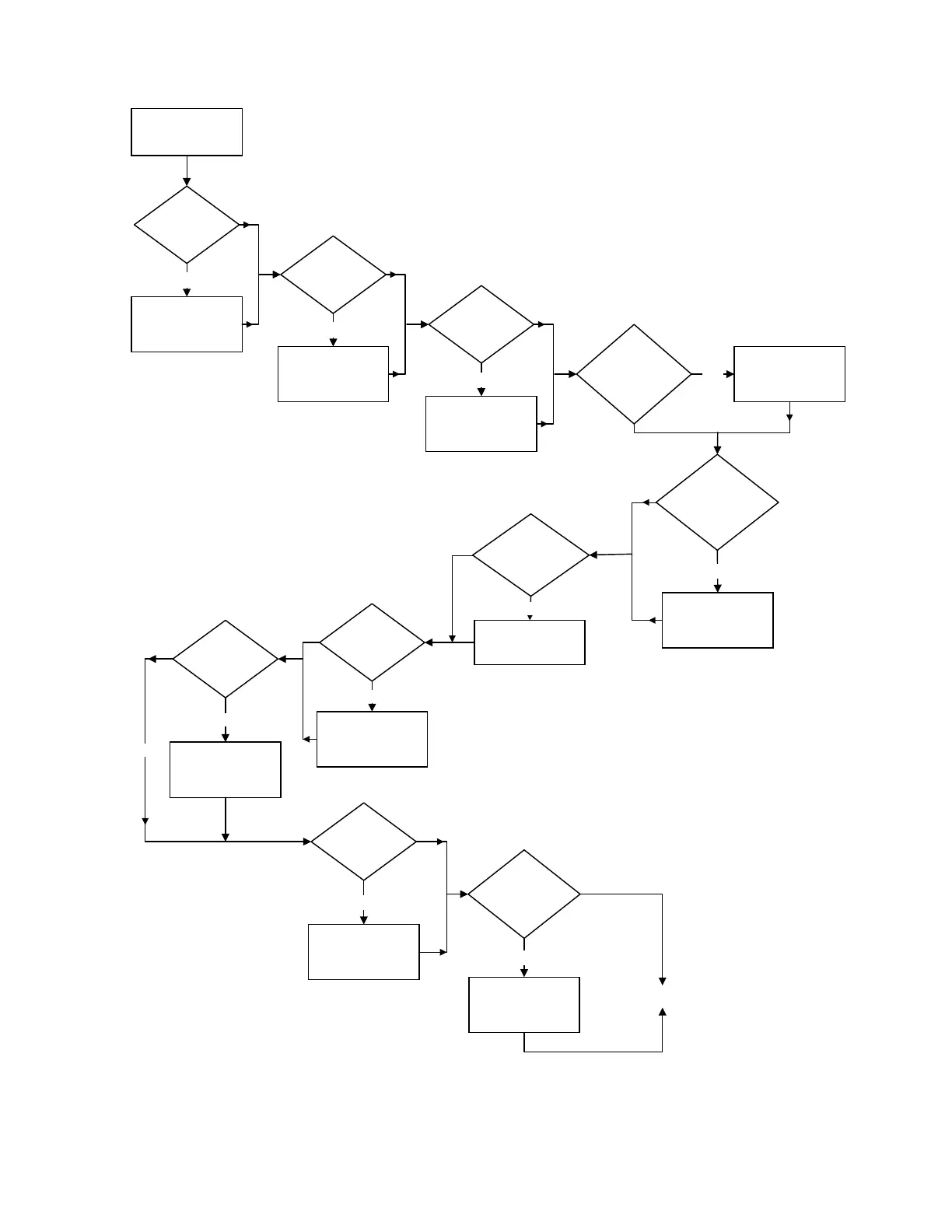

Figure 1-6 External Equipment Option Flow Chart
6 = EXTEQ
Change
Terminal
Supervision?
Enable/Disable
Terminal Supervision
Change
Terminal Status
Line?
Enable/Disable
Terminal Status Line
Yes
Yes
No
Change Aux
Printer Prog?
Enable/Disable Aux
Printer
Yes
No
Change Control
Module State
Reporting?
No
Enable/Disable Aux
Printer
Yes
Change NONA/
NOA Module State
Reporting?
No
Enable/Disable
NONA/NOA State
Reporting
Yes
No
Enable/Disable LED
Latching
Yes
Change Printer
Error Handling?
No
Enable/Disable Data
Transmit During
Printer Error
Yes
Change
Bidirectional
Copy?
Enable/Disable
Bidirectional Copy
Yes
No
No
Change Primary
Printer Prog?
Enable/Disable
Primary Printer
Trouble
Yes
Change Printer
Report Handling?
Enable/Disable
Printer Reports
Redirected to CRT
Yes
No
No
(Exit Prog Mode)
All devices
purchased after
4/1/91?
156
158
