Notifier AFP1010 User Manual

4-9
Security 15088:K 03/21/01

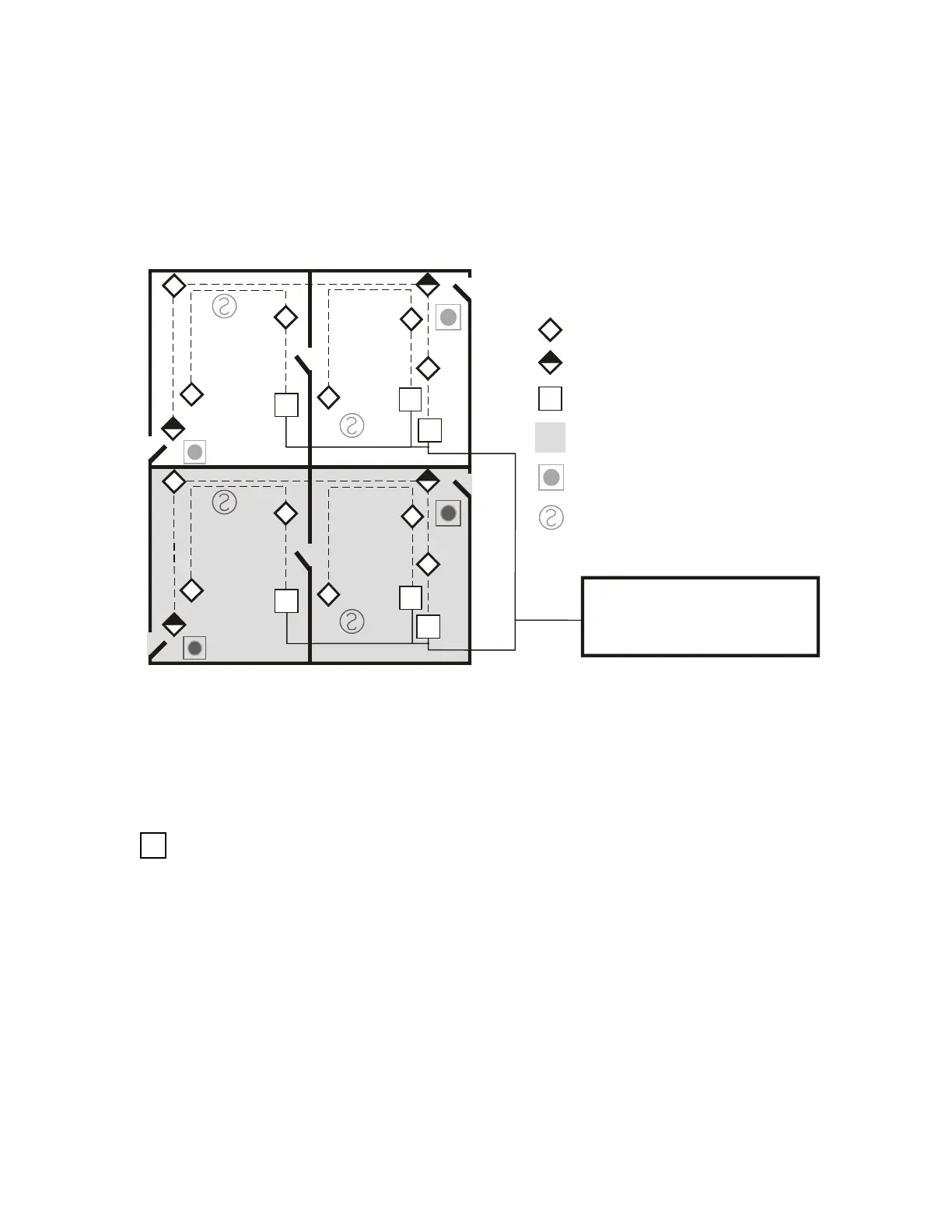

Figure 1.3-3 Multiple Tenant Simple Security System
The following system requirements are illustrated in Figure 1.3-3. See Table 1.1-1 in the introduction to this
section for monitor module options.
• One AM2020/AFP1010 Control Panel
• Multiple Security Supervisory Protected Areas
• Multiple Protected Premises
• One Monitor Module per protected area, Security Devices (minimum security equipment).
Programming Key for Figure 1.3-3
MM Security Area Monitor:
Address: LXXMYY (Installer specified).
Type ID: SARM
Control-By-Event: ( )
Custom Label: Installer Specified (describe location of module).
Tracking: Yes - Results in required acknowledgment at Central Station for every unsecured state.
Restoral is automatic.
No - Results in required acknowledgment at Central Station for first unsecured state only (until
reset at Central Station - short condition only).
Annunciator: No (not required).
Yes (if annunciator mapping desired)
Annunciator Point
Mapping (Optional): AxxPyy
AM2020/AFP1010
Central Station
Key
Signaling Line Circuit
TENANT A
AREA 1
(Perimeter)
AREA 3
AREA 2
3
2
1
Area3.cdr
Motion Detector
Contact Switch
Pull Station
Smoke Detector
MM Security Area Monitor
TENANT B
Shaded Area Indicates Second Tenant
AREA 1
(Perimeter)
3
2
1
