4.6 Programming Examples
Options

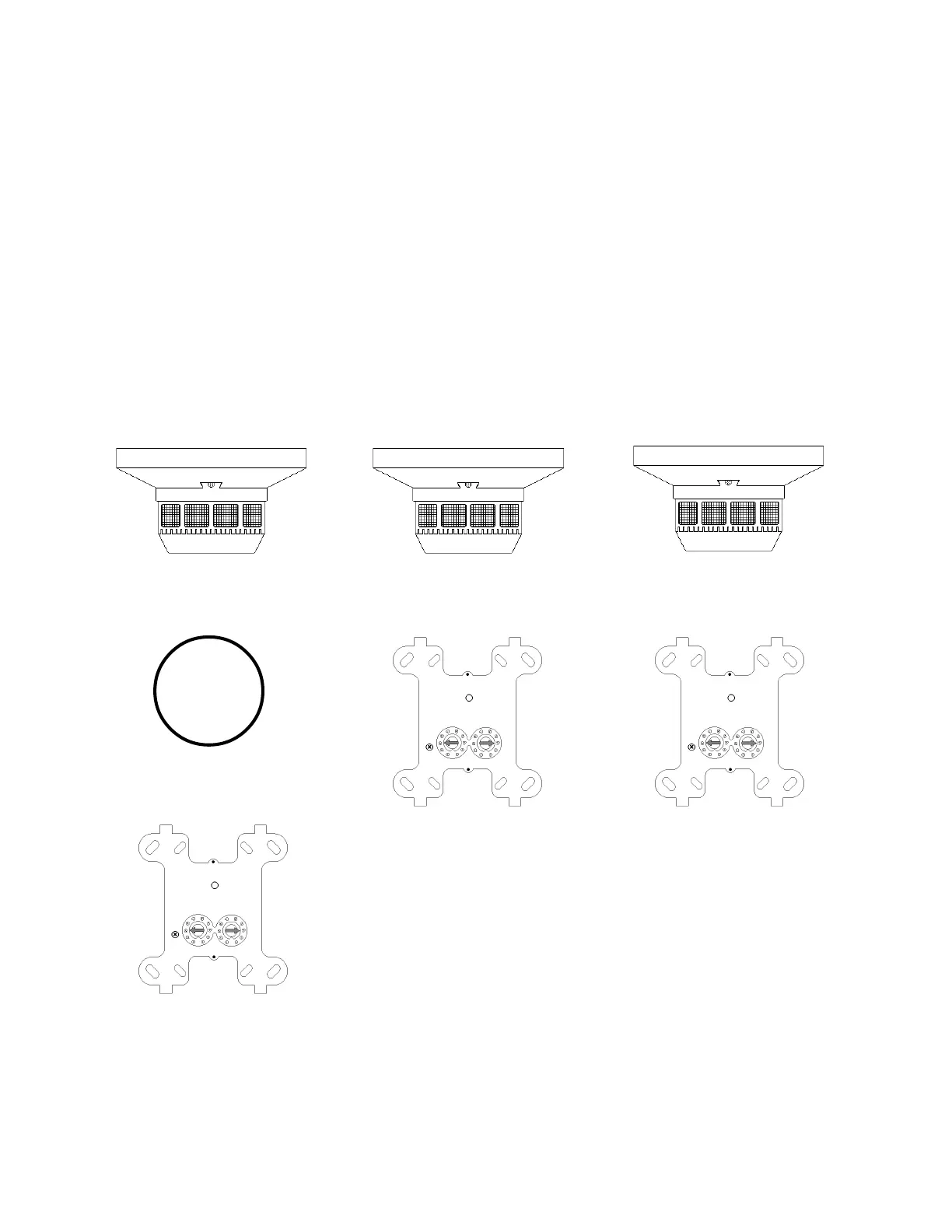

The example below illustrates three ways to accomplish the simple programming task of programming a
Notification Appliance (control module) on SLC Loop 1 to indicate activation of an Initiating Device (smoke
detector) also on SLC Loop 1.
Software
Zone Z1
Type: FZON
Ø
×
Program the control
module with the
Control-By-Event
OR(Z1)
×
Solution A
Program the smoke
detector with the
Control-By-Event:
(Z1)
Ø
Solution C
Program the smoke
detector with the
Control-By-Event:
(L1M1)
Program the control
module with the
Control-By-Event
OR(L1D1)
No Control-By-
Event required for
the control module.
Solution B
No Control-By-
Event required for
the smoke detector.
