The following system requirements are illustrated in Figure 1.3-4. See Table 1.1-1 in the introduction to this
section for other monitor and control module options.
• One AM2020/AFP1010 Control Panel
• Multiple Security Supervisory Circuits Reporting to Central Station as a Single Area
• Single Protected Premises
• The minimum security equipment required is as follows:
— Multiple MMX-1 or MMX-101 Monitor Modules per protected area
— one group interface consisting of a CMX and an MMX-1 or MMX-101 module.
— security devices

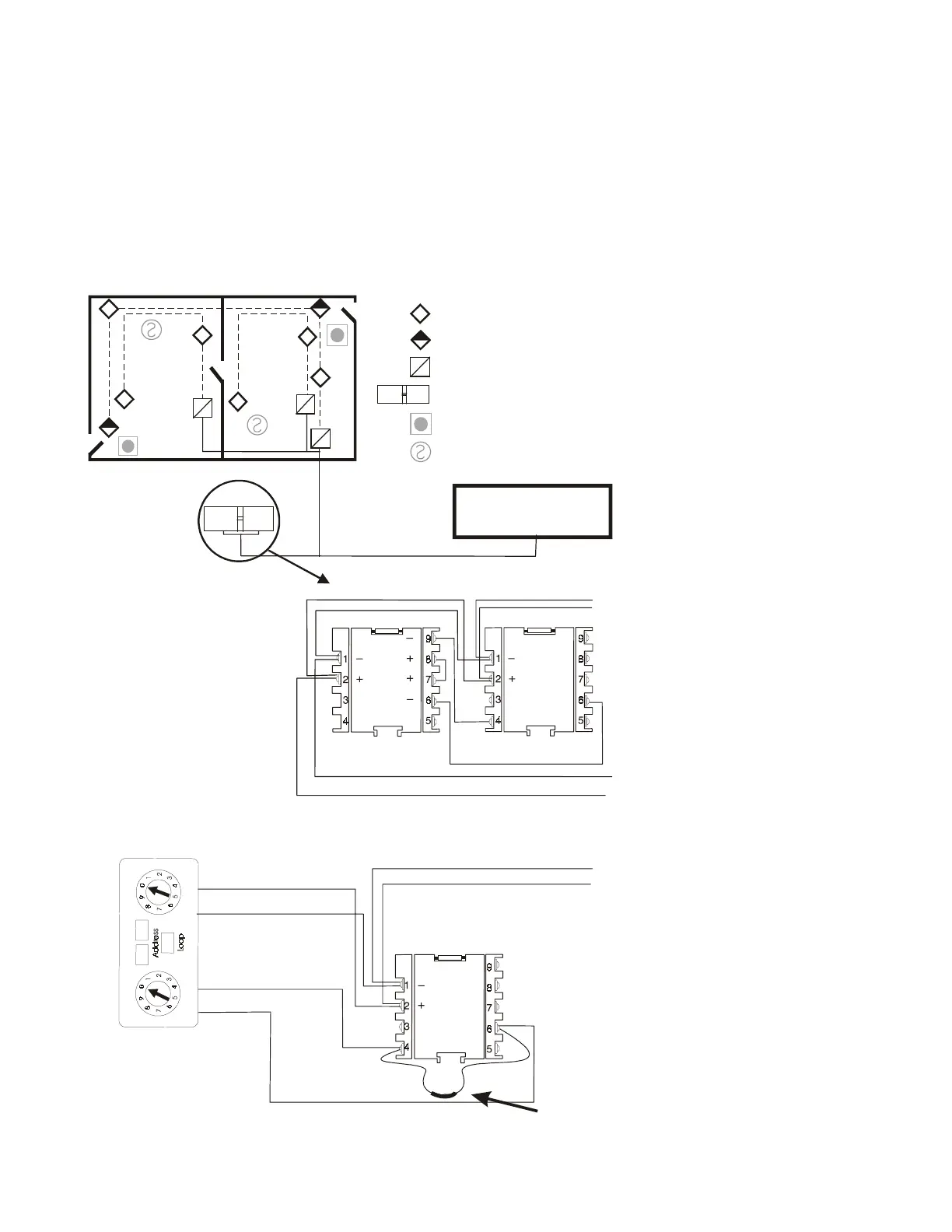

Figure 1.3-4 Single Tenant Consolidated Security System
AM2020/AFP1010
Central Station
Key
Signaling Line Circuit
TENANT A
Area4.cdr
Motion Detector
Contact Switch
Pull Station
Smoke Detector
MM Security Area Monitor
Group Interface *
AREA 1
(Perimeter
and
Interior)
* Group Interface must be physically
located in either the protected
premises or the Central Station
MM C M
MM
CM
Group Interface *
MMX-1/CMX Wiring
MMX-1
CMX-1
or
CMX-2
com
Signaling Line Circuit
from Central Station
Signaling Line Circuit
to other devices
Note: Tabs on CMX must be broken
when used as a Form-C relay
Signaling Line Circuit
from Central Station
MMX-101/CMX Wiring (Alternate to MMX-1/CMX)
R-47K End-of-Line
Resistor (not supplied)
Note: Tabs on CMX must be broken
when used as a Form-C relay
CMX-1
or
CMX-2
com
no
no
red (+)
black (-)
purple
yellow
1
