Notifier AFP1010 User Manual

1-11
Installation 15088: K 3/21/01
CAB-C3

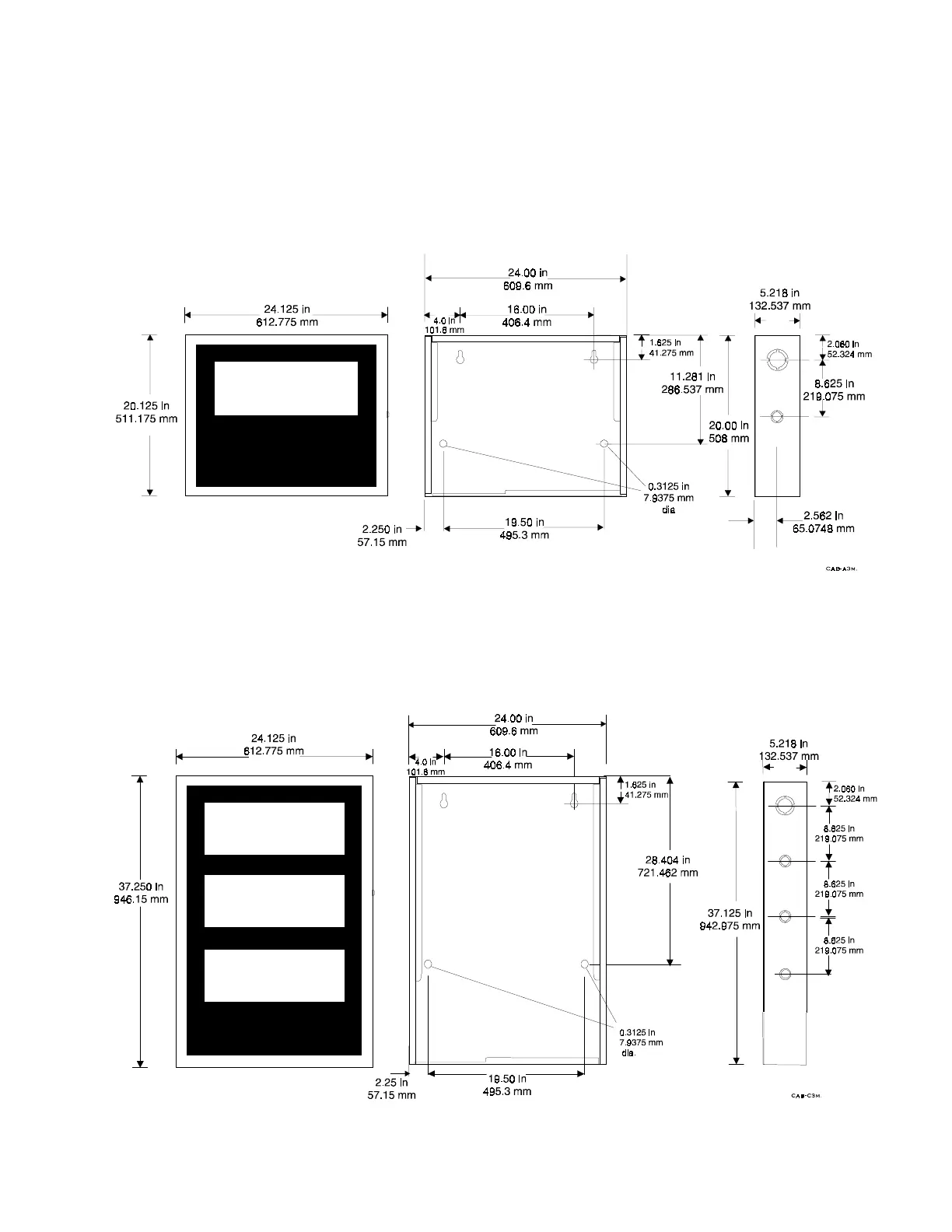

The CAB-C3 is the cabinet and door assembly for three mounting rows. An optional TR-C3 trim ring is available
for use with the C-size cabinet, which is 24.125 inches wide by 37.250 inches high (612.775 mm wide by 946.15
mm high). The following replacement parts are available:
• DR-C3 door
• SBB-C3 backbox
Section 2.2 CAB-3 Series Backboxes
CAB-A3
The CAB A-3 is the cabinet and door assembly for one mounting row. An optional TR-A3 trim ring is available for
use with the A-size cabinet, which is 24.125 inches wide by 20.125 inches high (612.775 mm wide by 511.175
mm high). The following replacement parts are available:
• DR-A3 door
• SBB-A3 backbox
