How to Program a Releasing Zone Appendix A: Releasing Applications
NFS-640 Programming Manual P/N 51333:B 10/03/2003 67
How to Program a Manual Release Switch
The following contains information needed to program a Manual Release switch for a monitor module
.
Description A monitor module—connected to a UL-listed manual station (such as the Notifier
NBG-12LRA)—used to manually release agents. A Manual Release switch
overrides all timers, such as a Delay Timer or a Soak Timer. You can install
multiple monitor modules with a
MAN. RELEASE Type Code that work like
multiple conventional manual release switches on a conventional zone.
How to
program
1. Select a monitor module (refer to “How to Modify or Delete a Point
(2=point)” on page 21) that you want to use for the manual release function.
2. Select the
MAN. RELEASE Type Code.
3. Select the Releasing Zone (R0-R9) for your releasing application.
4. Press the
ENTER key to save, then press the ESC key until you return to the
Program Change screen.
Example
A programming example of a monitor module programmed as an manual release switch for
Releasing Zone R5.

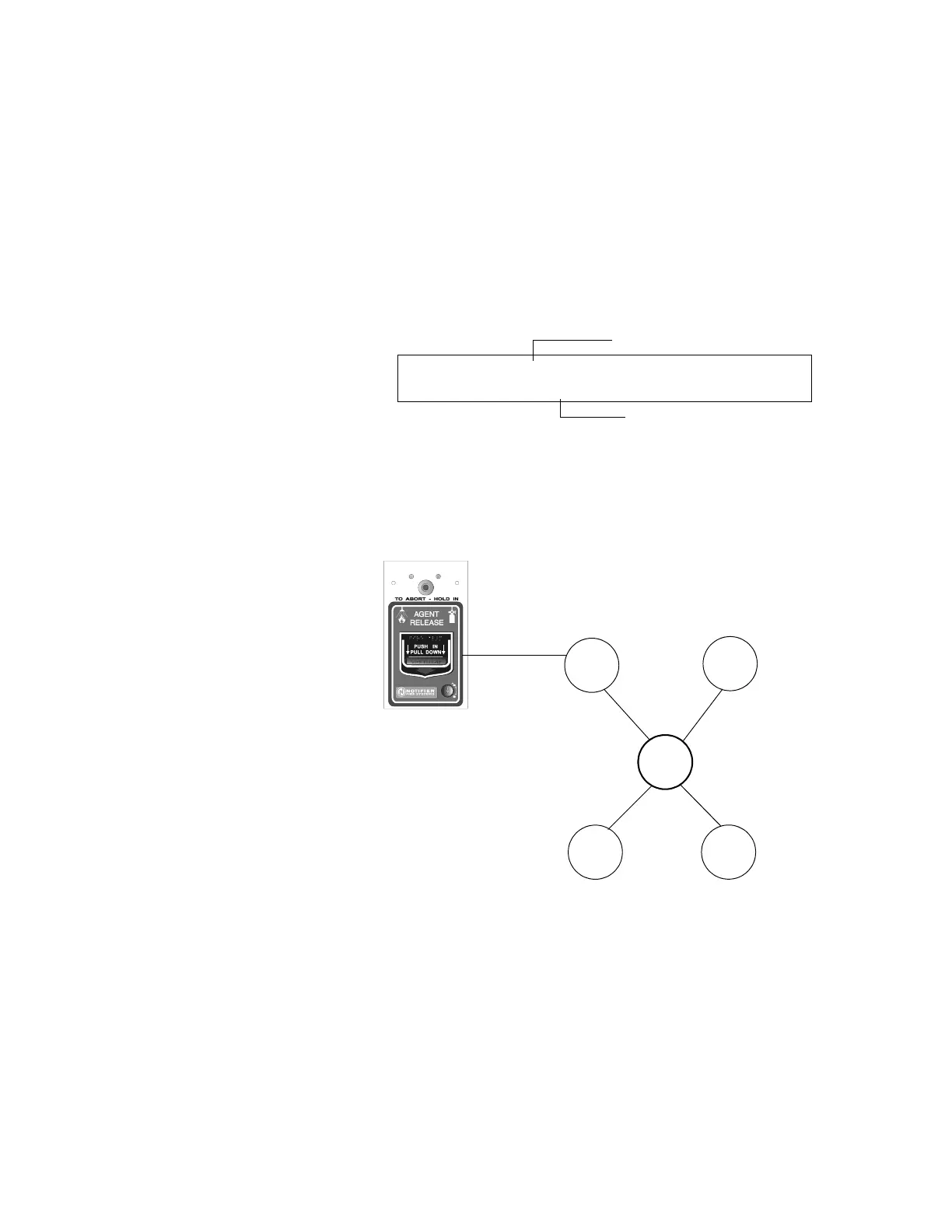

Figure 13 Monitor Module Configured as a Manual Release Switch
Releasing Zone selection (R5 shown)
Type Code selection: MAN RELEASE
PROGRM MAN_RELEASE MODULE ADDR 2M101
R5 __ __ __ __ 2M101
SYSTEM
NORMAL
SYSTEM
CTIVATED
Detector
Control
Module
R05
NBG12LRA station with Manual Release Lever
B01
Monitor
Module
Type Code
MANUAL RELEASE
Xzonea.cdr
