Nvidia Jetson Orin NX Series User Manual

Power
PRELIMINARY INFORMATION
Jetson Orin NX Series and Jetson Orin Nano Series DG-10931-001_v1.1 | 25

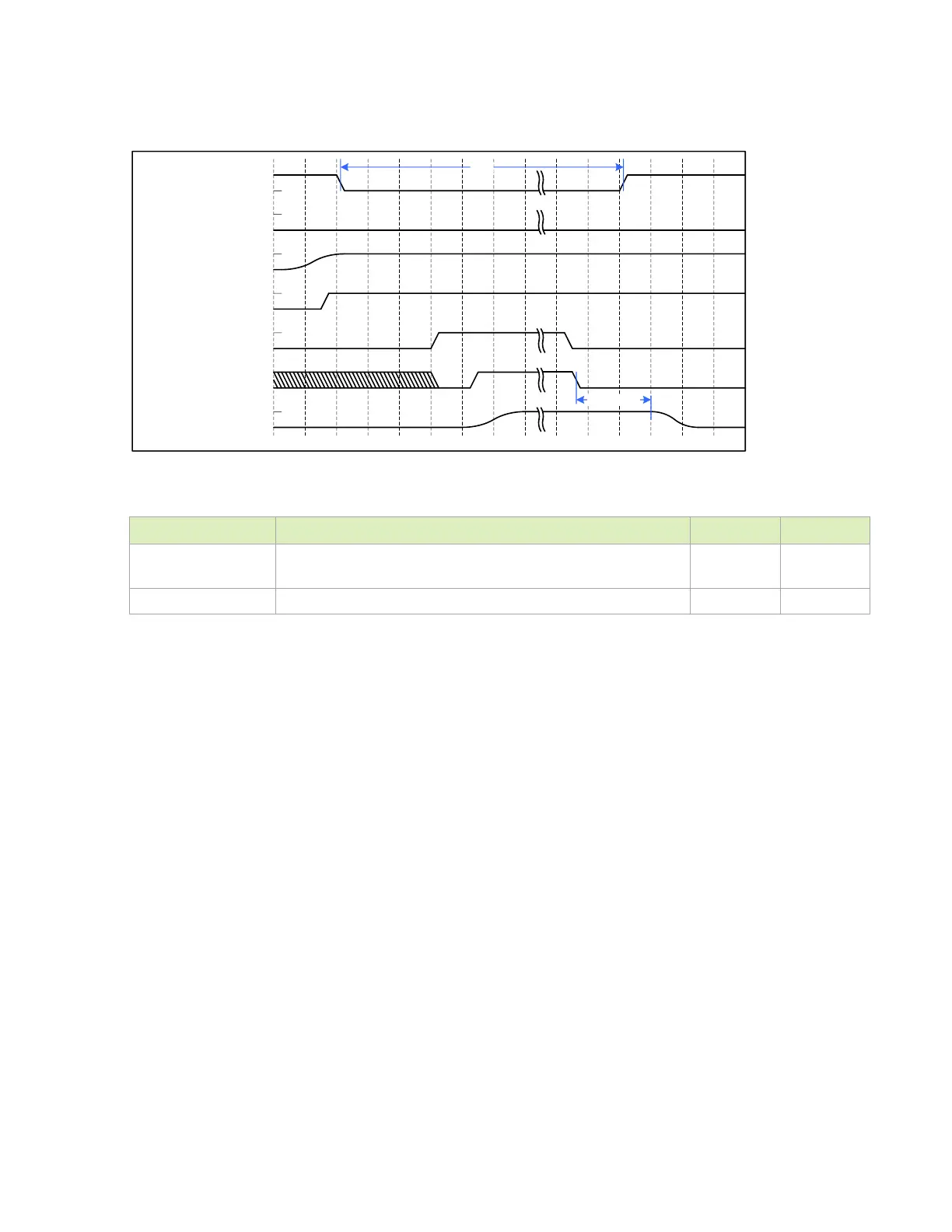

Figure 6-10. Power-On to Off Power Button Held Low > 10 Seconds
POWER_EN
BUTTON_POWER_ON*
SYS_RESET*
ACOK
VDD_DCIN
SHUTDOWN_REQ*
Carrier Board 1.8V/
3.3V Supplies
T_ON
T_PWR_OFF
Table 6-5. Power-On to Off Timing Power Button Held Low > 10 Seconds
Timing
Parameter
Typical
Units
T_ON
Power button active duration for forced OFF
(T_PWR_ON + T_MPO_ON + T_CPO + T_MPO_OFF1)
> 10
s
T_PWR_OFF
Delay to first rail OFF
10
ms

Nvidia Jetson Orin NX Series Specifications

General

Networking	Gigabit Ethernet
Module Size	69.6 mm x 45 mm
Operating System	Linux (JetPack SDK)
GPU	NVIDIA Ampere architecture with 1024 CUDA cores
CPU	8-core ARM Cortex-A78AE v8.2 64-bit CPU
Memory	16GB 128-bit LPDDR5
Storage	eMMC 5.1
AI Performance	100 TOPS (INT8)
Camera	Up to 6 cameras (24 via virtual channels) CSI camera
Power	15W to 25W
Video Encode	1x 4Kp60 | 2x 4Kp30 | 4x 1080p60
Connectivity	PCIe Gen4
Other I/O	GPIO, I2C, SPI, UART, CAN
