BA_OTE 3+4_Endkunde_EN_V03_20170726.docx Page 11 of 52
01-001 Setpoint room tempera-
ture
Current room set value (dependent on operation
selection/time program)
00-002 Actual heating circuit flow
temperature
Current temperature in the heating circuit
01-002 Setpoint heating circuit
flow temperature
Current flow temperature; is generated by control in
order to reach the set room temperature

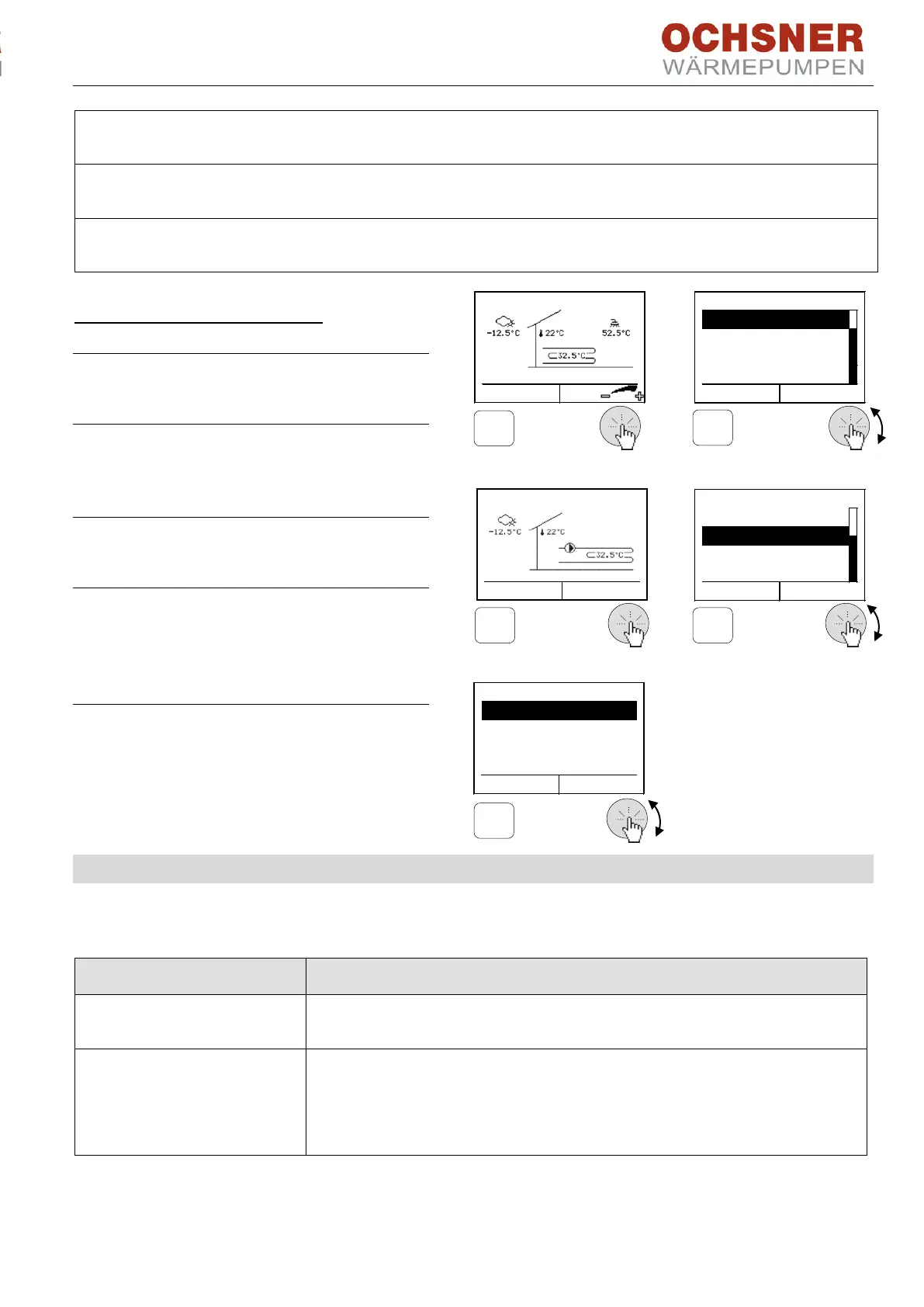

Example for heating circuit:
1. Press the adjustment knob in the main
display > the main menu appears
2. Select the desired menu by turning the
adjustment knob and confirm by pressing
the knob.
3. The temperature image for the selected
menu appears
4. The current values are displayed in the
temperature image
see temperature images; select the
menu by pressing the adjustment knob.
5. Select operational data or relay test in the
heating circuit menu by turning the ad-
justment knob and confirm by pressing >
call up data and return to main menu by
repeated pressing of the ESC knob.
5.6 Relay test
The output status can be seen in the relay test.
Output status Description
01-020 Heating circuit
pump
0: Heating circuit pump OFF
1: Heating circuit pump ON
01-021 Mixing valve
heating circuit
Mixer degree of operation:
-100% Mixer closed
0% both outputs (15, 16) mixers shut off
