44015503TH Rev. 1

15 /

Oki Data CONFIDENTIAL

1. CONFIGURATION

1.5.2 Network interface speciﬁcations

1.5.2.1 Network interface overview

Basic speciﬁcations

TCP/IP spec. Network layer

ARP, IP, ICMP, IPv6

Transport layer

TCP, UDP

Application layer

LPR, Port9100, FTP, HTTP, HTTPS, IPP, SNMPv1/v3, TELNET,

DHCP/BOOTP, DNS, DDNS, WINS, UPnP, Bonjour, SNTP, SMTP,

POP, Windows Rally (WSD Print, LLTD)

etBEUI: SMB, NetBIOS

NetWare: Remote printer mode (maximum eight print servers)

Print server mode (maximum eight ﬁle servers, 32 queues)

Support of encrypted passwords (in print server mode)

NetWare 6J/5J/4.1J (NDS, bindery)

SNMP

therTalk: ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP

IEEE 802.1X: EAP-TLS, PEAP

(2) Cable

Non-shield twisted-pair cable with RJ-45 connector (Category 5 recommended)

1.5.2.3 Network interface signals

Pin No. Signal name Direction Function

1 TXD+ FROM PRINTER Transmitting data +

2 TXD- FROM PRINTER Transmitting data -

3 RXD+ TO PRINTER Receiving data +

4 – − Not in use

5 − − Not in use

6 RXD- TO PRINTER Receiving data -

7 − − Not in use

8 − − Not in use

1 8

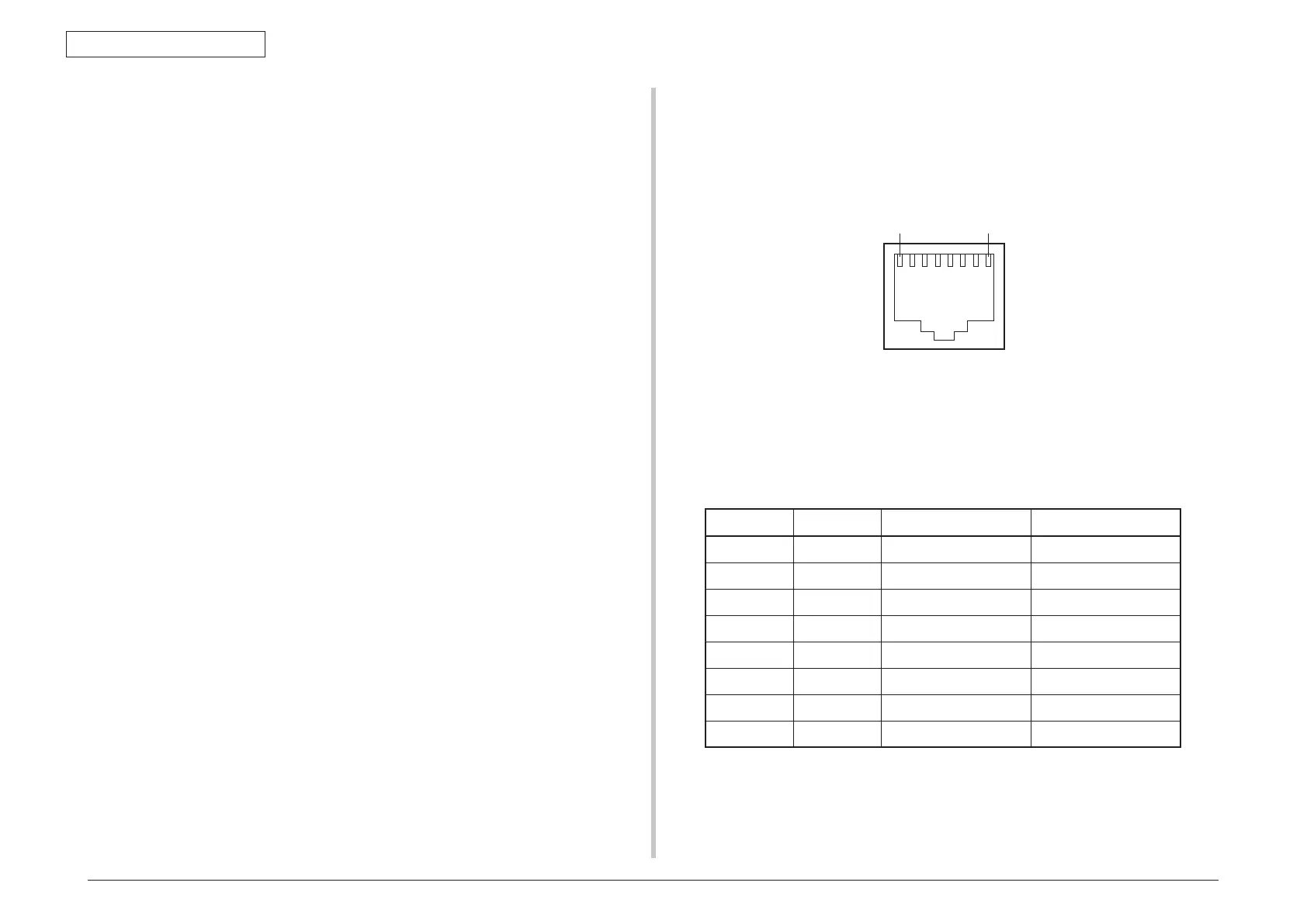

1.5.2.2 Connector and cable of network interface

(1) Connector

100BASE-TX/10 BASE-T (automatically switched, not usable simultaneously)

Connector pins arrangement
