44015503TH Rev. 1
73 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS
Print engine
controller PCB
RFID
CUIF
DCHEAT
RELAY
HVOLT
FSNS
PE
SSNS
DCID
OPE
POWER
BELT
OPTION
POWFAN
HSOL
FSNSOL
HOPIDUP
SIZE

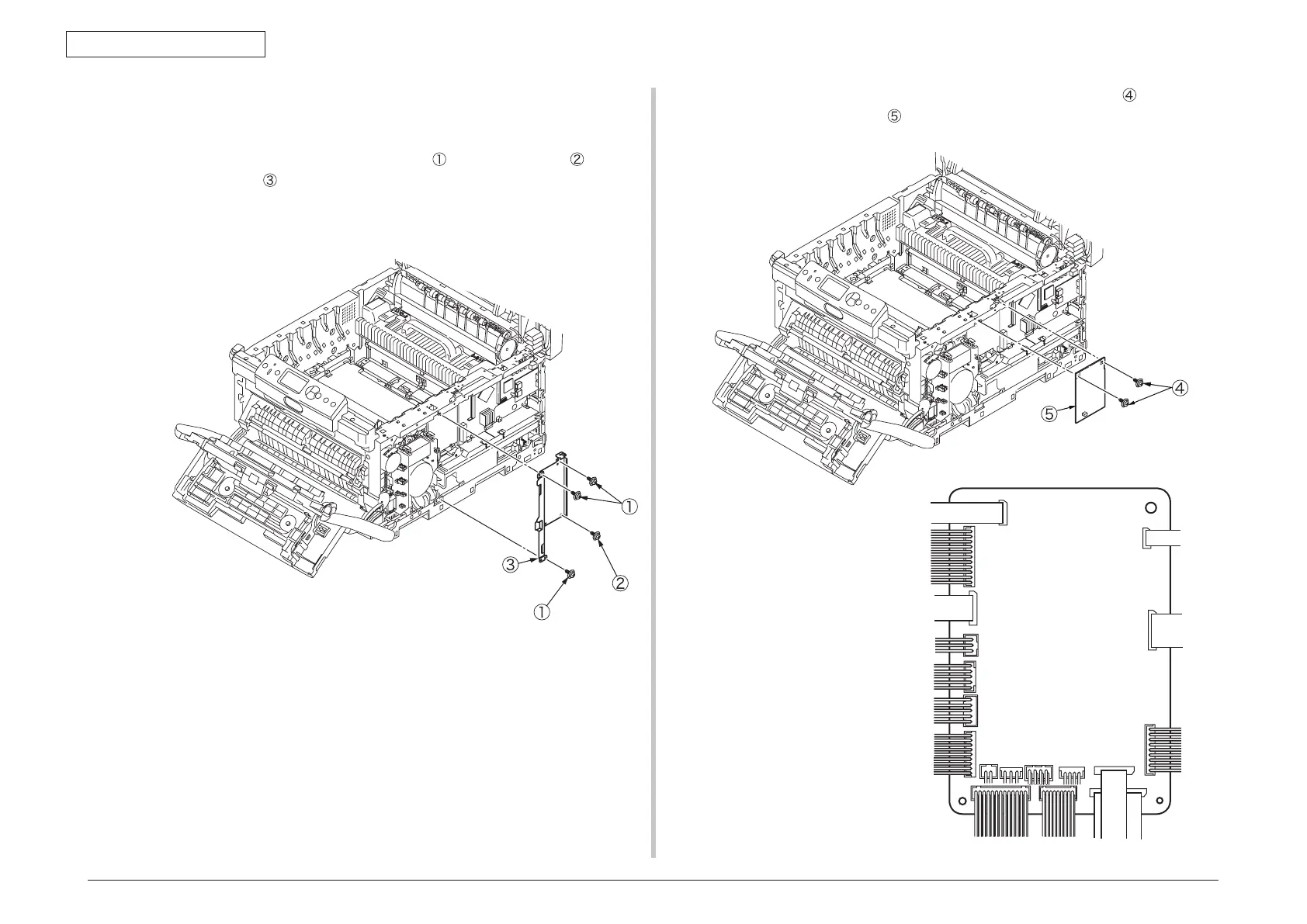

4.2.8 Print engine controller PCB
(1) Remove the plate shield Assy. (see section 4.2.7, (1) through (3)).
(2) Remove the three screws (silver-colored)
, the crew (black) and the
reinforcement plate (tool number 1).
(3) Remove the all the connectors and the two screws (silver-colored)
to detach the
print engine controller PCB (tool number 1).
To Next Page
