4. REPLACEMENT OF PARTS
4.2.20 Belt motor Assy. and fuser motor Assy.

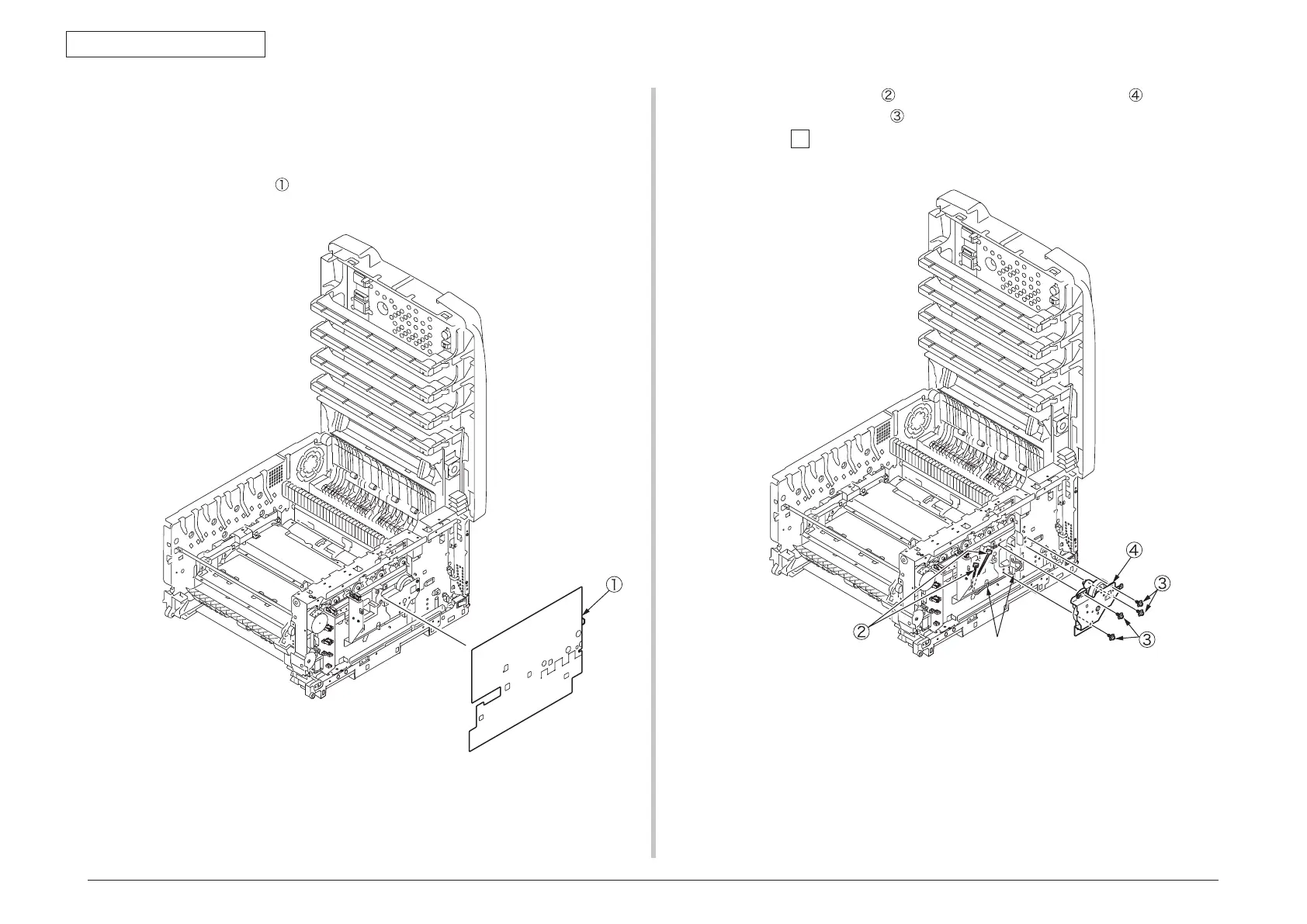

(1) Remove the main control PCB, print engine roller PCB (see sections 4.2.7 and 4.2.8).
(2) Remove the low-voltage power supply (see section 4.2.19, (7)).
(3) Remove the insulator
.
(4) Unclamp the two cables
and, to detach the belt motor Assy. remove the
four screws (silver-colored) of which brackets are marked with a number 2 in a
rectangle (
2
).
