4. REPLACEMENT OF PARTS
4.2.9 Top cover Assy.
(1) Remove the left side cover (see section 4.2.3).
(2) Remove the right side cover (see section 4.2.4).
(3) Remove the rear cover Assy. (see section 4.2.5).
(4) Remove the plate Assy. shield (see section 4.2.6).

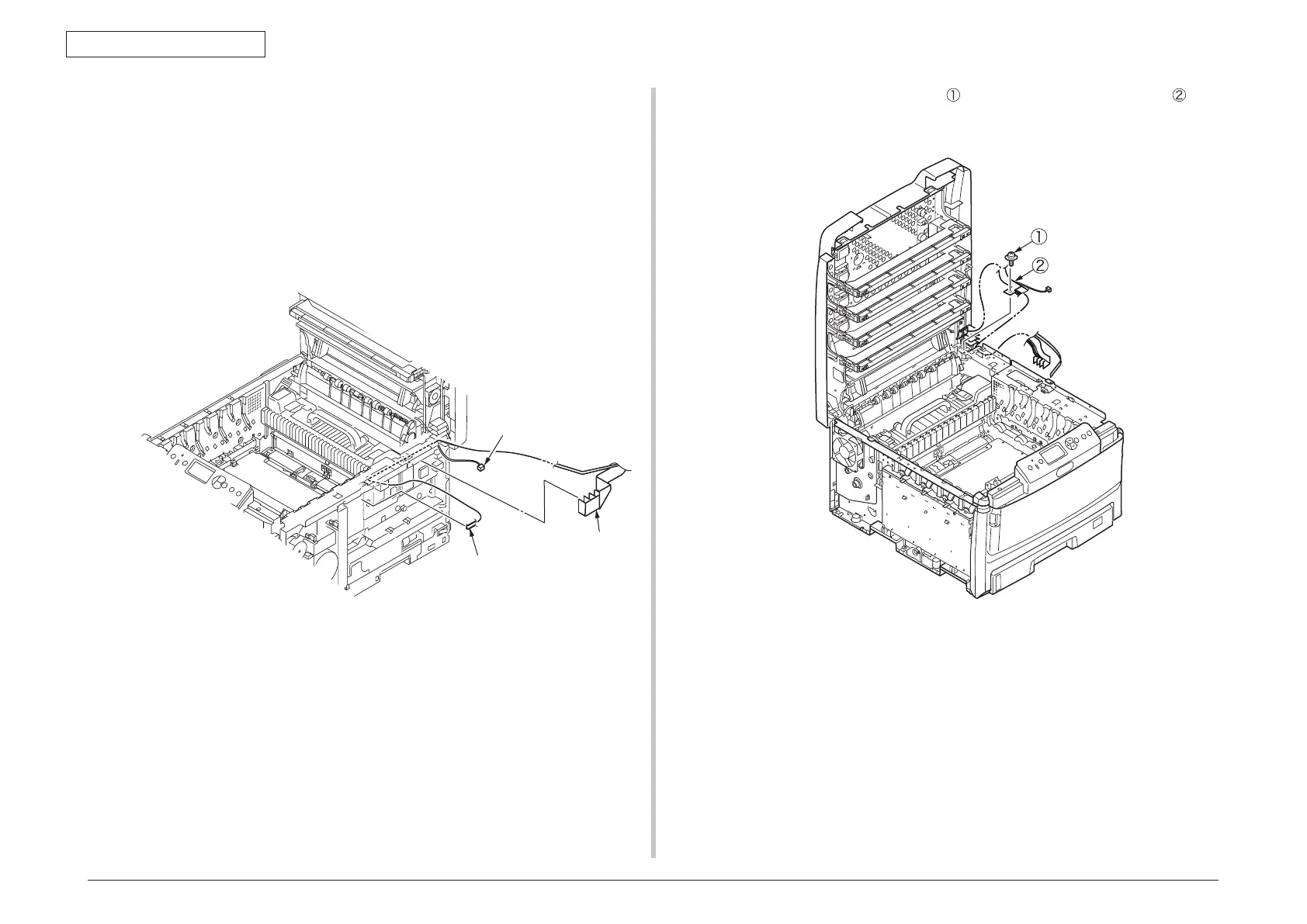

(5) Remove the four FFC cables, the RFID FFC cable and the fan connector.
(6) Remove the screw (silver-colored)
and the cable Assy.-LED heads (tool
number 1).
FFC cables
Fan connector
RFID FFC cable
