44015503TH Rev. 1
78 /
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS
4.2.11 Operator panel Assy.

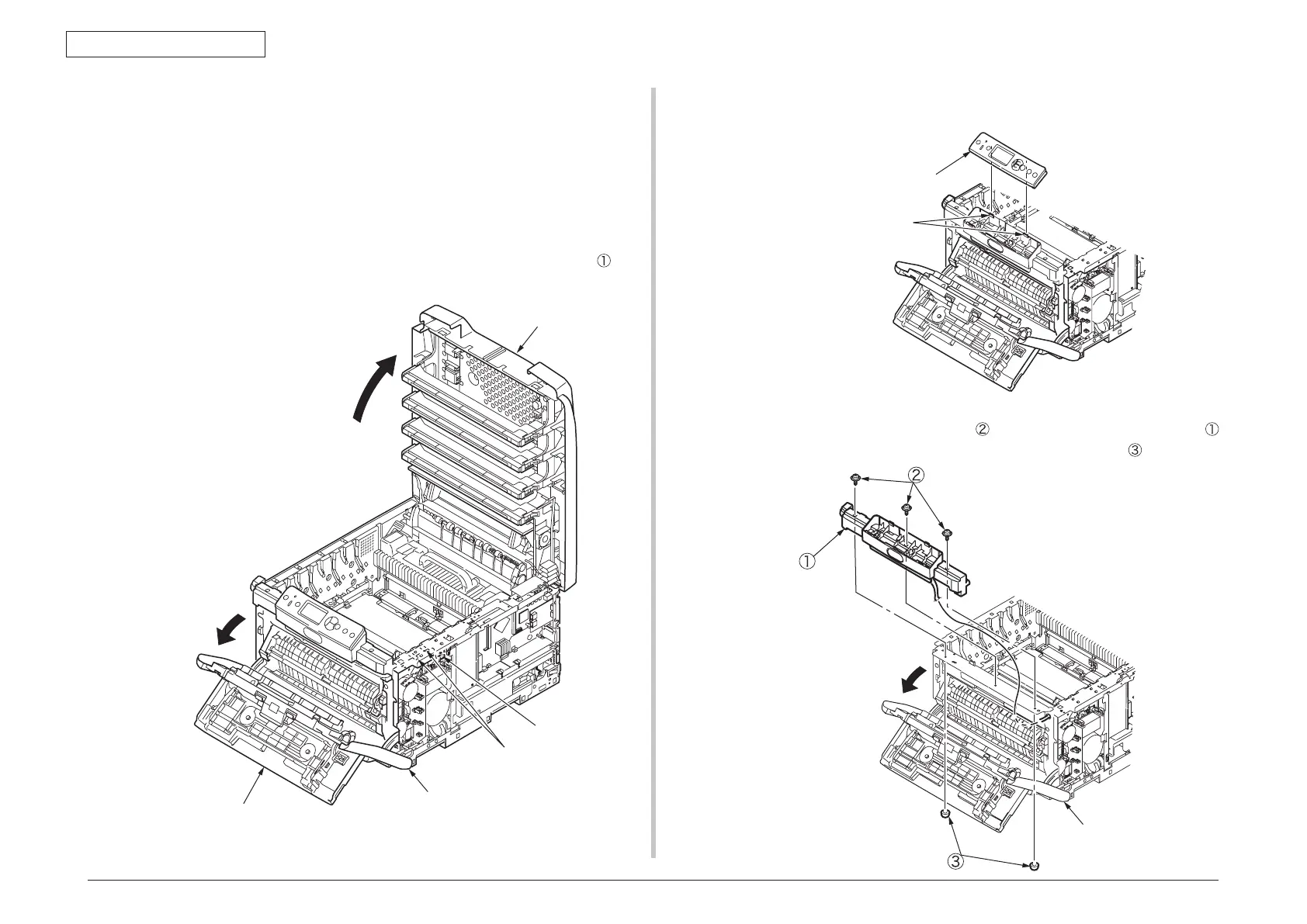

(1) Open the top cover.
(2) Open the multi-purpose tray.
(3) Open the front cover.
(4) Remove the left and right side covers (see sections 4.2.3 and 4.2.4).
(5) Remove the plate shield Assy. (see section 4.2.7, (2)).
(6) Detach and unclamp (at the two points) the FFC of the operator panel Assy.
.
(7) Unlatch the operator panel cover Assy. at the two points A to remove it and, at the
same angle as shown left below, remove the operator panel cover.
Top cover
Front cover
Multi-purpose tray
Clamp
FFC
Operator panel cover Assy.
Unlatched points A
(8) Remove the three screws (silver-colored) to detach the operator panel Assy.
(tool number 1). Be careful about a potential drop of the (black) cap .
To Next Page
