Oki Data CONFIDENTIAL

44043511TH Rev.2

124 /

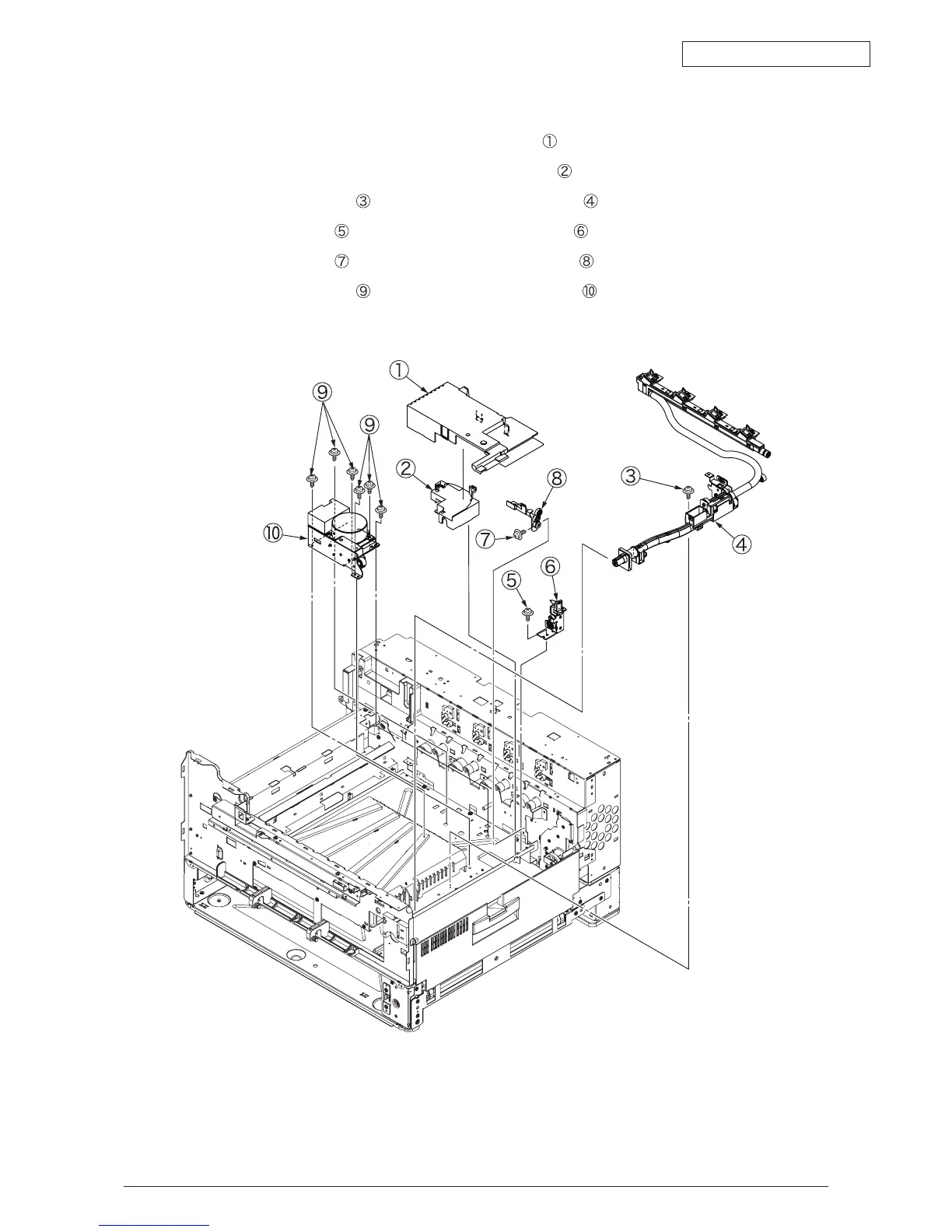

4.3.14 Duct Assy

(1) Remove the hinge, then remove Cover-Middle

(2) Remove the hinge, then remove Guide Tube (L)

(3) Unscrew 2 screws

, then remove Duct-Assy-Toner .

(4) Unscrew screw

, then remove Gear-Duct-B-Assy .

(5) Unscrew screw

, then remove Gear-Duct-ID Assy .

(6) Unscrew 6 screws

, then remove Duct-Drive-Assy .
