7.5.3 Troubleshooting With Abnormal Image

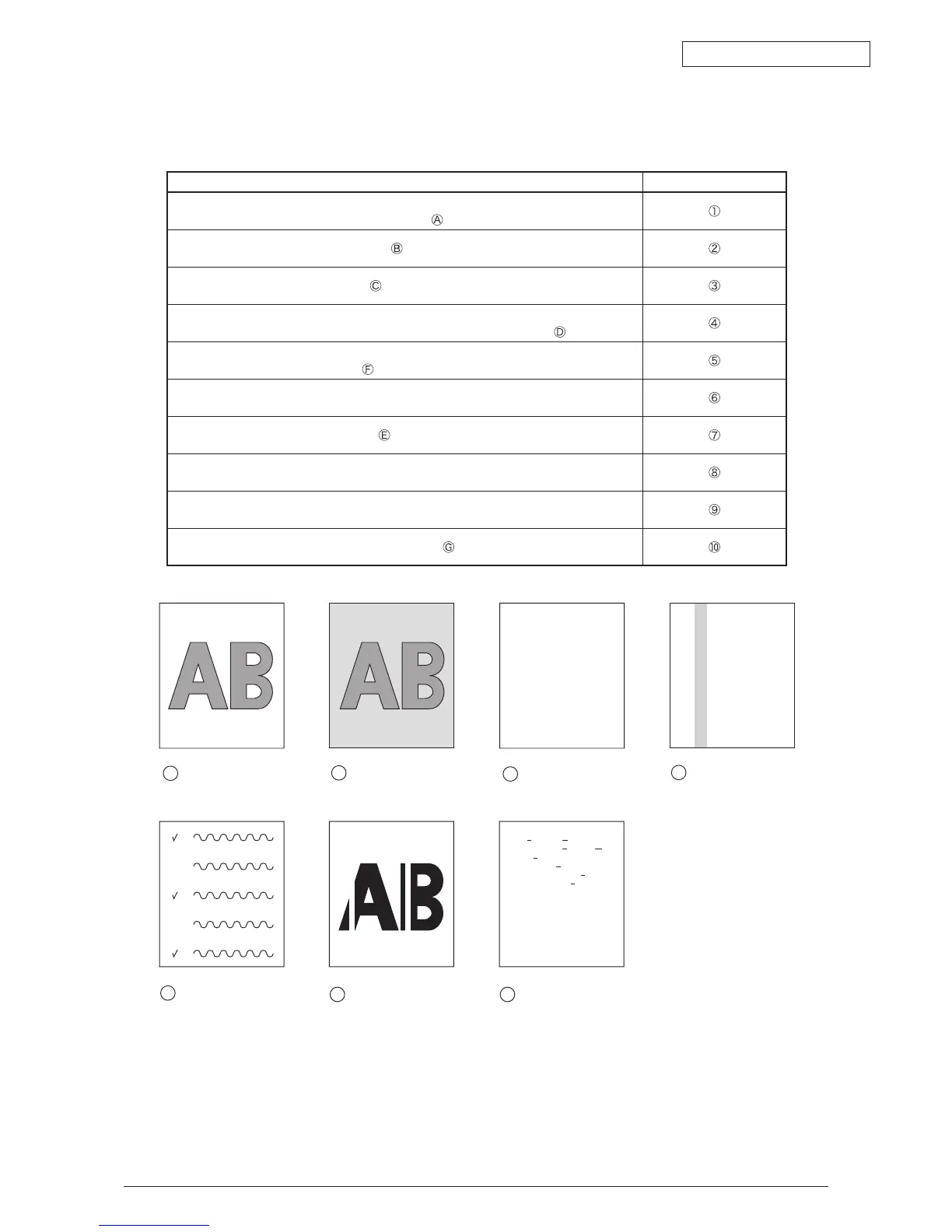

Troubleshooting with printout results that are irregular as shown in the diagrams below, are indicated.
Figure 7-2
Abnormal Image Flow Chart No.
The overall image is too light or uneven, or the color tone is off centered, on the
overall, while printing the image. (Figure 7-2 )
The white area gets dirty. (Figure 7-2 )
Blank sheet is output. (Figure 7-2 )
A band or stripe print appears in the vertical direction of the printout.
(Black Band, Color Band, Black Stripe, Color Stripe). (Figure 7-2 )
A white band, white stripe, uneven color band or uneven color stripe occurs in
the vertical direction.(Figure 7-2 )
Defective Fusion (the image smears or peels off when touched).
Periodicity Abnormality (Figure 7-2 )
Printout Falloff
Color Offset
Stripe in Horizontal Print Direction (Figure 7-2 )
To Next Page
