Oki Data CONFIDENTIAL
44043511TH Rev.2
228 /
8. CONNECTION DIAGRAM

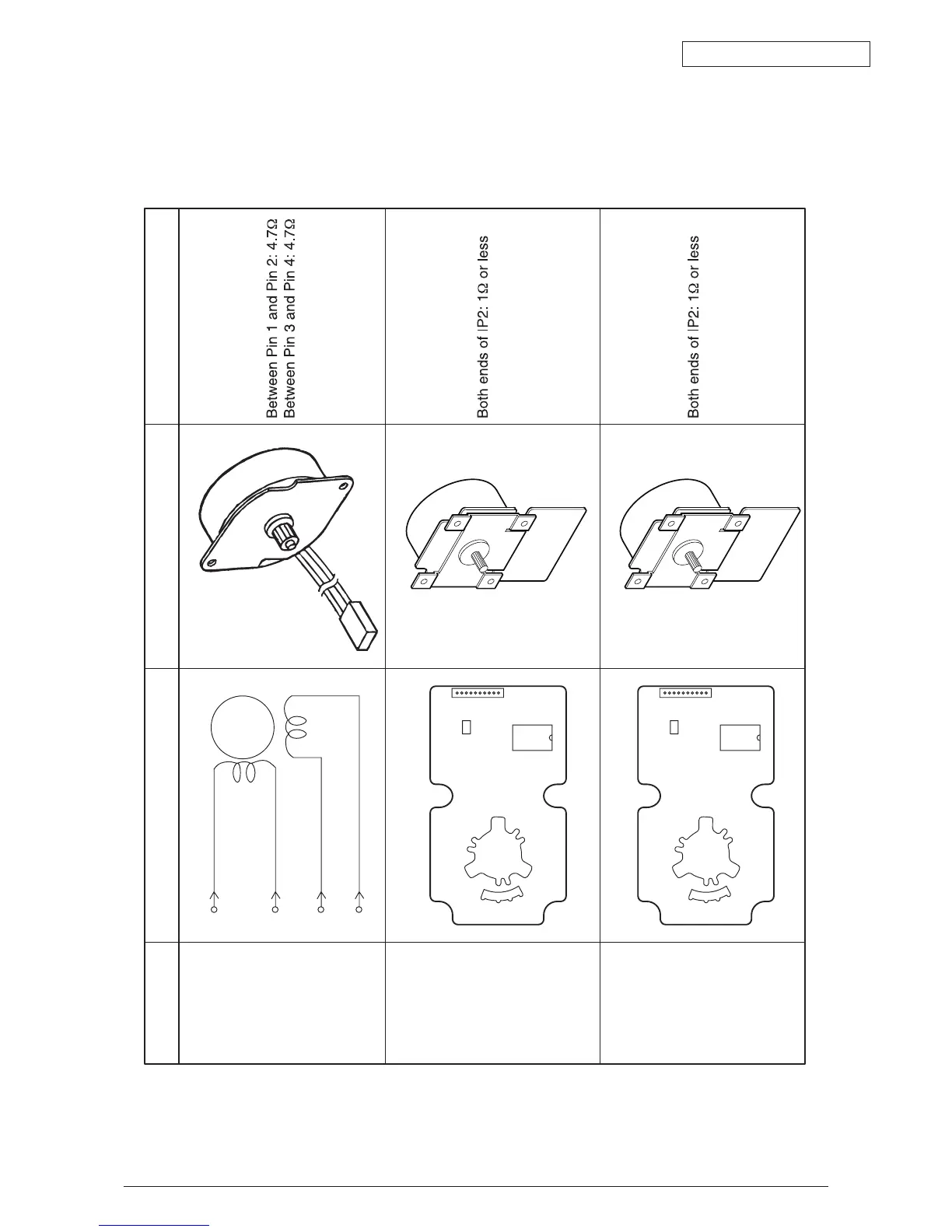

8.1 Check Resistance Value
Conveyance
Belt Motor
Main Motor (Y)
Main Motor (M)
Yellow
Orange
Black
Brown
M
1
2
3
4
Unit Circuit Diagram and Configuration Parts Diagram Resistance Value
IC1
IP2
IC1
IP2
