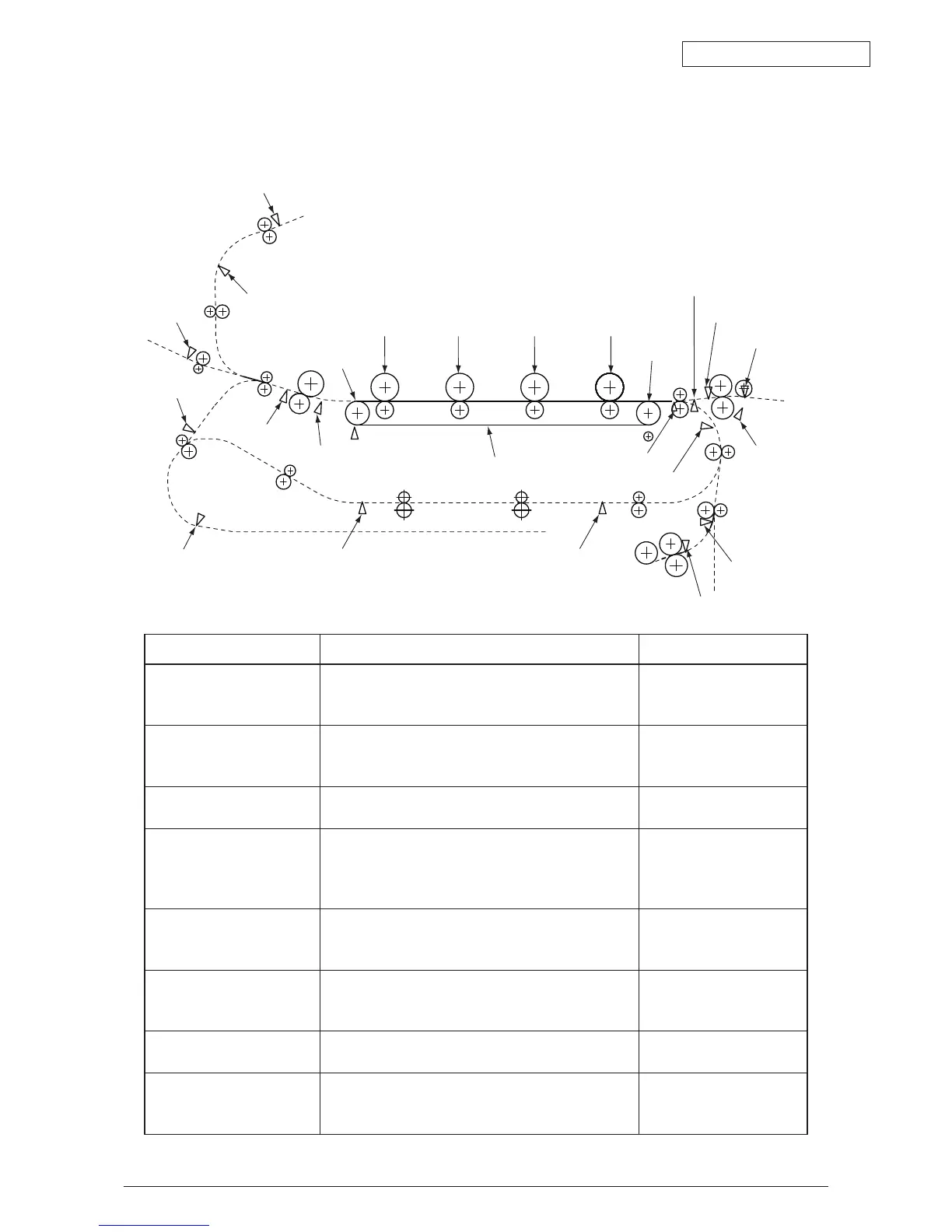

Sensor Function State of Sensor
MPT Hopping Sensor
Paper Hopping Sensor
This detects the top of the paper entering and then
determines the timing to switch from the hopping to
the conveyor.
L
H
: Paper Available
: Paper Unavailable
IN2 Sensor Detects the leading edge of transferred paper.
Determines the paper length from the time when the
trailing edge turns off the sensor.
L
H
: Paper Available
: Paper Unavailable
Paper Discharge Sensor
(Exit sensor)
This detects the tip and end of the paper, then
determines paper discharge.
L
H
: Paper Available
: Paper Unavailable
Double-Side Print
Entrance Sensor
(Dup-in1 sensor)
This determines the tip of the paper entering the
double-side printer unit, then determines the times
it takes for the inverse roller to inverse from CCW to
CW.
H
L
: Paper Available
: Paper Unavailable
Double-Side Print
Rear Sensor
(Dup R sensor)
This detects the tip of the paper after inversion by
the double-side printer unit.
H
L
: Paper Available
: Paper Unavailable
Double-Side Print
Front Sensor
(Dup F sensor)
Detects the leading edge of paper reversed by the
Duplex Unit. Determines whether to feed paper
again.
H
L
: Paper Available
: Paper Unavailable
Stack Full FD Sensor
Stack Full FU Sensor
Detects Stacker full. H
L
: Stack Full
: Stack Empty
Job off Sensor This detects paper conveyance to the paper
discharge roller, then determines the timing to offset
job operations.
H
L
: Paper Available
: Paper Unavailable
