5.0.1 ID Check Pattern Print (“TEST PRINT MENU” Item)

This pattern can be used to investigate the cause (plain identiﬁcation of problem or check cycle

of problem) resulting from the ID or LED head. CMYK are each composed of a 20% duty pattern.

(printing 2 sheets)

Test pattern printing procedure

1. Choose the "Maintenance Print Menu" in the System Maintenance Menu and

then choose "Enable." Reboot the printer.

2. Press "Menu

" button once to display "Function Menu" and choose "Print

Information" and then "ID Check Pattern."

• Vertical Black/White Lines (Vertical Black/White Lines)

• Vertical Black/White Band (Vertical Black/White Band)

• Horizontal Black/White Lines (Horitzontal Black/White Lines)

• Horizontal Black/White Band (Horitzontal Black/White Band)

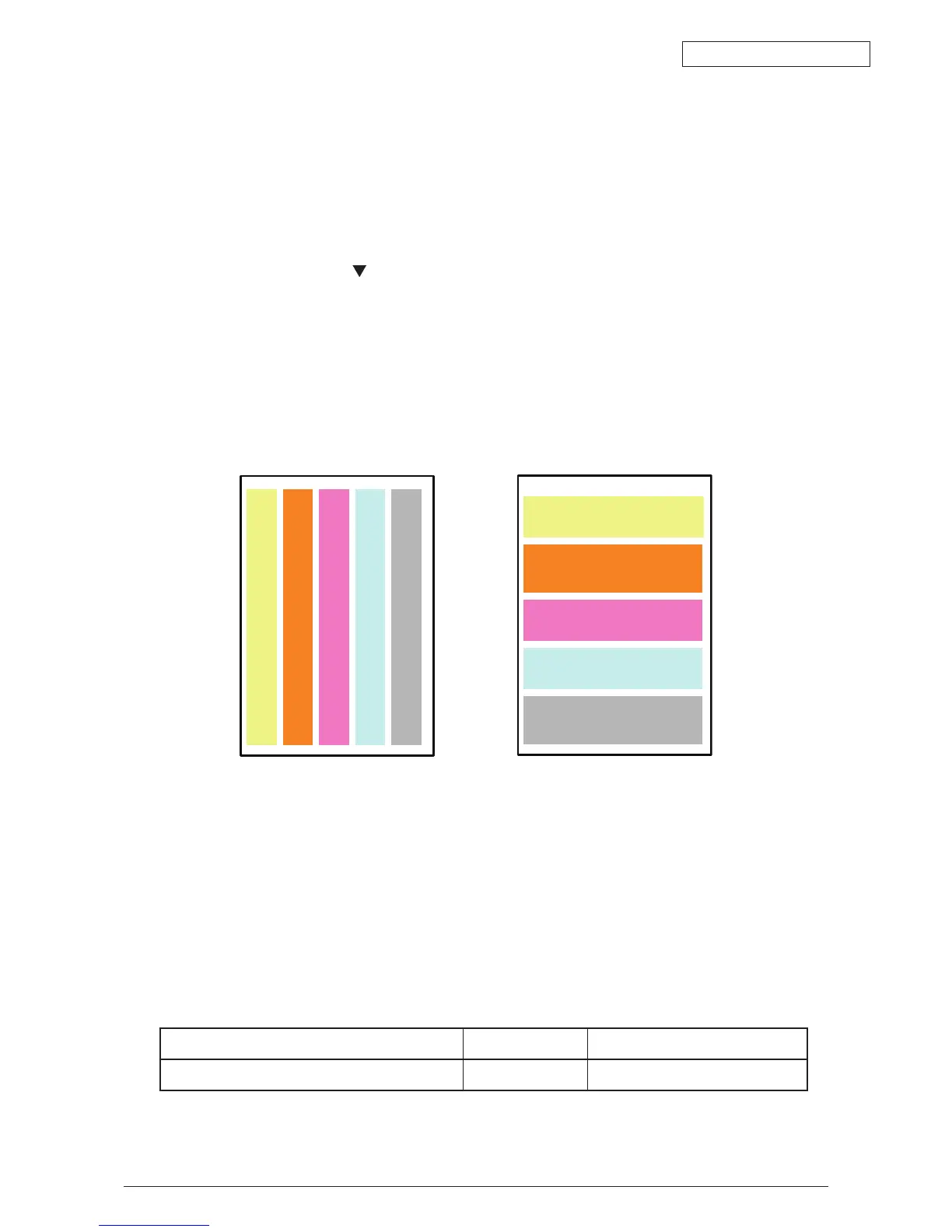

Print pattern (Print Pattern):

Page.1 Page.2

5.0.2 Maintenance Utility

Using the Maintenance Utility, the adjustments shown in Table 5-0-2 are made.

For details on the Maintenance Utility, see below.

(1) Maintenance Utility Operations Manual: 42678801FU01 Rev. 22 or later (Japanese)

42678801FU02 Rev. 22 or later (English)

(2) The Maintenance Utility programs are available as below.

* The programs are downloaded from the FTP server for manuals.

(The server is accessible to people in charge of Windows and manuals.)

Applicable OS Filename Product code

Win9x/Me/NT/2000/XP (Japanese/English) MuWin.zip 42678801FW02 Rev. 17 or later

M+Y M C K

M+Y
