Page: 83

Service Guide ML520/521

Chapter 3 Maintenance & Disassembly

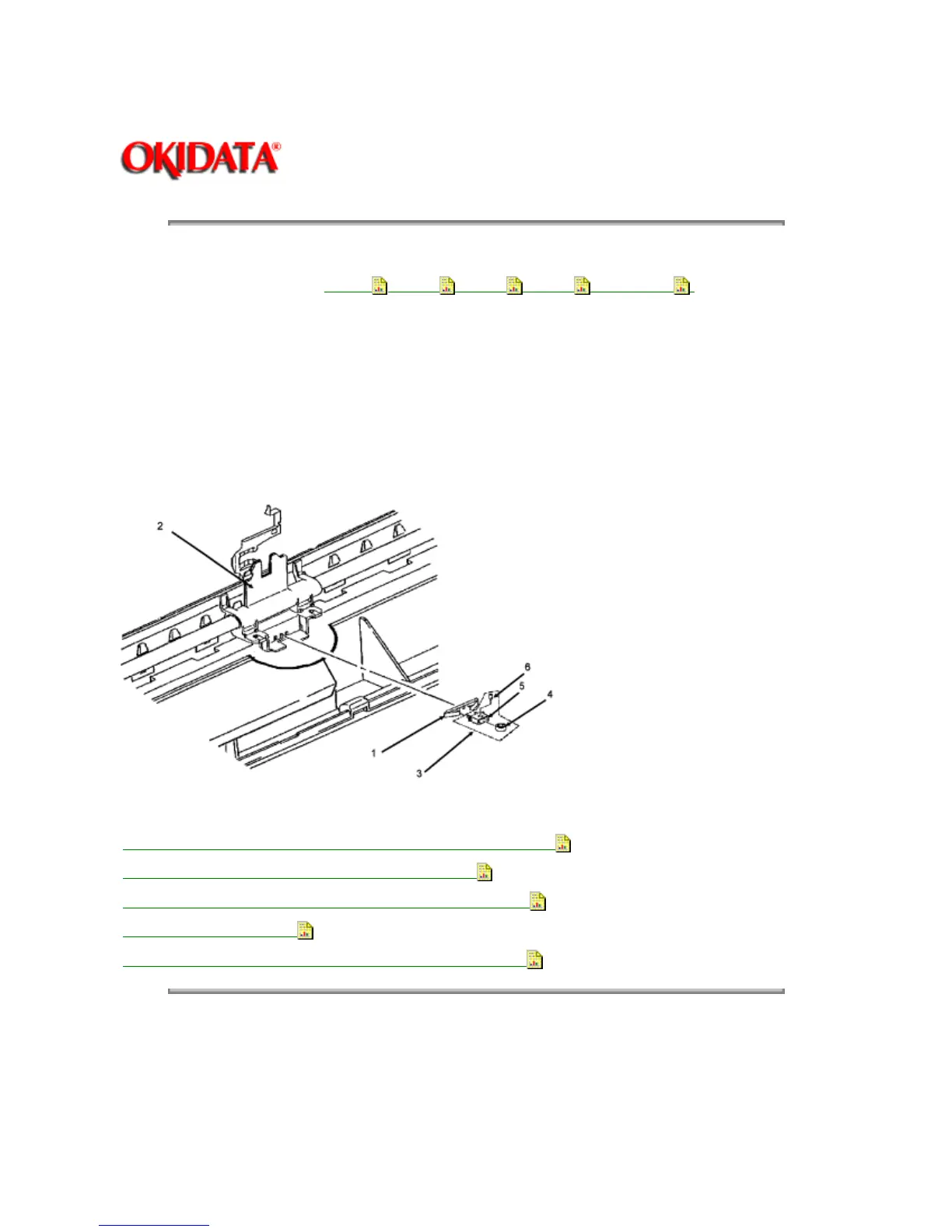

3.2.14 Roller/Holder Backup Assembly

1. Perform these procedures:

3.2.01

, 3.2.02 , 3.2.04 , 3.2.10 , and 3.2.11 .

2. Use a small straight slot screwdriver to disengage the claws of the backup roller holder spring (1) from

the carriage frame (2).

3. Remove the roller/holder backup assembly (3).

NOTE:

The roller/holder backup assembly includes the backup roller (4), the backup roller holder (5), and the

pin (6).

P/N 53343201 Assembly: Roller/Holder Backup Both B.2.07

P/N 53341701 Roller: Back Up RSPL Both B.2.07

P/N 53341801 Holder: Back Up Roller RSPL Both B.2.07

P/N N/A Pin Both B.2.07

P/N 50925001 Backup Roller Holder Spring Both B.2.07

Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
