Page: 71
Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.02 Printhead Assembly
1.
Perform this procedure: 3.2.01.

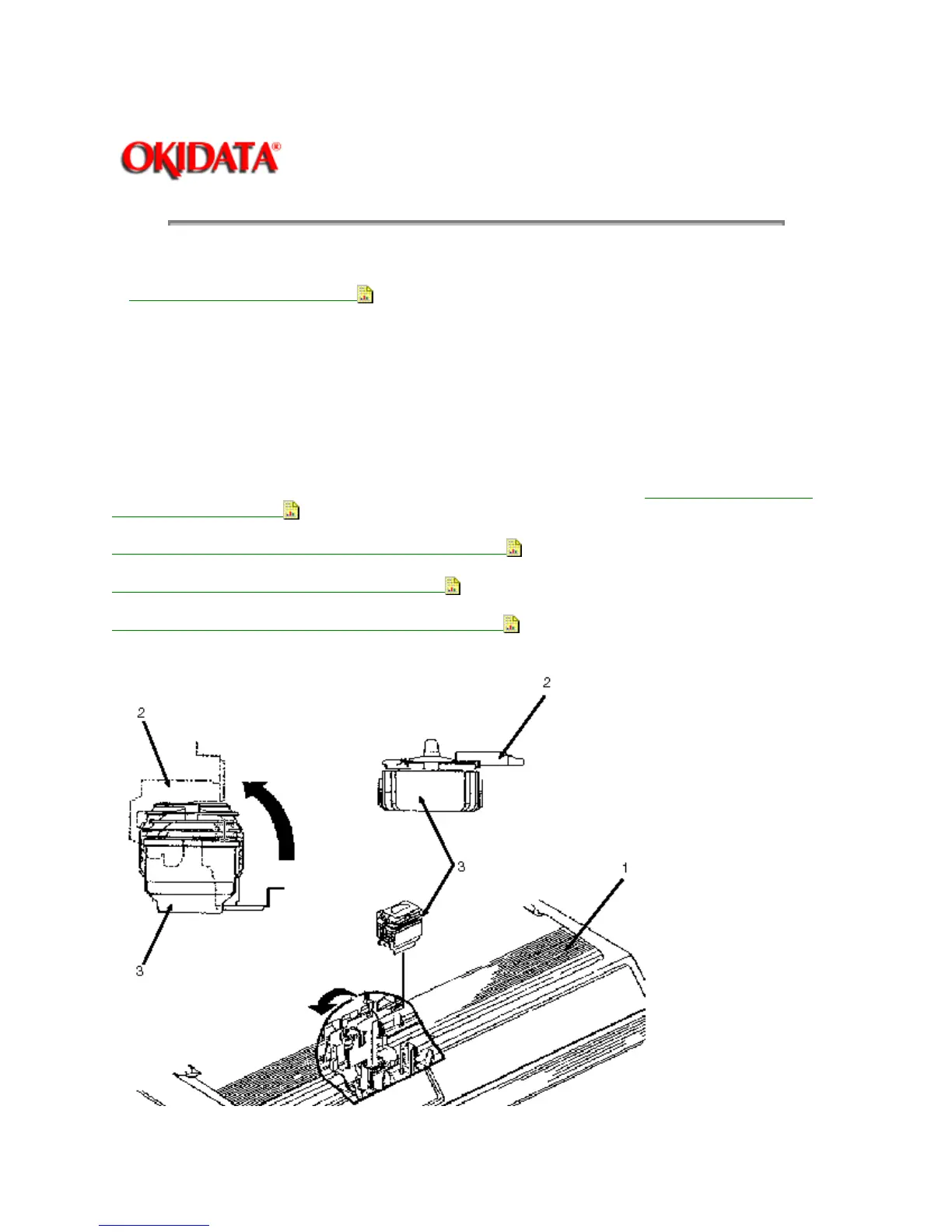

2. Open the access cover (1).
3. Lift and remove the ribbon. (
Not shown
)
4. Pull the head clamp (2) towards the right and then rotate it up to release the printhead (3).
5. Pull the printhead straight up to remove it.
NOTE:
Installation
After installing the printhead, check the printhead gap adjustment.
Refer to Section 3.3 of
this Service Handbook.
P/N 52107001 Ribbon: Black Consumable Both B.2.10
P/N 50707401 Clamp: Head RSPL Both B.2.07
P/N 50099501 Assembly: Printhead RSPL Both B.2.03
