Page: 95
Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.26 Leaf Spring
1. Perform these procedures:
3.2.01
, 3.2.06 , 3.2.07 , 3.2.16 , and 3.2.25 .

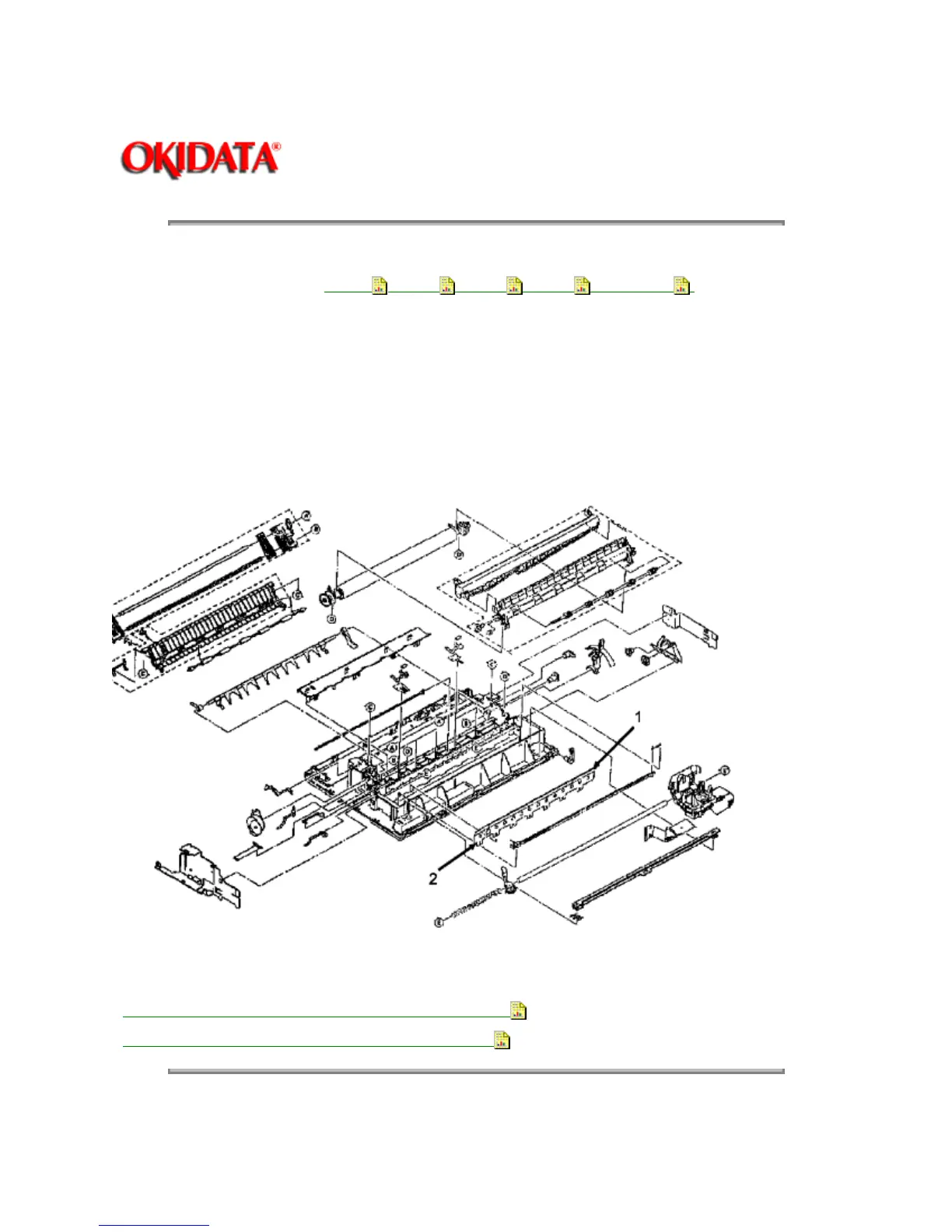

2. Position the unit so you can access the top and bottom of the leaf spring (1).
3. Start at one end of the spring.
4. Use a straight slot screwdriver to release the bottom extension (2) from the claw of the base frame.
5. Pull the spring up to release the top of the spring from the upper claw.
6. Repeat the above two steps, working towards the opposite end of the spring.
7. Remove the spring.
P/N 50923001 Spring: Leaf (Narrow) RSPL 520 B.2.04
P/N 50923101 Spring: Leaf (Wide) RSPL 521 B.2.04
Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business
