Page: 96
Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.27 Bottom Paper Sensor Levers
1. Perform these procedures:
3.2.01
, 3.2.06 , 3.2.07 , 3.2.16 , 3.2.17 , 3.2.19 , 3.2.20 ,
3.2.22 , 3.2.23 , and 3.2.24 .

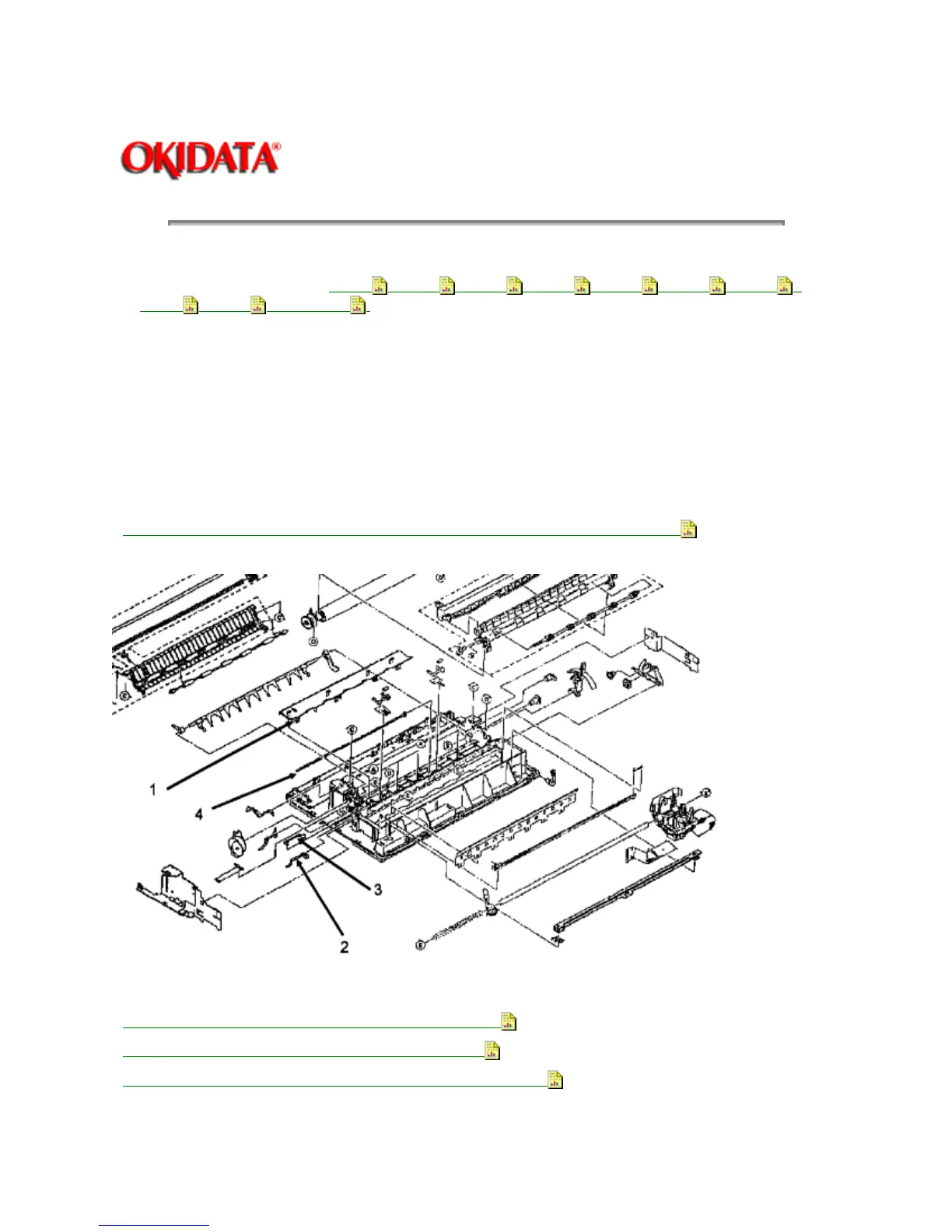

2. Working from the underside of the unit, release the claws of the paper pan (1). When you release a
claw, push on the claw to move the paper pan away from the main frame.
3. Remove the pan.
4. Rotate the bottom sensor lever (2) until the flag is at the top. Then, lift the lever and work it free of the
frame to remove it. This lever has a box end.
5. Remove the bottom paper end lever (3).
6. Work the front release gear shaft (4) free of the tabs and remove it.
NOTE:
Lubrication When lubricating, refer to Section 3.5 of this Service Handbook.
P/N 50097301 Pan: Paper (Narrow) RSPL 520 B.2.06
P/N 50097401 Pan: Paper (Wide) RSPL 521 B.2.06
P/N 50804601 Lever: Bottom Paper End RSPL Both B.2.04
