Service Guide ML520/521
Chapter 3 Maintenance & Disassembly
3.2.17 Right Ground Plate
1. Perform these procedures:
3.2.01
, and 3.2.06 .

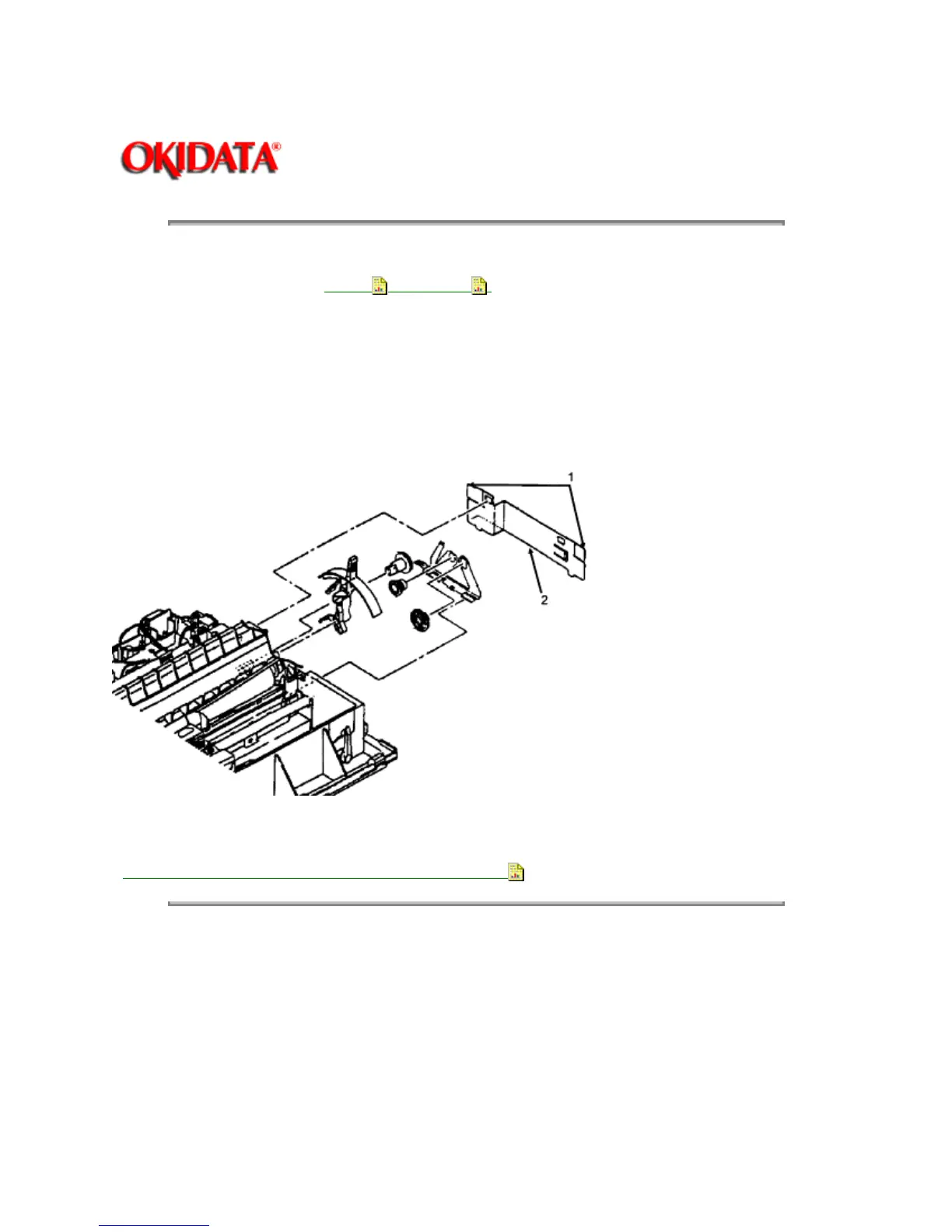

2. Pull the top tabs (1) of the right ground plate (2) out to free the plate from the claws of the base frame.
You may have to use a screwdriver to work the plate tabs free.
3. Lift the plate and remove it.
NOTE:
Installation
The plate must be securely seated under the claws.
P/N 51010201 Plate: Right Ground RSPL Both B.2.05
