Page: 177
Service Guide ML520/521
Chapter B Illustrated Parts Listing

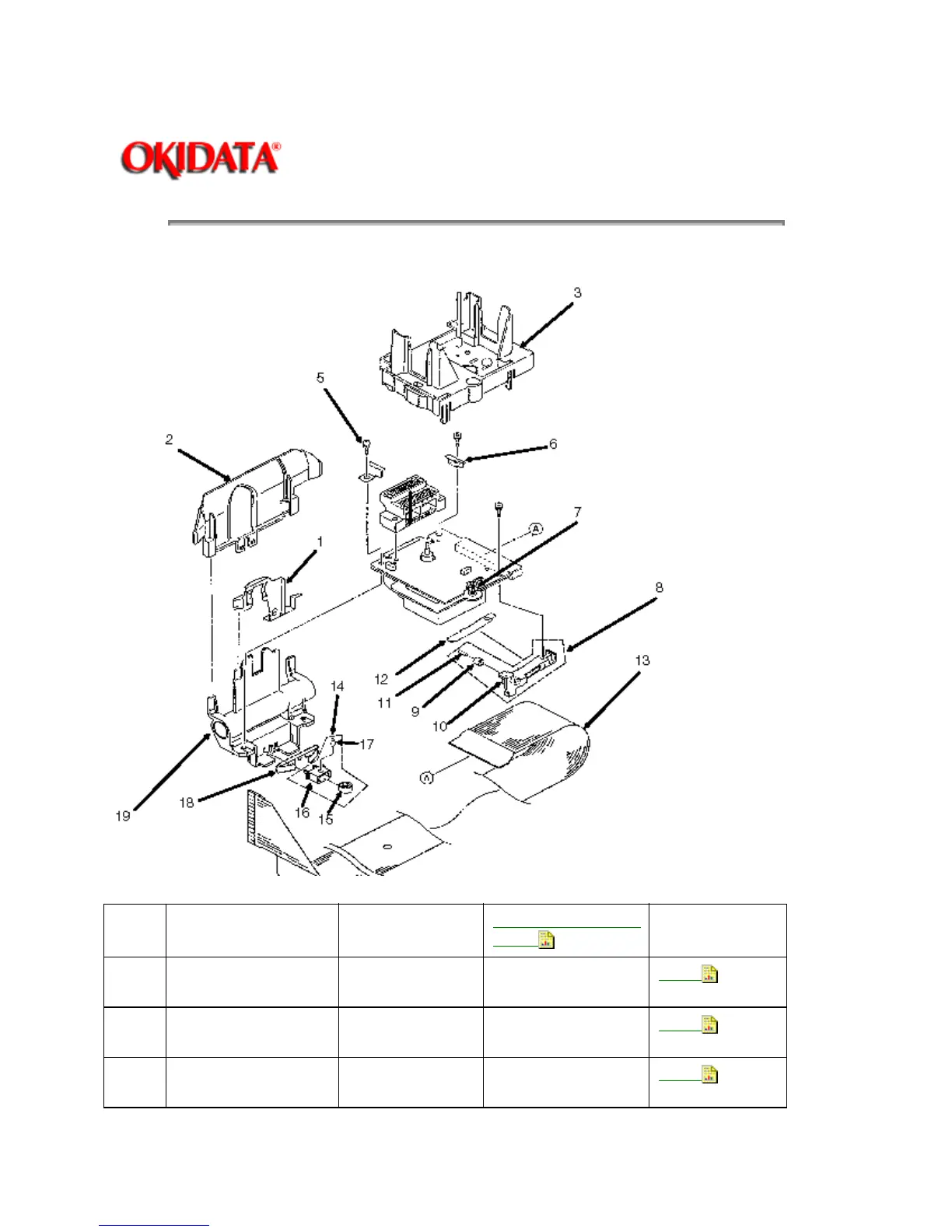

B.2.07 Carriage Assembly
Item Okidata P/N Oki-J
P/N
Description Comments
Refer to
B.1.02
Disassembly
Procedure
1 50707401
3PP4025-3431P1
Clamp: Head RSPL Both
3.2.02
2 53562801
3PP4025-3430P1
Protector: Ribbon RSPL Both
3.2.03
3 51228501
3PA4025-3406G1
Gear: Case
(Assembly)
RSPL Both
3.2.04
