9 Setting Up
Slave T
erminals
9 - 30
NX-series EtherNet/IP Coupler Unit U
ser’s Manual (W536)
4
Right-click the target EtherNet/
IP Coupler Unit and s
elect
Coupler Connection (USB)
−
Com-
pare
from the pop-up menu.

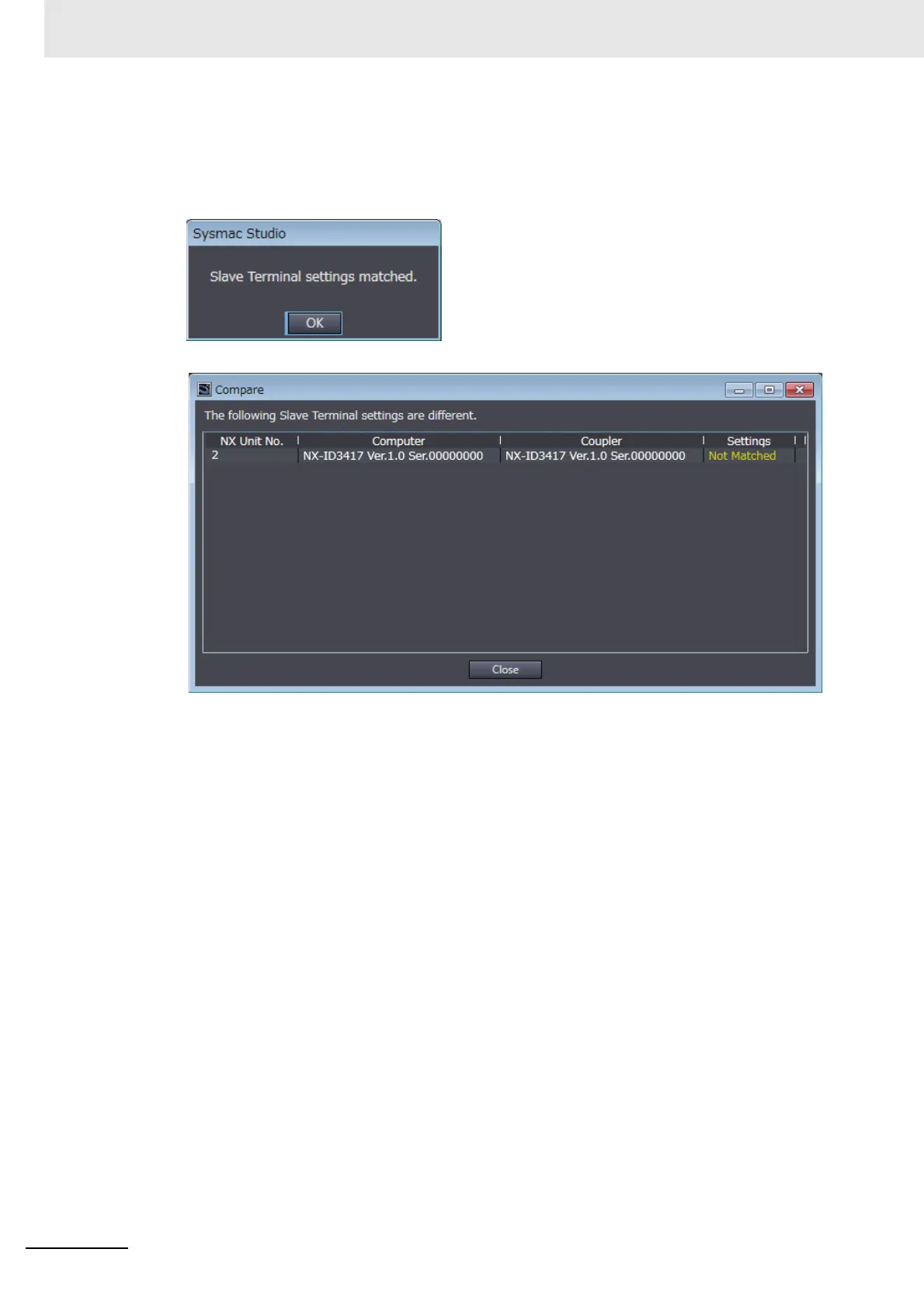

The results of the comparison are displa
yed as shown below
.
When the Settings Are the Same:
When the Settings Are Differe
nt:
203
205
