Advanced Function Setting Level Section 5-6
5-6 Advanced Function Setting Level
This permits the maximum use of the E5AZ/E5EZ's functions. In the "Initial
Setting Level" enter the password ("
−169") to switch to this level. When enter-
ing password, "initial setting/communications protect" setting value must be
set to "0".
• When the set value for "Initial setting/communications protect" is "0", the
parameter in the level can be used.
• Press the key to switch between different set levels.
• Press the or key to change the set value.

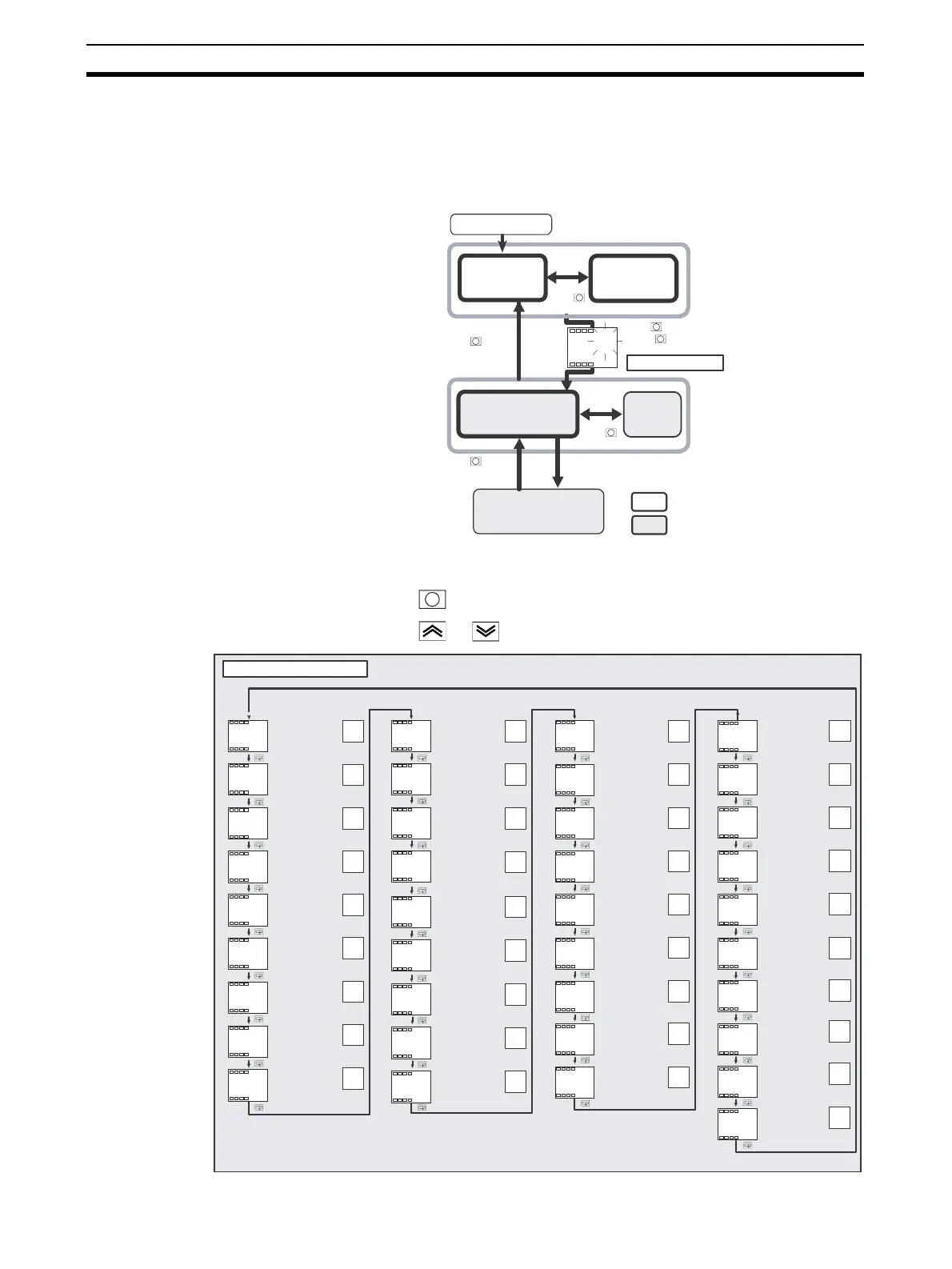

Control in
progress
Control
stopped
Power ON
Adjustment
Level
Control stops
Press
key less than 1 second.
Press 1
second or longer.
Press 3 seconds or longer.
Press key first
display flicker.
Press
key less than 1 second.
Set value for password input “−169”.
Operation
Level
Advanced Function
Setting Level
Initial Setting Level
Communi-
cations
Setting
Level
Press 1
second or longer.
25
100
C
Advanced Function Setting Level
Parameter
Initialization
Number of
Multi-SP
Uses
Multi SP
uses
SP ramp set
value
Standby
sequence
reset
Alarm 1 open
in alarm
HB ON/OFF
Heater
burnout latch
ST stable
range
MV upper
limit
Input digital
filter
Additional
PV display
Manipulated
variable
display
Automatic
display
return time
Alarm 1
latch
Alarm 2
latch
Move to
protect level
time
Input error
output
Cold junction
compensation
method
MB
command
logic switching
Alarm 1 ON
delay
Alpha
Page
Event input
assignment
1
Event input
assignment
2
Alarm 1
hysteresis
Page
Alarm 2 open
in alarm
Alarm 2
hysteresis
Alarm 3 open
in alarm
Alarm 3
hysteresis
Heater
burnout
hysteresis
Page
MV lower
limit
Alarm 3
latch
Page
Alarm 2 ON
delay
Alarm 3 ON
delay
Alarm 1 OFF
delay
Alarm 2 OFF
delay
Alarm 3 OFF
delay
init
off
eV-m
1
eV-1
none
eV-2
stop
mspu
off
sprt
off
rest
a
al1n
n-o
alh1
0.2
al2n
n-o
ol-h
105.0
ol-l
-50
inf
0.0
pVad
off
o-dp
off
ret
off
a1lt
off
a2lt
off
a3lt
off
prlt
3
sero
off
cjc
on
rlrV
off
a1on
0
a2on
0
a3on
0
a1of
0
a2of
0
a3of
0
alh2
0.2
al3n
n-o
alh3
0.2
hbu
on
hbl
off
hbh
0.1
st-b
15.0
alfa
0.65
105
105
106
106
107
107
108
109
109
110
110
112
112
112
113
113
114
114
115
115
116
116
117
117
117
118
118
119
119
119
119
119
111
111
117
119
119
