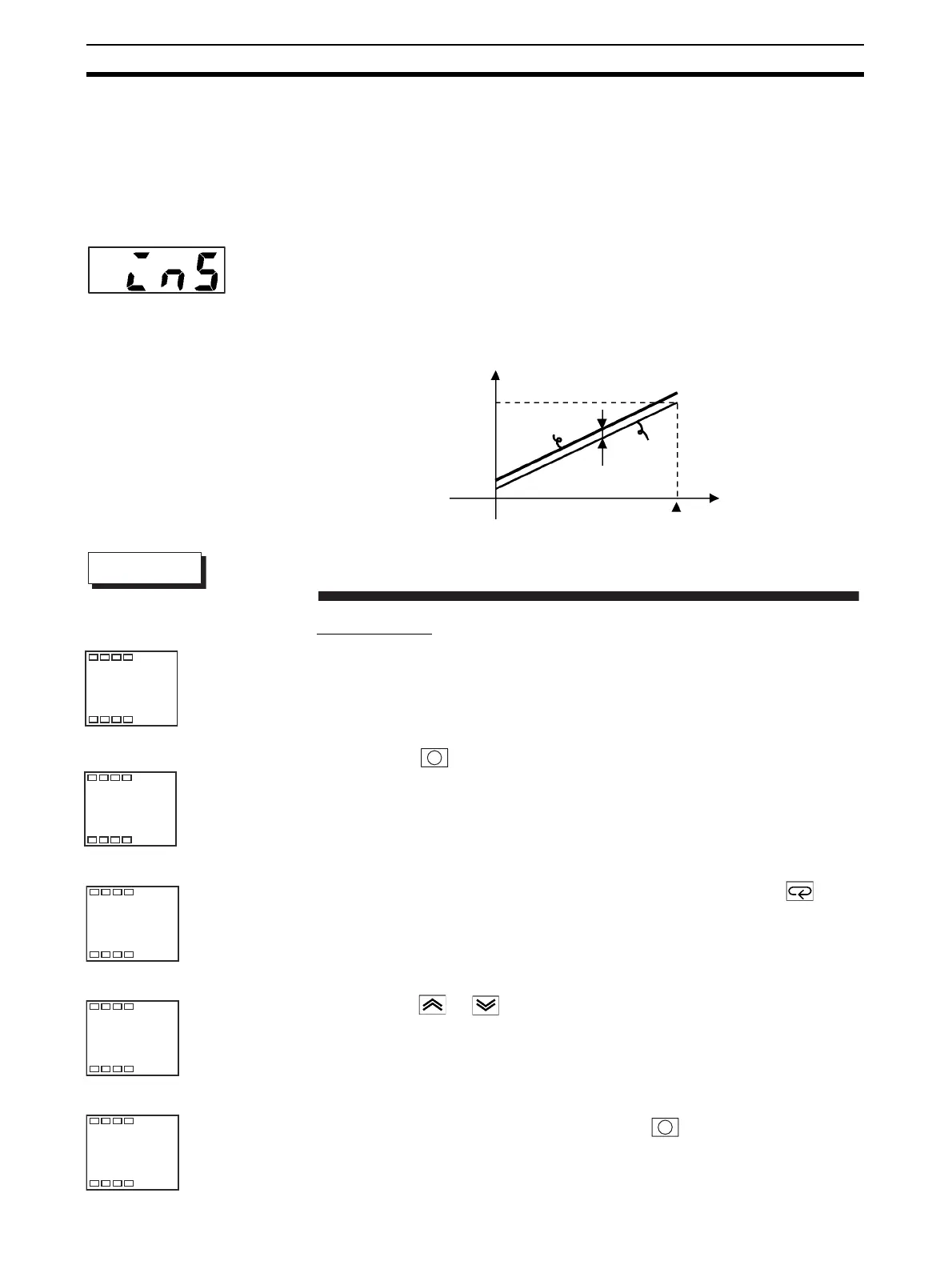

Shifting Input Values Section 4-1
4-1 Shifting Input Values
4-1-1 Shifting Inputs
• The input shift type matched to the sensor currently selected in the “input
type” parameter is displayed.
One-point shift • Two-point shift is applied only for infrared temperature sensors.
• With one-point shift, only the value set to the “Temperature input shift”
parameter (adjustment level) is applied to the entire temperature input
range. For example, if the input shift value is set to “1.2
°C”, the process
value is treated as “201.2
°C” after input shift is applied when the process
value is 200
°C.
In this example, let’s shift the input of the K sensor by “1
°C” by one-point input
shift.
Operation level
1,2,3... 1. Press the key to move from the “operation level” to the “adjustment
level”.
2. Select the “temperature input shift” parameter by pressing the key.
3. Press the or key to set “1.0”.
4. To return to the “operation level,” press the key. The process value is
1
°C larger than before shift is applied.
Input
Temperature
Upper-limit
value
After shift
Input shift value
Before
shift
0
100
Lower-limit
value
Operation Procedure
Operation level
30
200
C
Adjustment level
at
off
Operation level
Temperature
input shift
in5
0.0
C
in5
1.0
C
31
20.0
C
