13
Installation Section 2-1

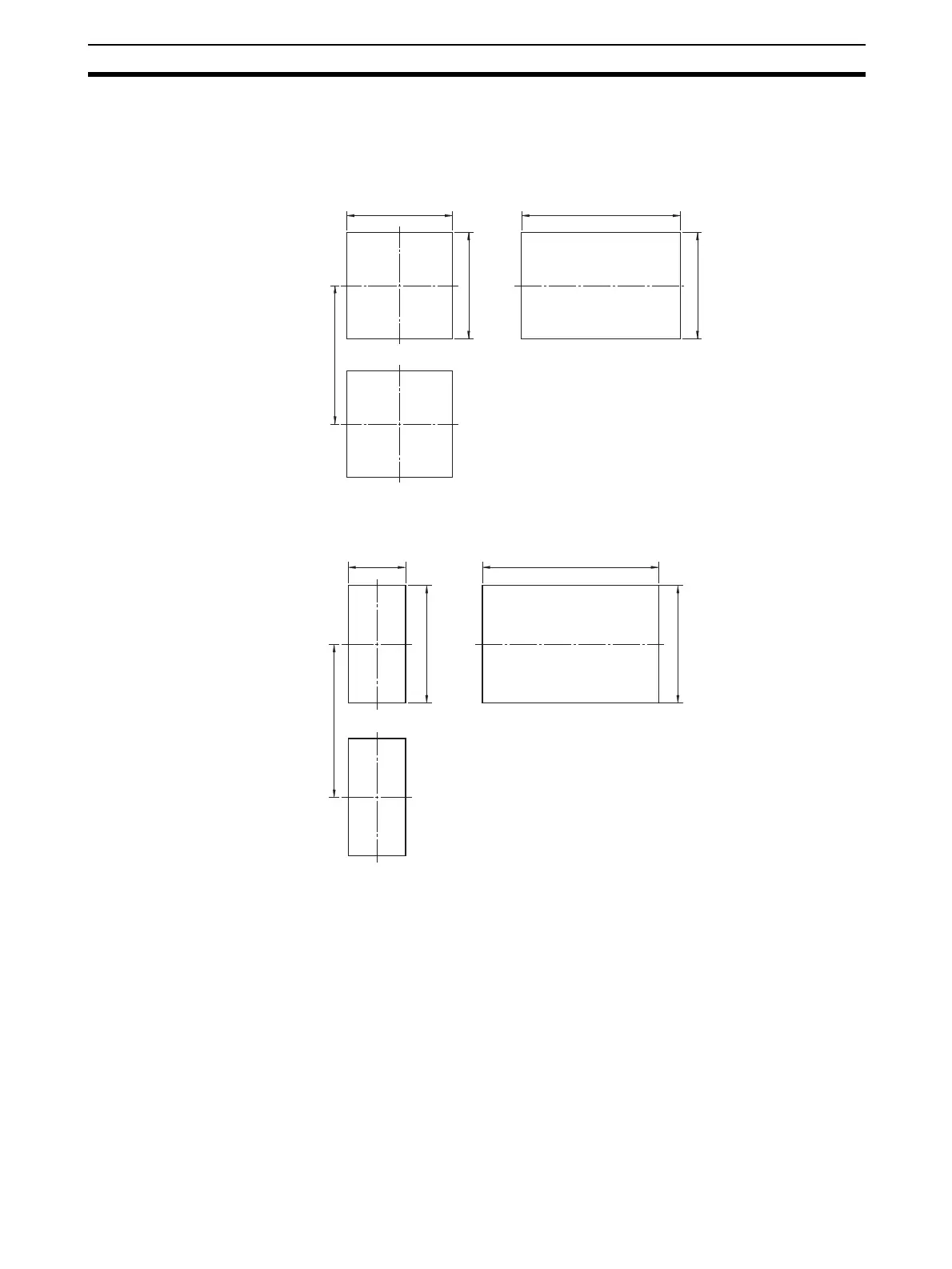

2-1-2 Panel Cutout
E5AZ (Unit: mm)
E5EZ (Unit: mm)
• The recommended panel thickness is 1 to 8 mm.
• Units must not be closely mounted vertically. (Observe the recommended
mounting space limits.)
• When group mounting several Controllers, ensure that the surrounding
temperature does not exceed the ambient operating temperature listed in
the specifications.
120 min.
+1.0
0
Individual Mounting Group Mounting
(96 × number of Units − 3.5)
92
+0.8
0
92
+0.8
0
92
+0.8
0
120 min.
+1.0
0
Individual Mounting Group Mounting
(48 × number of Units − 2.5)
45
+0.6
0
92
+0.8
0
92
+0.8
0
To Next Page
