I/O Configuration and Main Functions Section 1-2
1-2 I/O Configuration and Main Functions
1-2-1 I/O Configuration
E5AZ/E5EZ
Note Functions can be assigned individually for each output by changing the set
values for the control output 1 assignment, the control output 2 assignment,
the alarm 1 assignment, the alarm 2 assignment, and the alarm 3 assignment
in the advanced function setting level.

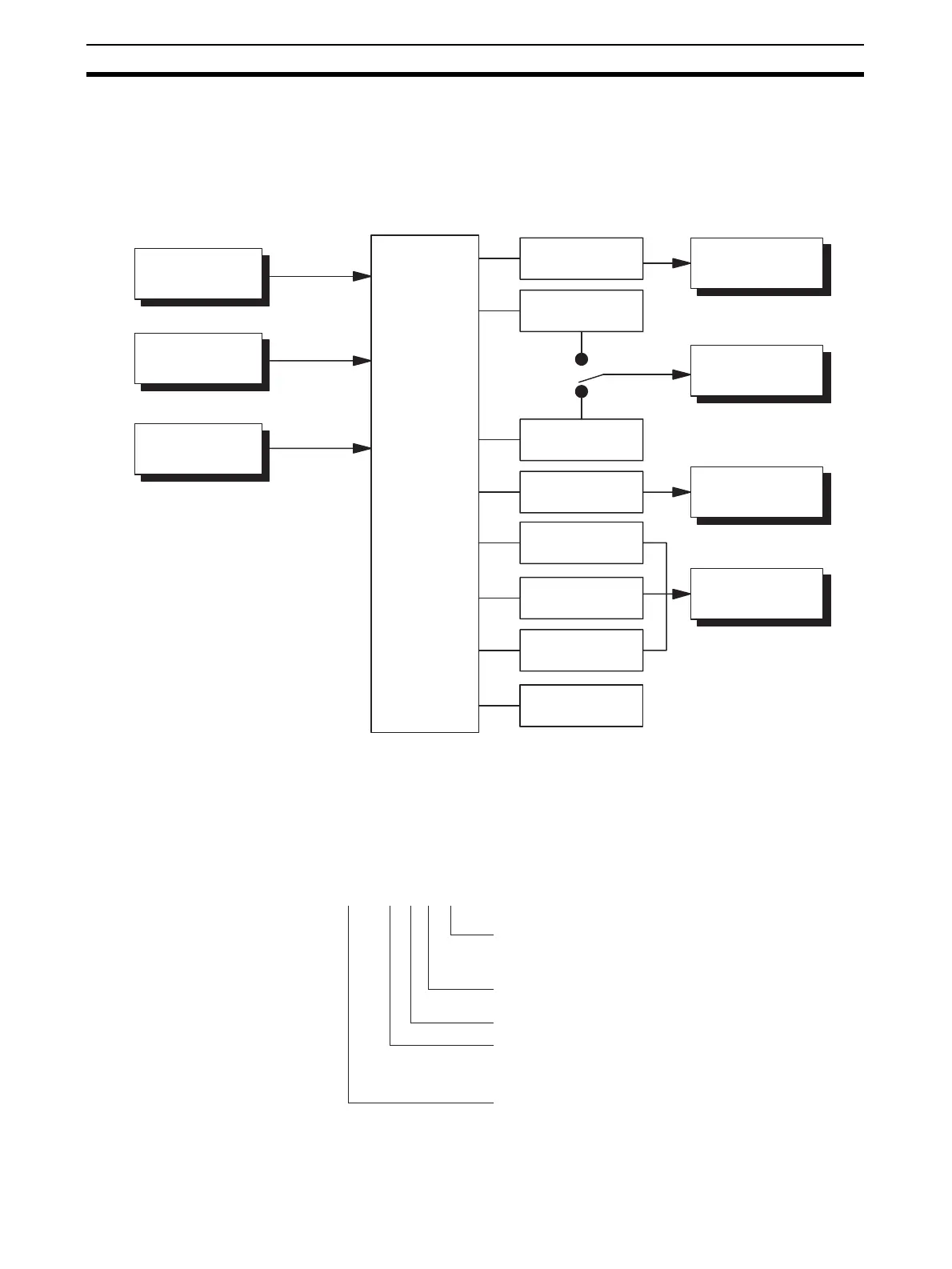

1-2-2 Basic Model
Note Options 1 and 2 are supported when using an E53-AZM Option Board.
*
*
*
*
CT input
(See note.)
Controller
Control output 1
Control output 2
Heating/
cooling
Standard
Alarm 2
Alarm 1
HBA
Input error
Alarm output 3
Alarm output 1
OUT1
OUT2
ALM3
ALM1
HB
Alarm 3
Alarm output 2
ALM2
Temperature
input/analog input
Event input 2ch
(See note.)
Communications
function
Control output 1
Set point input functions from
external digital switches:
Run/Stop
*Items marked with asterisks are options.
E5@Z - @ 3 @ @
Option 2: Blank: Not available.
01: RS-232C
03: RS-485
B: 2 event inputs
Option 1: Blank: Not available.
H: Heater Burnout Alarm
Size: A: 96 × 96 mm (W × H)
E: 96 × 48 mm (W × H)
3: Three alarms
Control Output: R: Relay Output
Q: Voltage Output
C: Current Output
A: Output Unit can be mounted.
