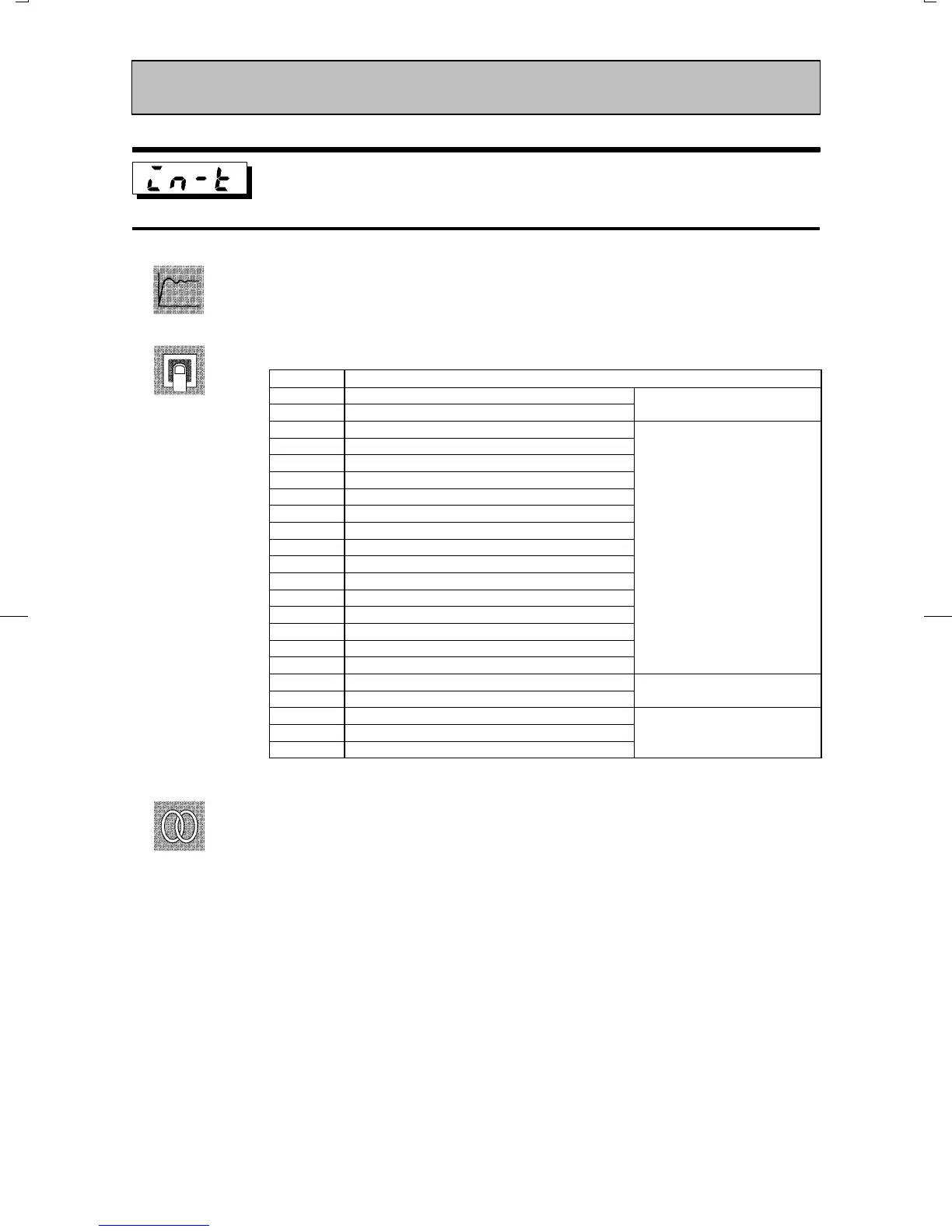

Input type
Ă• Sets the sensor type by the code.
Ă• Set the code according to the following table. Default is 2 : K1 thermocouple".
Set value Input Type
0 JPt100-199.9 to 650.0 (C) /-199.9 to 999.9 (F)
Platinum resistance thermometer
1 Pt100 -199.9 to 650.0 (C) /-199.9 to 999.9 (F)
Platinum resistance thermometer
2 K1 -200 to 1300 (C) /-300 to 2300 (F)
3 K2 0.0 to 500.0 (C) /0.0 to 900.0 (F)
4 J1 -100 to 850 (C) /-100 to 1500 (F)
5 J2 0.0 to 400.0 (C) /0.0 to 750.0 (F)
6 T -199.9 to 400.0 (C) /-199.9 to 700.0 (F)
7 E 0 to 600 (C) /0 to 1100 (F)
8 L1 -100 to 850 (C) /-100 to 1500 (F)
9 L2 0.0 to 400.0 (C) /0.0 to 750.0 (F)
Thermocouple
10 U -199.9 to 400.0 (C) /-199.9 to 700.0 (F)
Thermocouple
11 N -200 to 1300 (C) /-300 to 2300 (F)
12 R 0 to 1700 (C) /0 to 3000 (F)
13 S 0 to 1700 (C) /0 to 3000 (F)
14 B 100 to 1800 (C) /300 to 3200 (F)
15 W 0 to 2300 (C) /0 to 4100 (F)
16 PLII 0 to 1300 (C) /0 to 2300 (F)
17 4 to 20mA
Current input
18 0 to 20mA
Current input
19 1 to 5V
20 0 to 5V
Voltage input
21 0 to 10V
Voltage
input
ĂRelated description
3.2 Setting Input Specifications (page 3Ć4)
ĂRelated parameter
When input type is set to temperature input:
C/F selection" (setup mode)
When input type is set to voltage input or current input:
Scaling upper limit" Scaling lower limit" Decimal point" (setup mode)
Setup Mode
Function
Setting
See
