4.9 How to Use Transfer Output
E5CK
4–21
4.9 How to Use Transfer Output
Ă• When using transfer output, add on the communications unit
(E53ĆCKF).
Ă• You can select the following four data items in the transfer output type"
parameter (option mode) as the transfer outputs:
Present SP (default), Process value, Manipulated variable (heat),
Manipulated variable (cool).
Ă• If the output assignment is changed when either the manipulated variĆ
able (heat)" or manipulated variable (cool)" parameter is selected, the
factory setting set point" is returned to.
Ă• These transfer outputs can be scaled according to the settings of the
transfer output upper limit" and transfer output lower limit" paramĆ
eters before output. Setting of an upper limit value smaller than the lowĆ
er limit value is allowed, so reverse scaling can also be carried out. Also,
the scale can be enlarged by the upperĆ and lowerĆlimit width specified

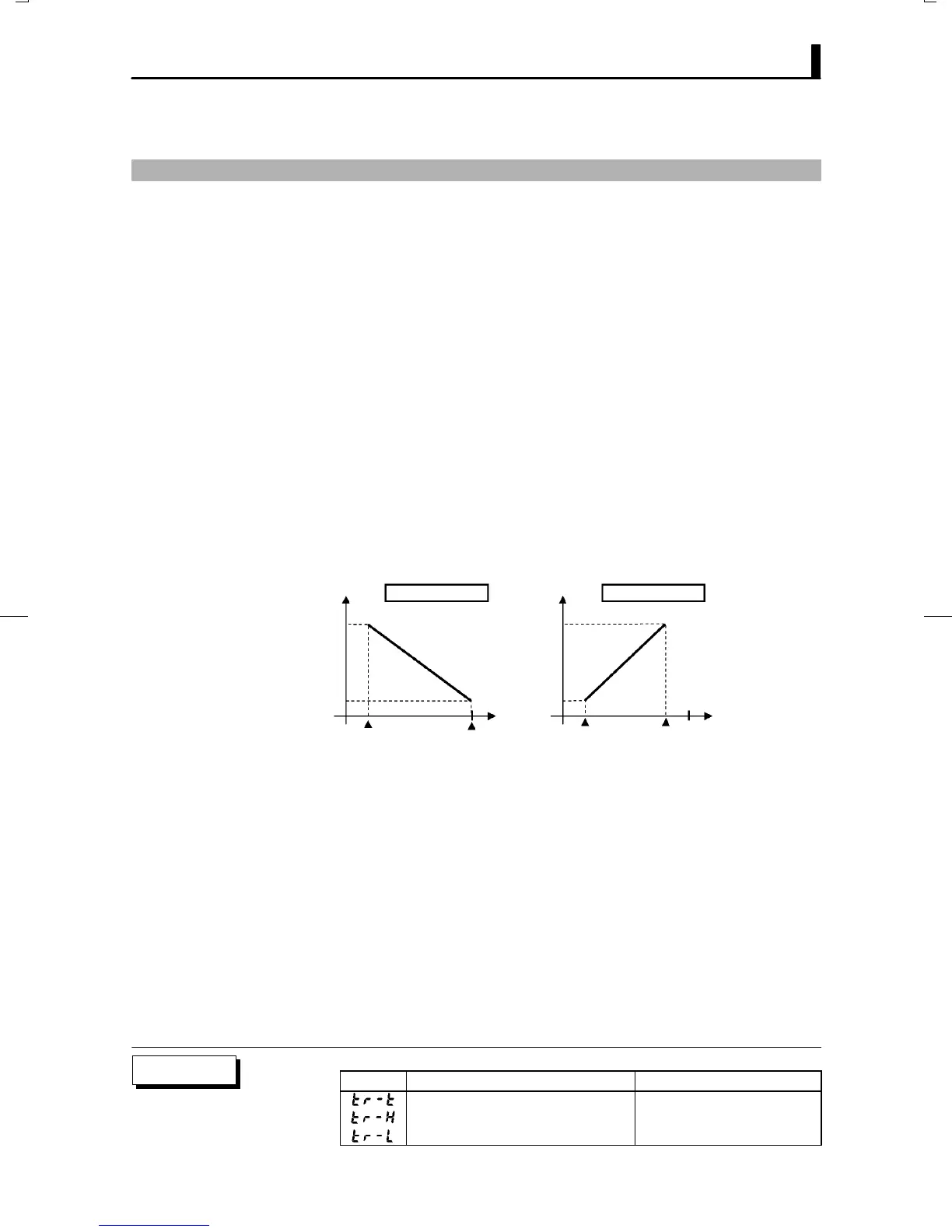

for each data item. The following example shows scaling of the heating
side manipulated variable.
(mA)
20
4
20
4
0
100
(mA)
Transfer output Transfer output
Reverse scaling Enlarged scale
Transfer output
upper limit: 0
Transfer
output lower
limit: 100
Manipu-
lated
variable
(%)
Transfer
output lower
limit: 10
Transfer
output upper
limit: 80
Manipulated
variable (%)
Symbol Parameter Name: Mode Description
Transfer output type : Option Transfer output designation
Transfer output upper limit : Option Transfer output scaling
Transfer output lower limit : Option Transfer output scaling
F Transfer output
type
F Transfer output
scaling
Parameters
