3.4 î ±Unpacking Considerations

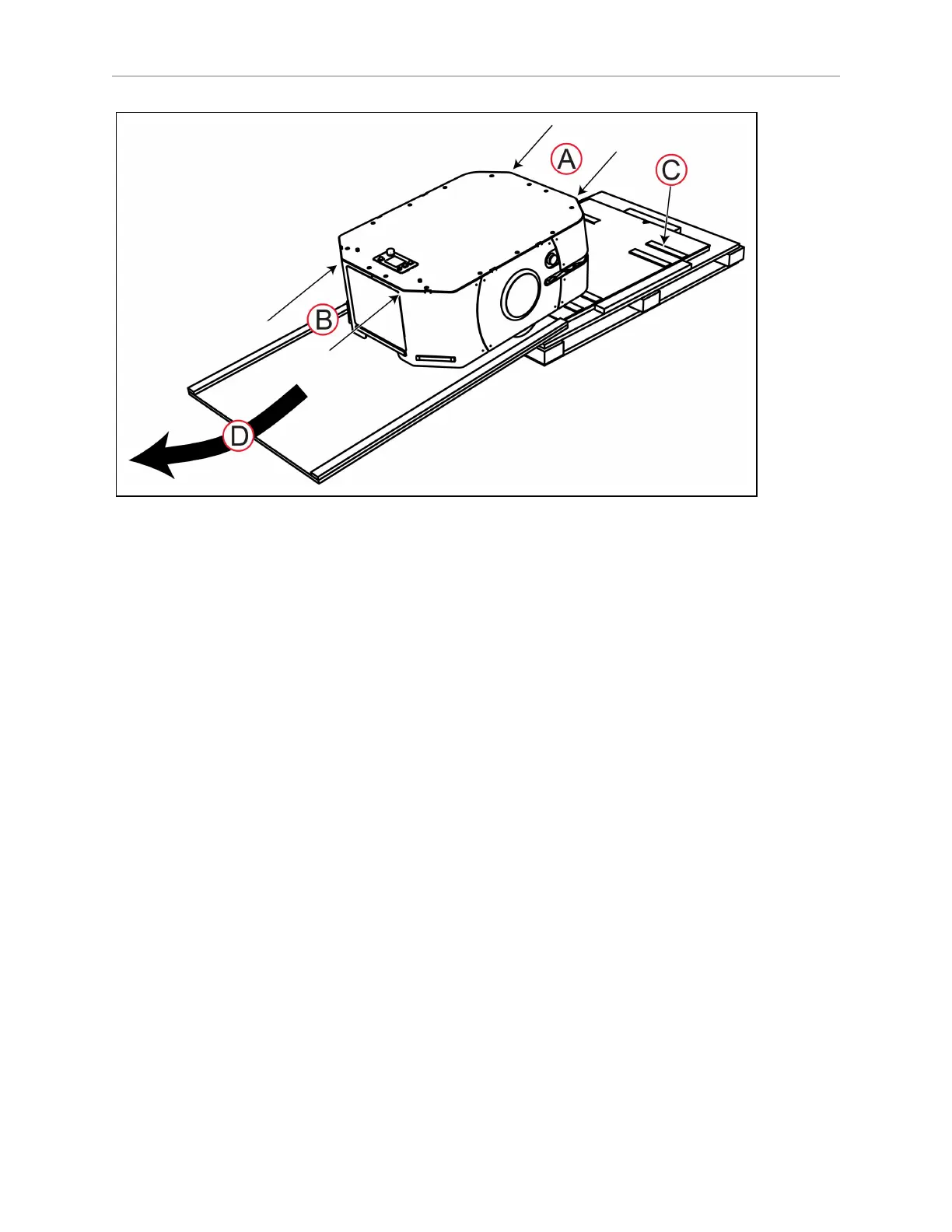

Figure 3-5 Move the LD-250 Down the Ramp
1.
Referring to Figure 3-5, Identify the safe push points (A) and (B) at the top edge of the
skins. Do not push lower down on the chassis because it might damage the skins or
other components.
2.
During shipping, the casters are prevented from movement by chocking strips on the
plywood package base. Be aware that it requires some effort to push the LD-250 over
these strips.
3.
Pushing from the top edge of the chassis using the push points (A) and steadying the
LD-250 at push points (B), carefully roll the LD-250 over the caster chocks and down
the ramp.
After unpacking, the next steps are:
l
Locate and install the battery, which is shipped separately. See: Installing the Battery on
page 53.
l
Engage the drive wheel motors. See: Engage and Disengage the Drive Wheel Motors on
page 148.
If you intend to proceed with commissioning the LD-250, read that section before you replace
the side skins or engage the drive wheel motors. See: E-Stop and Safety Laser Commissioning on
page 176.
