A - 63
Appendices
NX-series Digital I/O Unit User’s Manual (W521)
A-3 Connecting Connector-Terminal Block
Conversion Units and I/O Relay Terminals
A
A-3-1 Patterns for Combining Connector-Terminal Block Conversion Units and I/O Relay Terminals
A-3 Connecting Connector-Terminal
Block Conversion Units and I/O Relay
Terminals
The following patterns can be used to connect Digital I/O Units with connectors to OMRON Connec-
tor-Terminal Block Conversion Units and I/O Relay Terminals using OMRON Connecting Cables.
A-3-1 Patterns for Combining Connector-Terminal Block Conversion
Units and I/O Relay Terminals

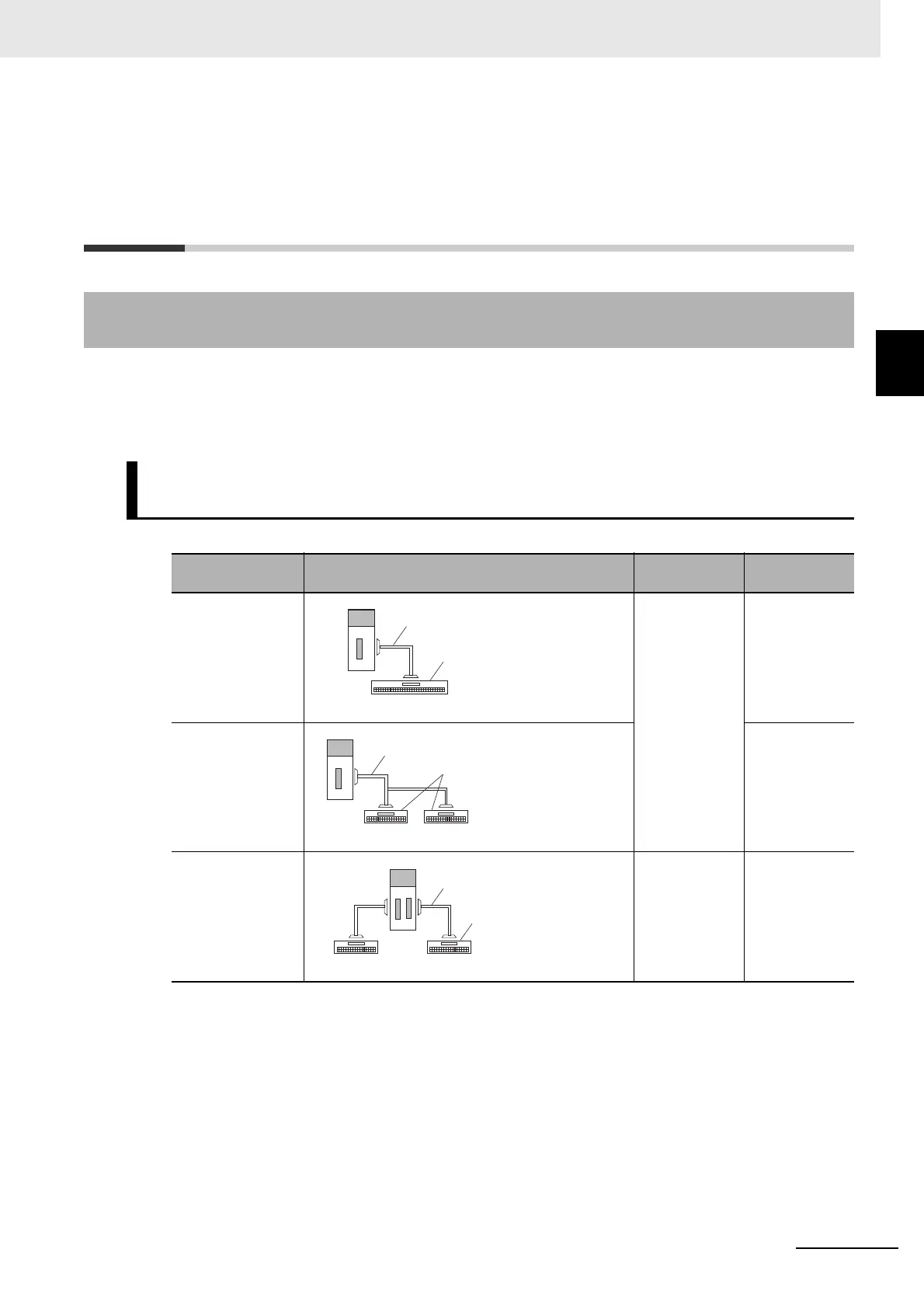

Connection Patterns for Connector-Terminal Block Conversion
Units
Pattern Configuration
Number of
connectors
Branching
A
1
None
B 2 branches
C2None
Connector-Terminal Block
Conversion Unit
20 or 40 terminals
Connecting Cable
20 terminals 20 terminals
Connector-Terminal Block
Conversion Unit
Connecting Cable with two branches
Connector-Terminal Block
Conversion Unit
Connecting Cable
20 terminals20 terminals
