3 Part Names and Functions
NX-series Digital I/O Unit User’s Manual (W521)
3-2 Indicators
3
3-2 Indicators
There are the indicators to show the current operating status of the Unit or the signal I/O status on the
Digital I/O Units.

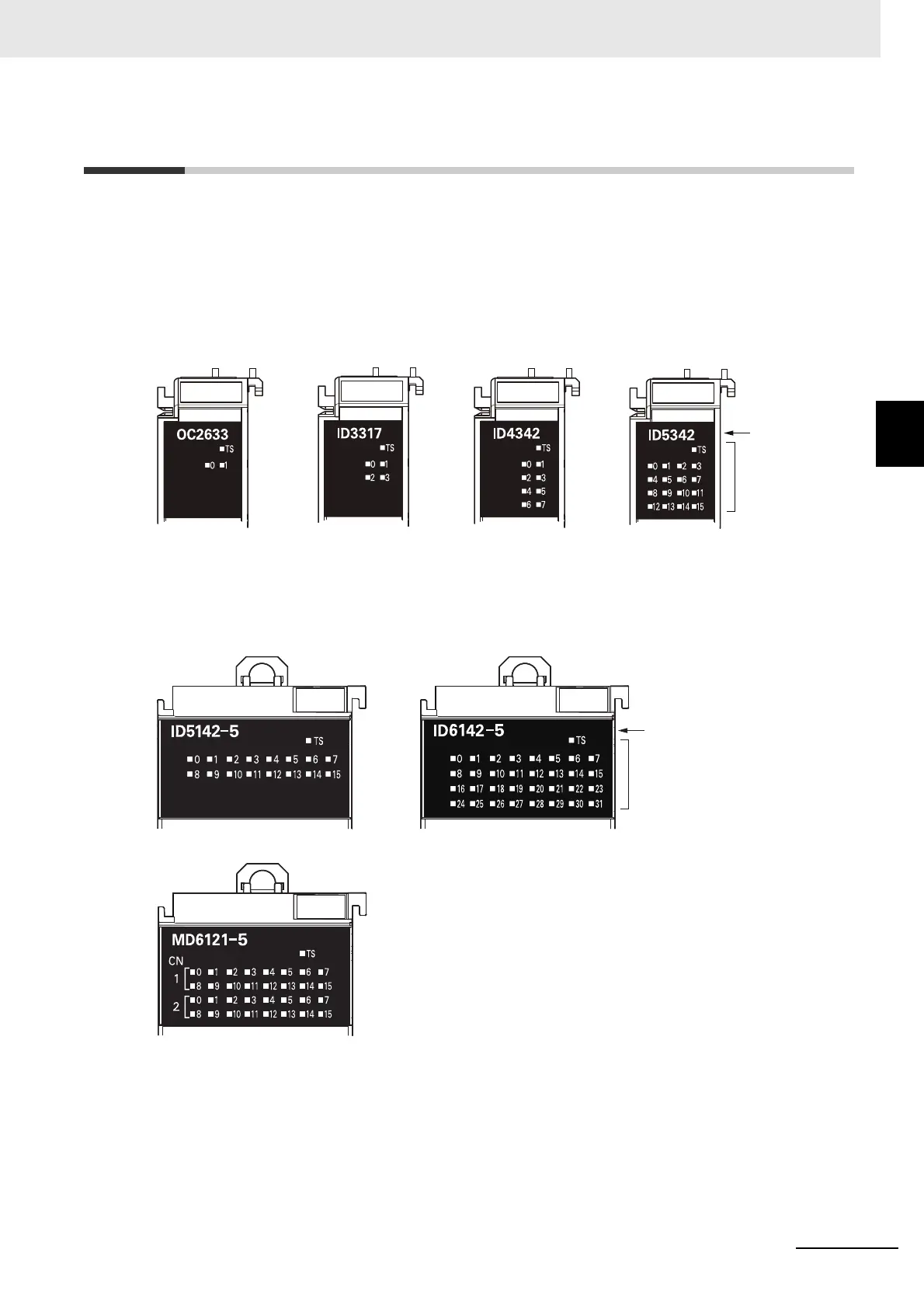

The following indicator patterns are available depending on width of the Unit and the number of I/O
points.
 NX Units (12 mm Width)
 NX Units (30 mm Width)
2-point type 4-point type
8-point type 16-point type
(A)
(B)
16-point type
16-point + 16-point type
(Mixed I/O Units)
32-point type
(A)
(B)
