Omron NX-OD5256 User Manual

3 - 11
3 Part Names and Functions
NX-series Digital I/O Unit User’s Manual (W521)
3-2 Indicators
3

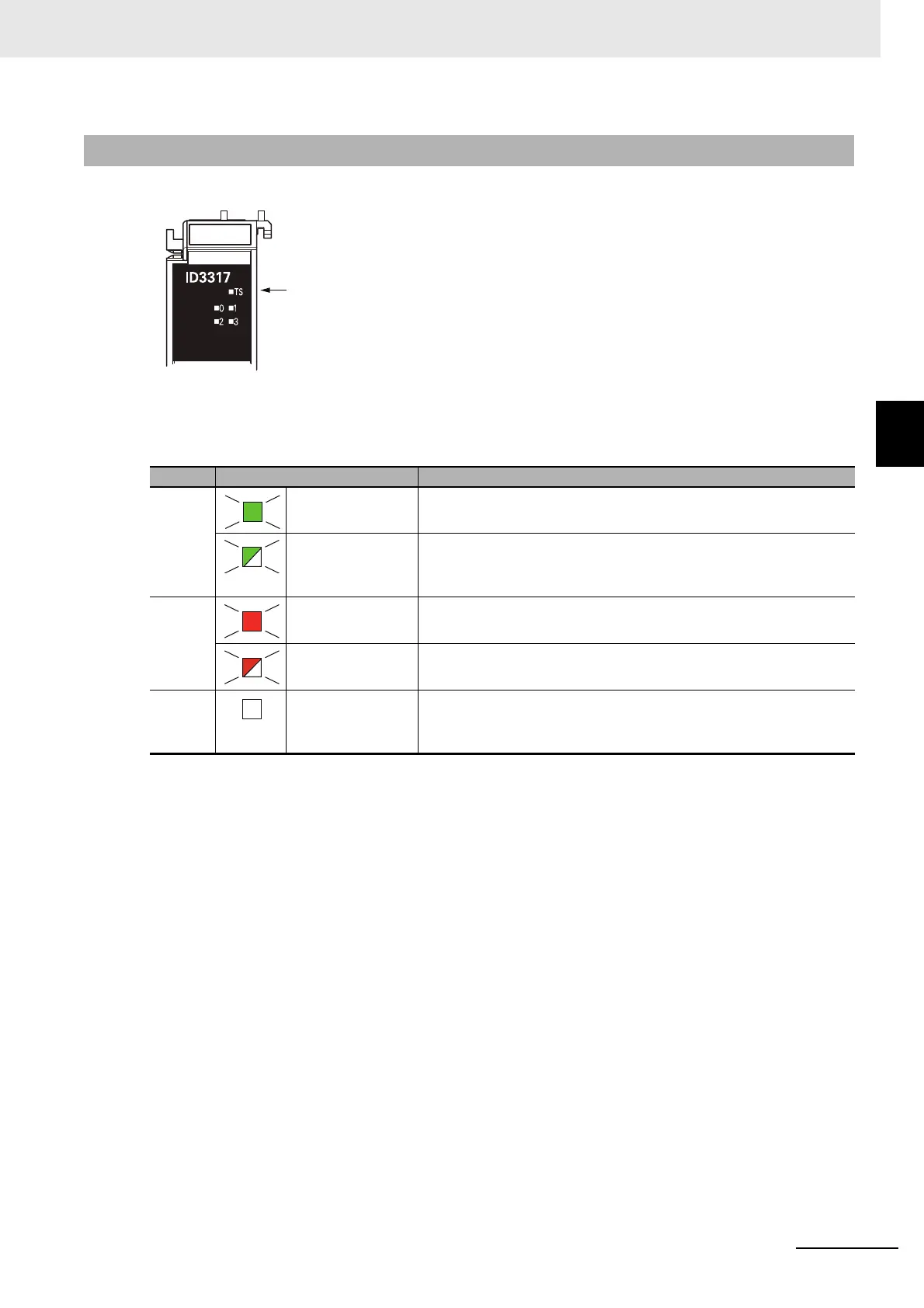

3-2-1 TS Indicator
The meanings of light statuses are described as follows:
3-2-1 TS Indicator
Color Status Description
Green Lit The Unit is operating normally.
The Unit is ready for I/O refreshing.
Flashing at 2-s
intervals.
• Initializing
• Restarting is in progress for the Unit.
• Downloading
Red Lit A hardware failure, WDT error, or other fatal error that is common to
all I/O Units occurred.
Flashing at 1-s
intervals.
A communications error or other NX bus-related error that is common
to all I/O Units occurred.
 Not lit • No Unit power supply
• Restarting is in progress for the Slave Terminal.
• Waiting for initialization to start
This indicator shows the current status of the Digital I/O Unit and
its communications status with the Communications Coupler Unit.
