10 - 23
10 Operation
G5-series Linear Motors/Servo Drives With Built-in EtherCAT Communications
10-3 Linear Motor Setup
10
10-3-3 Connection from the CX-Drive via Network
1

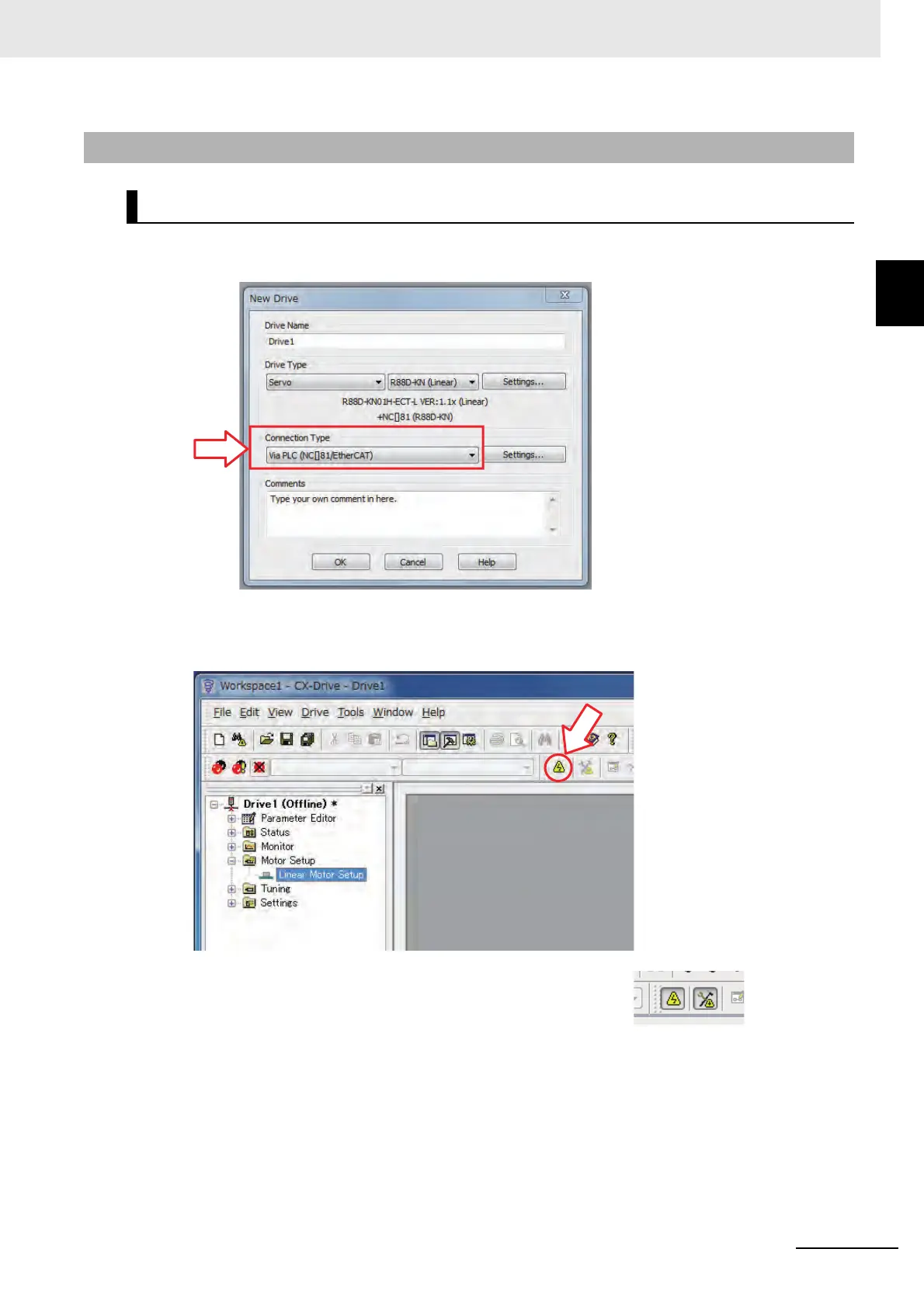

In the CX-Drive, click [Change …] from the [Drive] menu to check that the Connection
Type is selected correctly.
2
Click the Online icon, or click [Work Online] from the [Drive] menu.
The Servo Drive is set online.
When the Servo Drive is set online, the Online icon is as
shown in the diagram to the right.
10-3-3 Connection from the CX-Drive via Network
Online Operation
To Next Page
