Omron SYSMAC CJ - REFERENCE MANUAL 08-2008 User Manual

299
Comparison Instructions Section 3-7
S
2
through S
2
+2: Comparison Time Data
S
2
through S
2
+2 contain the comparison time data. S
2
through S
2
+2 must be
in the same data area.
Note The year value indicates the last two digits of the year. Values 00 to 97 are
interpreted as 2000 to 2097. Values 98 and 99 are interpreted as 1998 and
1999.

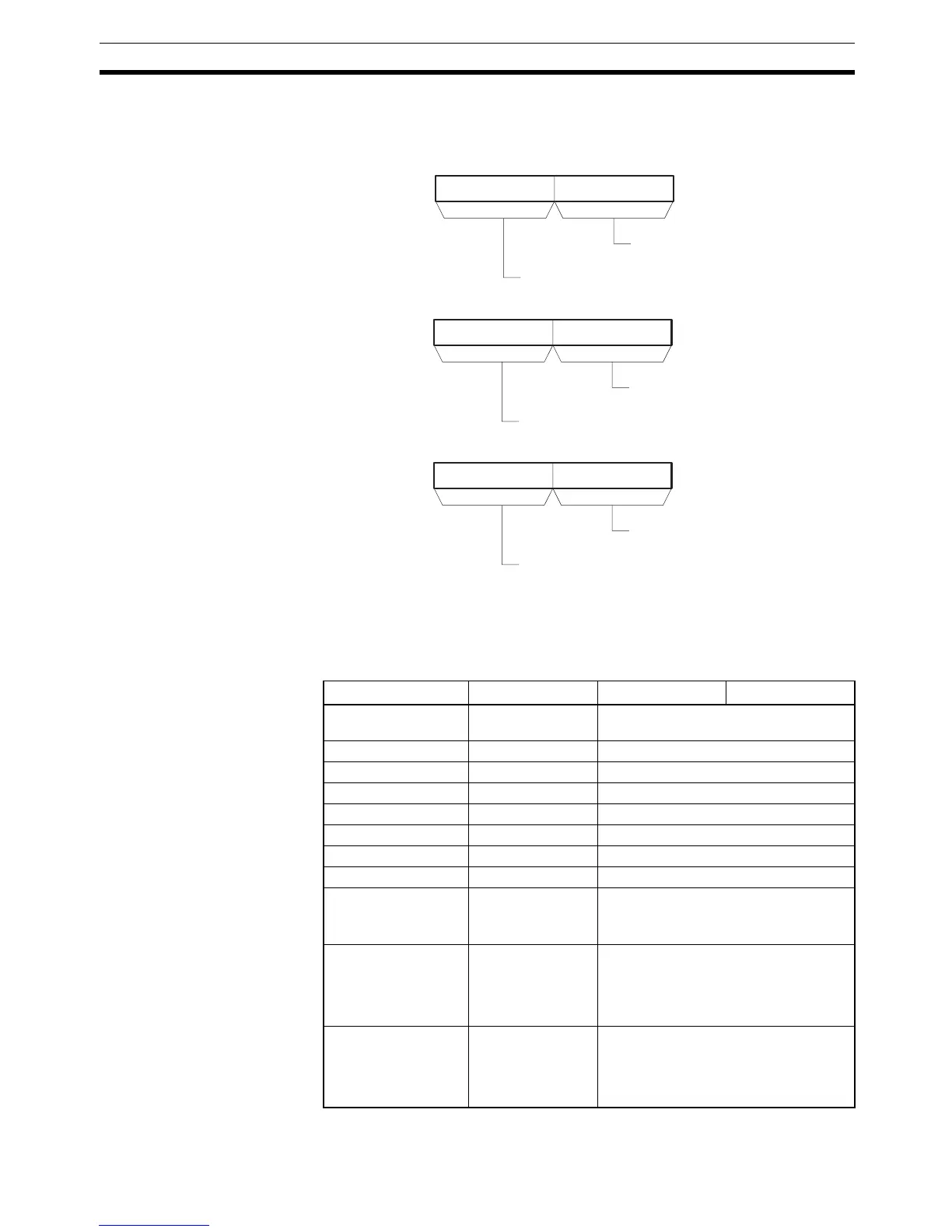

Operand Specifications
15 8 07
S2
15 8 07
S2+1
15 8 07
S2+2
Month: 01 to 12 (BCD)
Year: 00 to 99 (BCD)
Day: 01 to 31 (BCD)
Hour: 00 to 23 (BCD)
Minutes: 00 to 59 (BCD)
Seconds: 00 to 59 (BCD)
Area C S
1
S
2
CIO Area CIO 0000 to
CIO 6143
CIO 0000 to CIO 6141
Work Area W000 to W511 W000 to W509
Holding Bit Area H000 to H511 H000 to H509
Auxiliary Bit Area A448 to A959 A000 to A957
Timer Area T0000 to T4095 T0000 to T4093
Counter Area C0000 to C4095 C0000 to C4093
DM Area D00000 to D32767 D00000 to D32765
EM Area without bank E00000 to E32767 E00000 to E32765
EM Area with bank En_00000 to
En_32767
(n = 0 to C)
En_00000 to En_32765
(n = 0 to C)
Indirect DM/EM
addresses in binary
--- @ D00000 to @ D32767
@ E00000 to @ E32767
@ En_00000 to @ En_32767
(n = 0 to C)
Indirect DM/EM
addresses in BCD
--- *D00000 to *D32767
*E00000 to *E32767
*En_00000 to *En_32767
(n = 0 to C)
