Adjustment
14 - 61
● Switch the bobbin winder off.
● Loosen screws 5 and move the bobbin winder in accordance with requirement 1.
● Tighten screws 5.
● Loosen screw 6 land move the button 7 in accordance with requirement 2.
● Tighten screw 6.
6
7
5
1
2
3
4

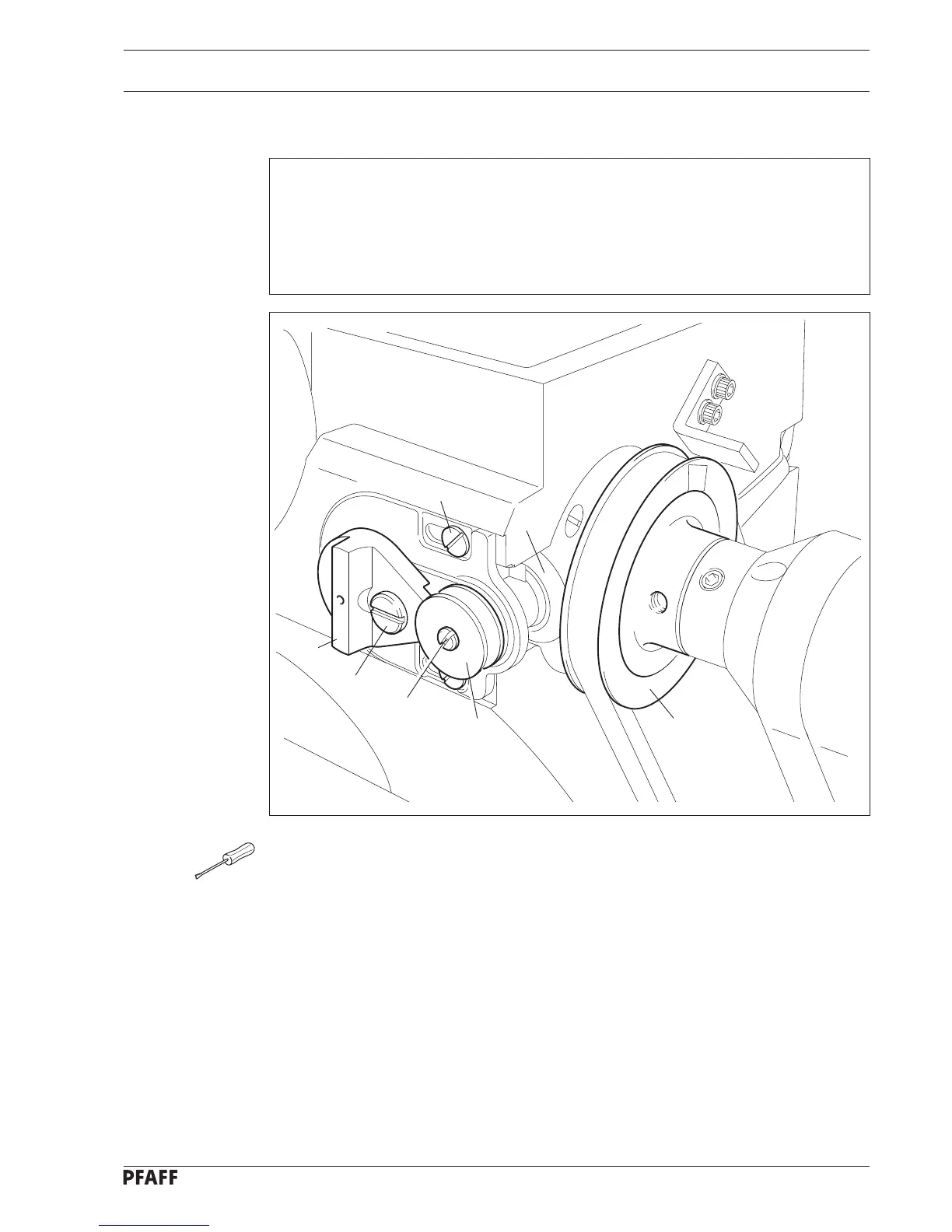

14.29 Bobbin winder
Requirement
1. When switching the machine on, the bobbin winder shaft 1 must be driven securely by
the drive pulley 2. When the machine is off there must be a clearance of 1 mm
between the drive wheel 2 and the drive pulley 3.
2. The bobbin winder must wind evenly and stop independently when the thread level is
approx. 1 mm from the edge of the bobbin 4.
Fig. 14 - 59
