Adjustment
14 - 2
14.02 Machine positions and needle bar positions
When the machine is switched off, the machine positions can be attained by
turning the handwheel 1, by turning the shaft 2 or by turning the drive pulley 3.
The needle bar positions can be attained by turning the drive pulley 3.
At the end of a program the marking 4 on the control cam must be aligned with
the marking 5 on the housing.
● Turn the handwheel 1 clockwise.
or
● Turn the shaft 2 counter clockwise with a screwdriver.
or
● Turn the drive pulley 3 in its direction of rotation.
Before turning the drive pulley 3 the stop motion device must be engaged! The
separate machine positions should only be approached with the work clamp is
touching.
2
3
1

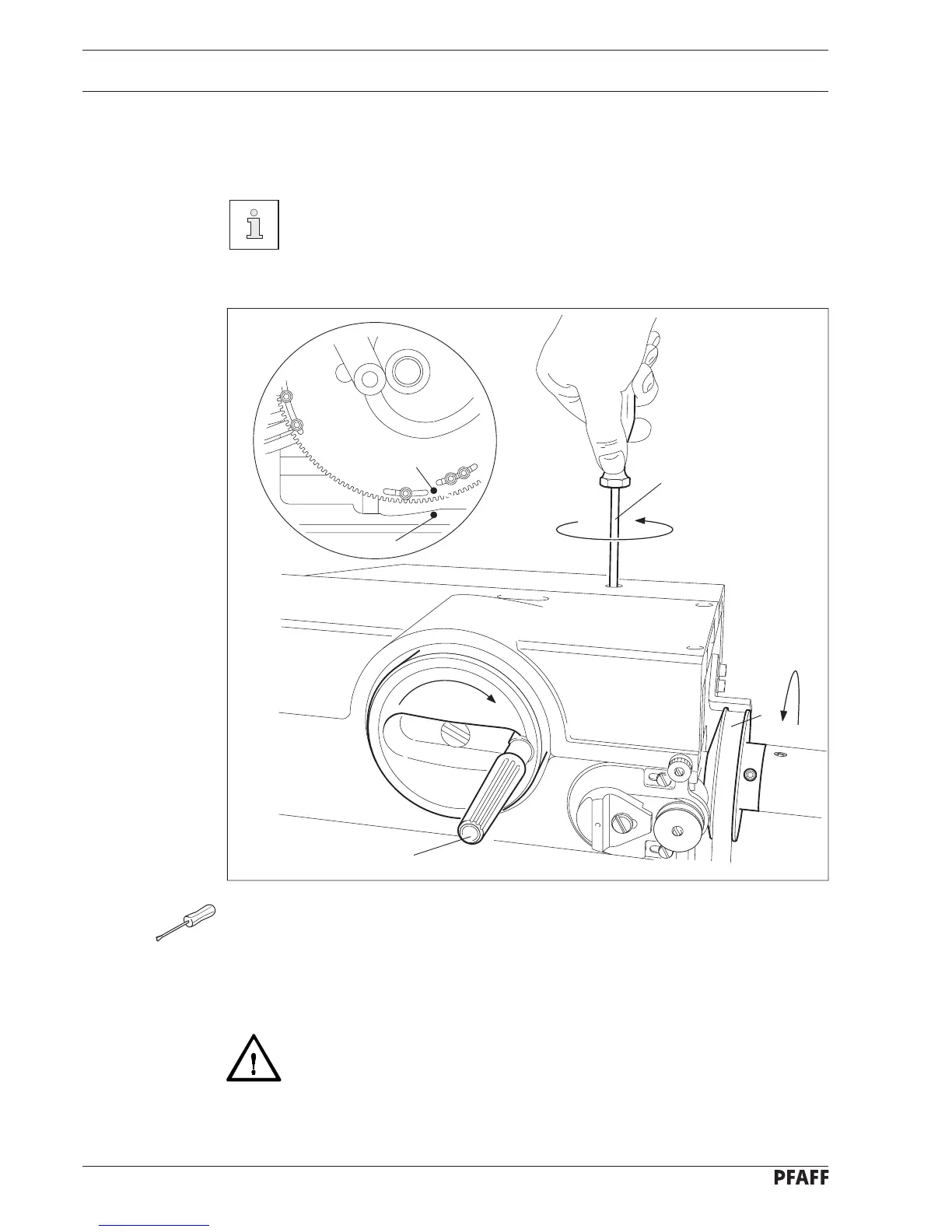

Fig. 14 - 01
4
5
