Adjustment
14 - 48

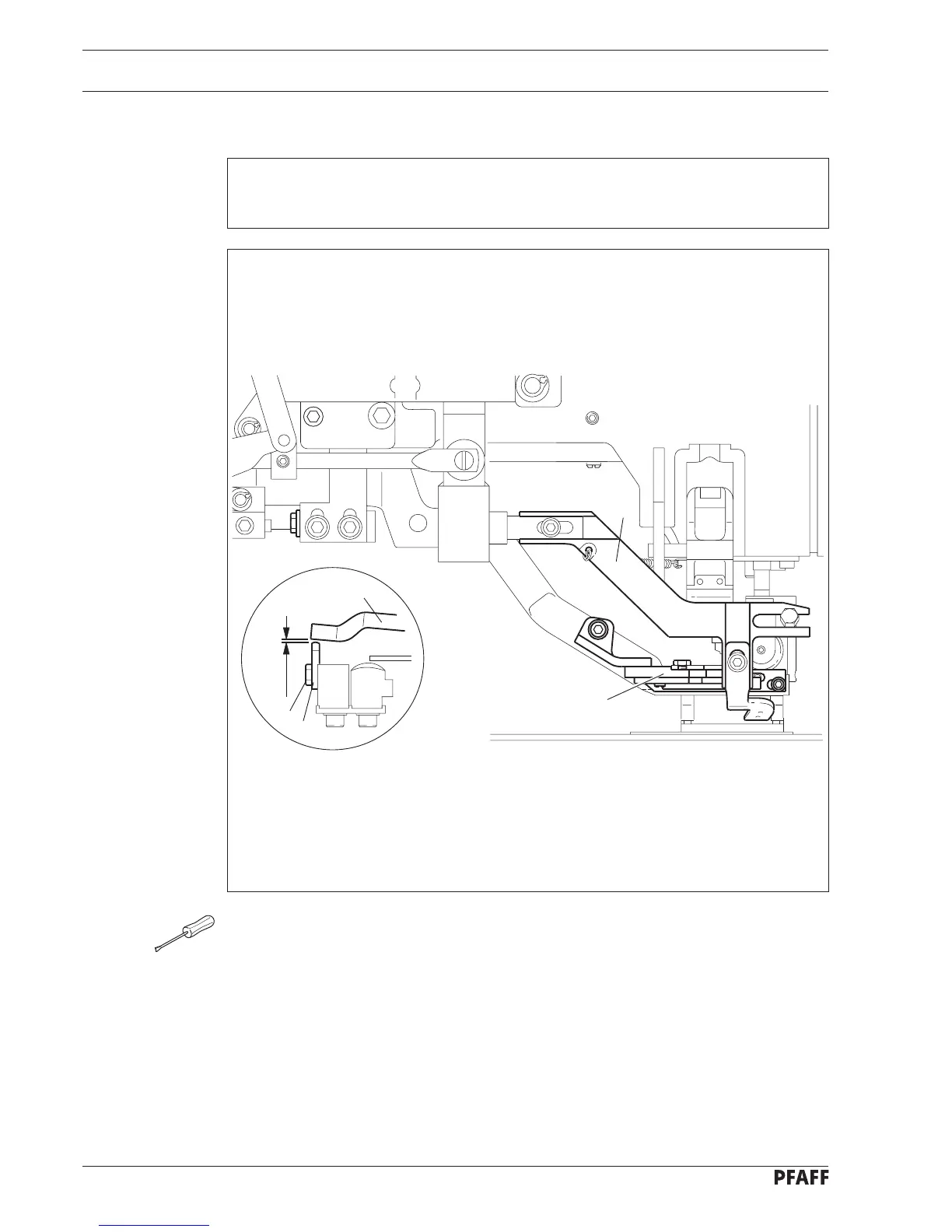

Fig. 14 - 46
0.3 mm
2
1
5
3
4
● The machine must be in program end position.
● Engage the stop motion device.
● Turn the handwheel until needle thread scissor frame 1 is at the highest point of trip
guide 2.
● Loosen screw 3 and shift the stop piece 4 so that there is a clearance of 0.3 mm bet-
ween the springborn pawl 5 and the stop piece 4.
● Tighten screw 3.
● Disengage the stop motion device.
14.20.04 Stop piece
Requirement
During the entire sewing action the needle thread scissor must keep clear of the sewing
area.
