Adjustment
14 - 17
14
.08
Stop motion buffer
Requirement
1.
With the machine switched off there must be a clearance of
120.5 mm
between the
middle of the hole in the switching lever and the housing.
2.
With the machine stopped levers
1
and
2
should be upright ( pre-adjustment ).
120.5 mm
3
6
1
5
2
4

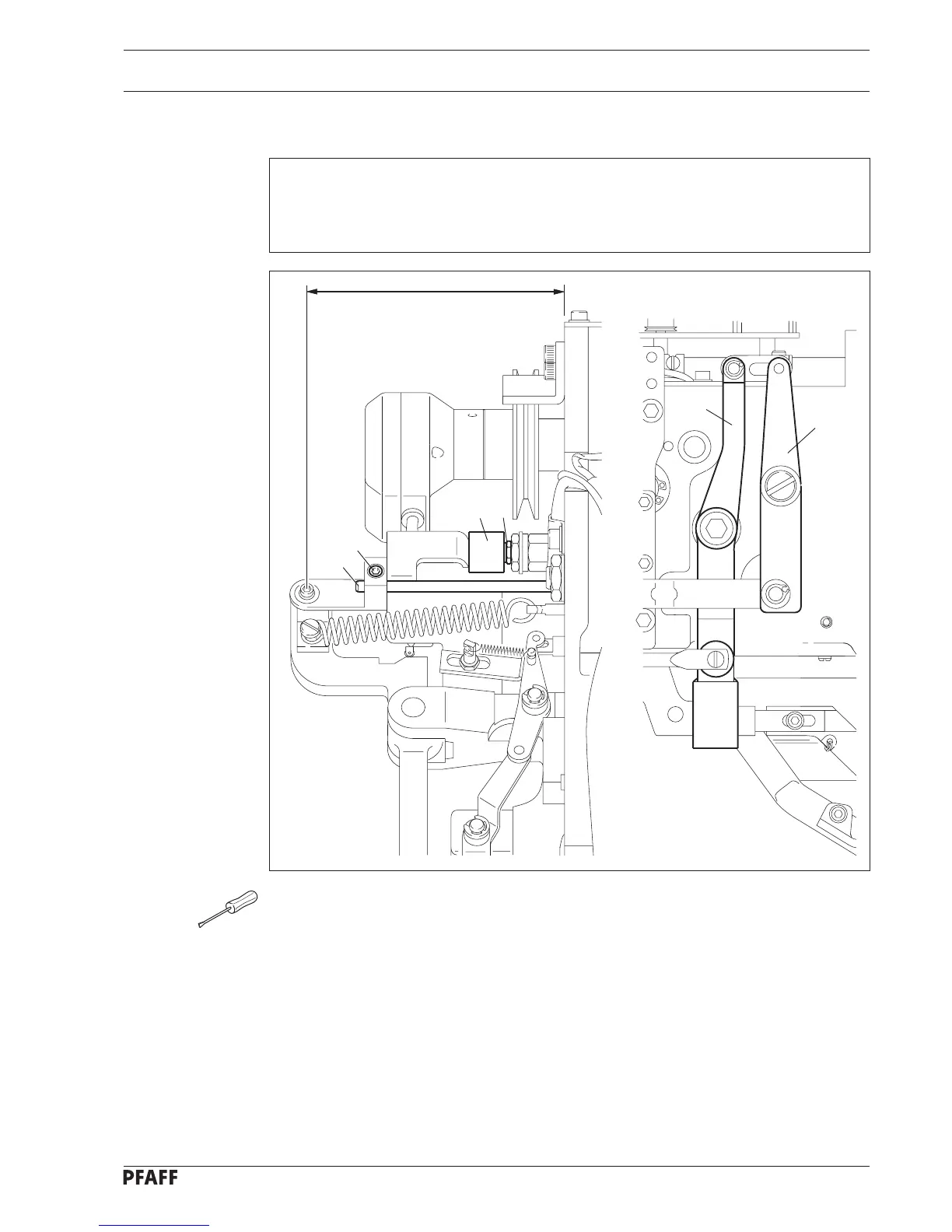

Fig. 14 - 16
●
Loosen grub screw
3
.
●
Loosen nut
4
and turn the stop motion buffer
5
in accordance with
requirement 1.
●
Tighten nut
4
.
●
Move rod
6
in accordance with
requirement 2
.
●
Tighten grub screw
3
.
60
62
