Mounting and initial operation
9 - 1
9 Mounting and initial operation
This machine may only be mounted and put into operation by qualified
specialists! All relevant safety regulations are to be adhered to!
9.01 Mounting
Connections for electrical and compressed air supplies must be available at the machine’s
location ( see chapter 3 Specifications ).
A solid, horizontal surface and adequate lighting must also be guaranteed.
Due to reasons of packaging, the table top is lowered on machines with
stands. When putting the machine into operation, the table top should be
raised again or adjusted to an ergonomically suitable height.
The PFAFF 3117 is available in two mountings.

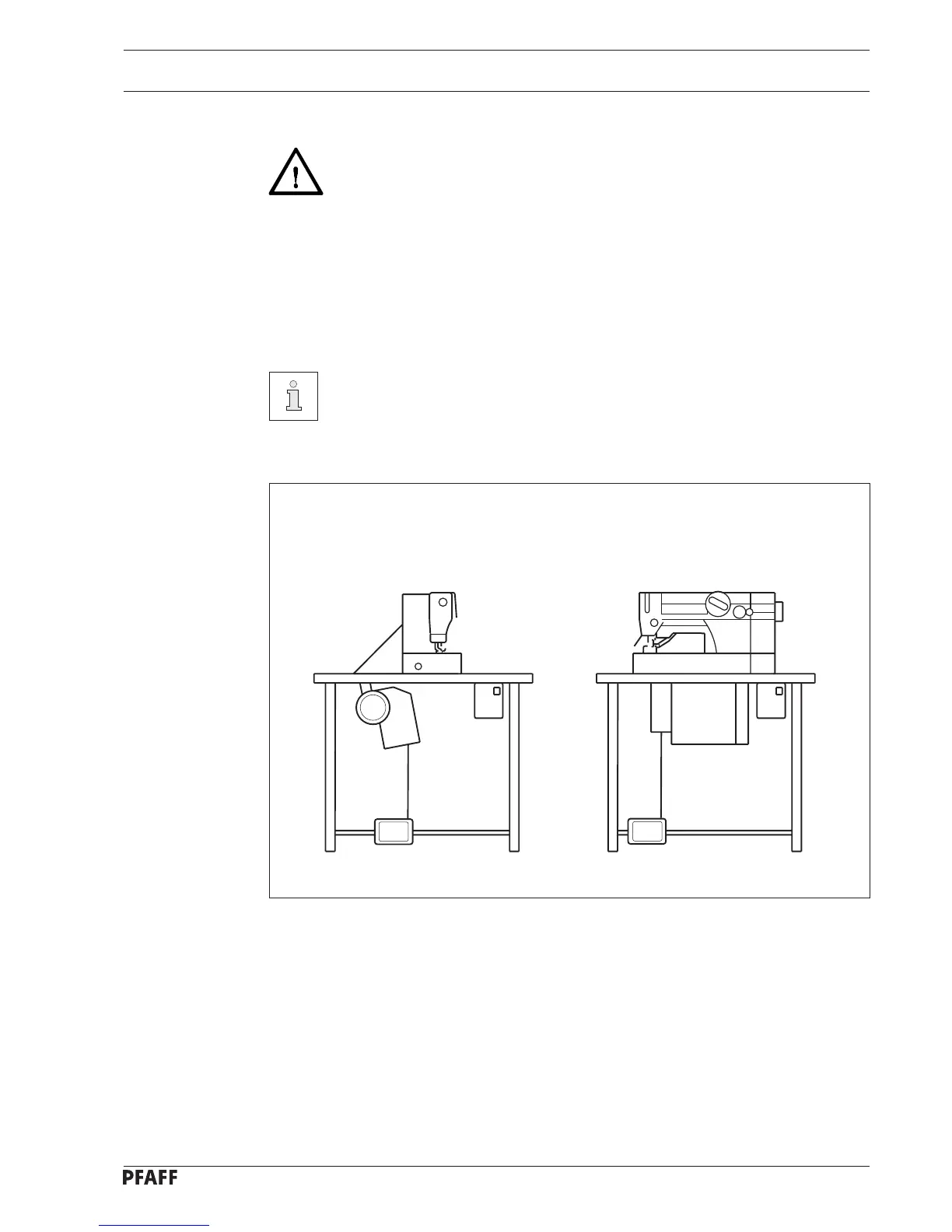

Fig. 9 - 01
Mounting 1
= crosswise
Mounting 2
= lengthwise
● Mounting 1 is perpendicular to the operator.
● Mounting 2 is parallel to the operator.
