Adjustment
14 - 62
14
.30

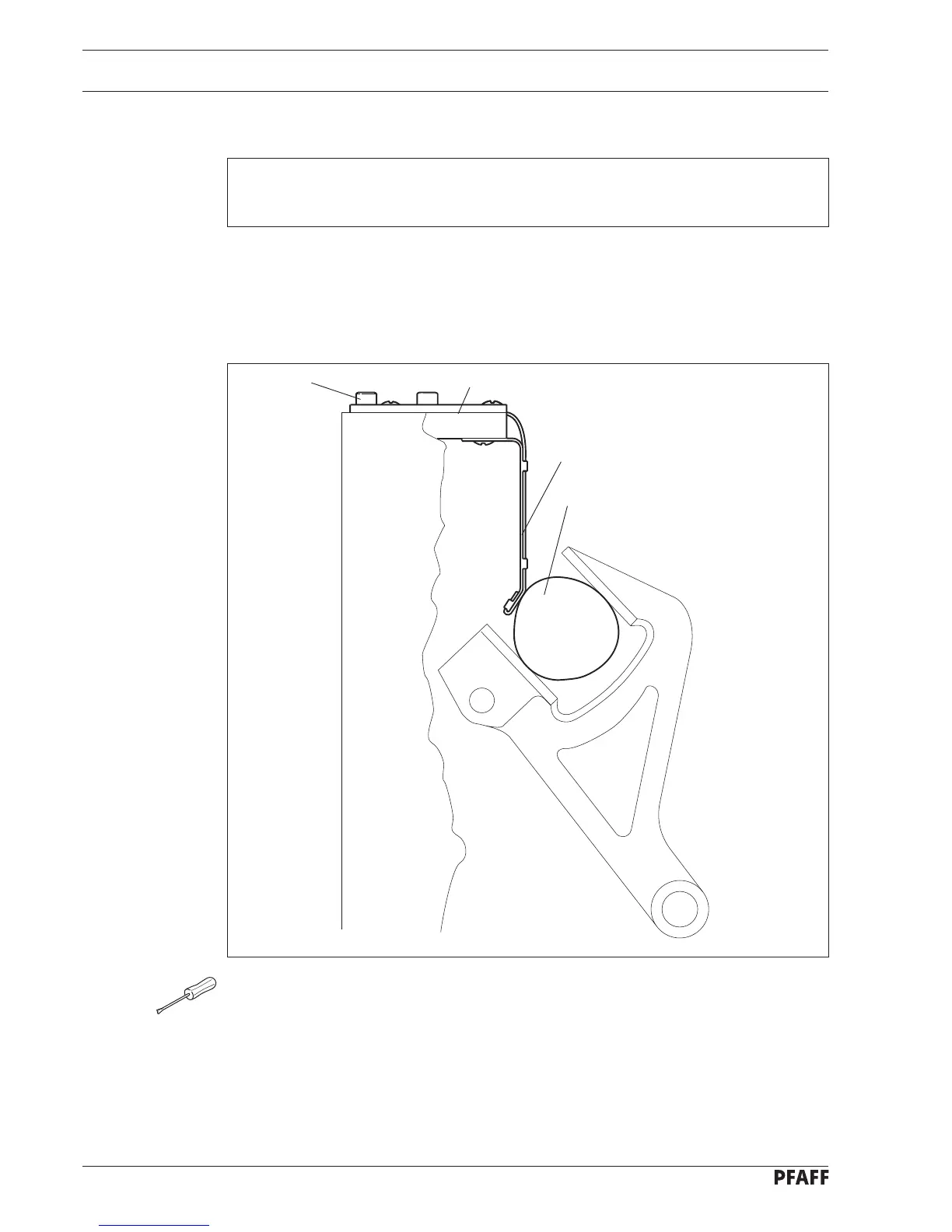

Lubricating the feed regulator eccentric
Requirement
The felt strip
1
must be lightly touching at the highest point of the feed regulator
eccentric
2
.
2
1
34
Fig. 14 - 60
●
Loosen screws
3
.
●
Move the carrier
4
in accordance with the
requirement
.
●
Tighten screws
3
.
105
107
Table of Contents
Instruction Manual
1
Table of Contents
3
Contents
4
Safety
7
Directives
7
General Notes on Safety
7
Safety Symbols
8
Built in Safety Systems
8
Important Points for the User
9
Operating and Specialist Personnel
9
Operating Personnel
9
Specialist Personnel
10
Danger
10
Proper Use
11
Specifications
12
Disposal of the Machine
13
Notes on Testing in Accordance with en 60204-1
14
Transport, Packaging and Storage
15
Transport to the Customer's Premises
15
Transport Within the Customer's Premises
15
Disposal of the Packaging
15
Storage
15
Explanation of the Symbols
16
Operational Controls
17
On/Off Switch
17
Stop Button
17
Functions of the Pedal
18
Button for Stopping Knife Actuation
18
Functions of the Quick Control Panel
19
Functions of the Switches and Buttons
19
Switching the Countdown Device On/Off
20
List of Parameters
21
Fault Indication in the Display
22
Mounting and Initial Operation
23
Mounting
23
Initial Operation
24
Switching the Machine On/Off
25
On/Off Switch
25
Preparation
26
Inserting the Needle
26
Winding the Bobbin Thread, Adjusting the Thread Tension
27
Adjusting the Needle Thread Tension on Purl Buttonholes and Flat Bartacks
28
Threading the Bobbin Case, Adjusting the Thread Tension on Purl Buttonholes
29
Adjusting the Needle Thread Tension on Flat Buttonholes and Flat Bartacks
30
Threading the Bobbin Case, Adjusting the Thread Tension on Flat Buttonholes
31
Threading the Needle Thread
32
Inserting the Bobbin Case
33
Adjusting the Sewing Pressure
33
Adjusting the Seam Width
34
Adjusting the Left Purl Seam Position
34
Adjusting the Right Purl Seam Position
35
Adjusting the Backtack Width
35
Adjusting the Number of Stitches Per Buttonhole
37
Changing the Knife
37
Changing the Plastic Insert in the Needle Plate
38
Changing the Work Clamp
38
Sewing
39
Test Seam
39
Sewing with a Single Cycle
39
Sewing with a Double Cycle
40
Stopping the Machine in an Emergency
40
Care and Maintenance
41
Cleaning
41
Lubricating
42
General Lubrication
42
Lubricating the Hook
43
Checking the Air Pressure
44
Adjustment
45
Tools, Gauges and Other Accessories
45
Machine Positions and Needle Bar Positions
46
Engaging/Disengaging the Stop Motion Device
47
Toothed Belt Drives
48
Basic Position of the Milled Screws on the Feed Regulator
49
Needle Bar and Needle
50
Pre-Adjusting the Needle Bar Height
50
Needle Bar Pendulum
52
Needle Plate to Needle
53
Basic Position of the Needle Bar
54
Lateral Movement of the Needle
55
Seam Construction
56
Bartack
58
Description of Seam Construction
59
Faults in the Seam Construction
60
Stop Motion Buffer
61
Adjusting the Catches
62
Sensing Lever and Catch Lever
63
Work Clamp
64
Basic Position of the Work Clamp
64
Knife Unit
66
Cutting Pressure
66
Upper Knife-Arm-Stop
67
Lower Stop Motion Buffer
68
Stop Axle
69
Locking Lever
72
Knife Bar Height
73
Position of the Knife Carrier Relative to the Cutting Slot
74
Height with the Buttonhole Cutter
76
Height with the Buttonhole Punch
77
Securing the Knife
78
Stopping the Knife on the Double Cycle
79
Engaging Lever
80
Needle Thread Tension
81
Bobbin Thread Trimmer
83
Bobbin Thread Trimmer Drive Linkage
84
Positioner
85
Presser Roller and Presser Bar Lifter with Work Clamp
86
Feed Lifting Cylinder
87
Needle Thread Scissor
89
Function Check
89
Trip Guide
91
Stop Piece
92
Triggering the Needle Thread Scissors
93
Backwards Motion of the Needle Thread Scissors
94
Hook and Needle Bar
95
Needle Bar Rise and Clearance
95
Needle Bar Height and Needle Guard
96
Hook Lubrication
97
Bobbin Case Holder
98
Needle Thread Monitor
99
Thread Tension and Thread Control
100
Needle Thread Puller
101
Knife Triggering Time
102
Reducing Speed
103
Switch off Time
104
Bobbin Winder
105
Lubricating the Feed Regulator Eccentric
106
Electrical Switch
107
Switch for the Starting Mechanism (S2)
107
Switch for the Work Clamp (S3)
108
Switch for Machine Stop (S5)
109
Switch for Monitoring Control Cam (S8)
110
Switch for Monitoring Knife (S21)
111
Needle Bar Stroke
112
