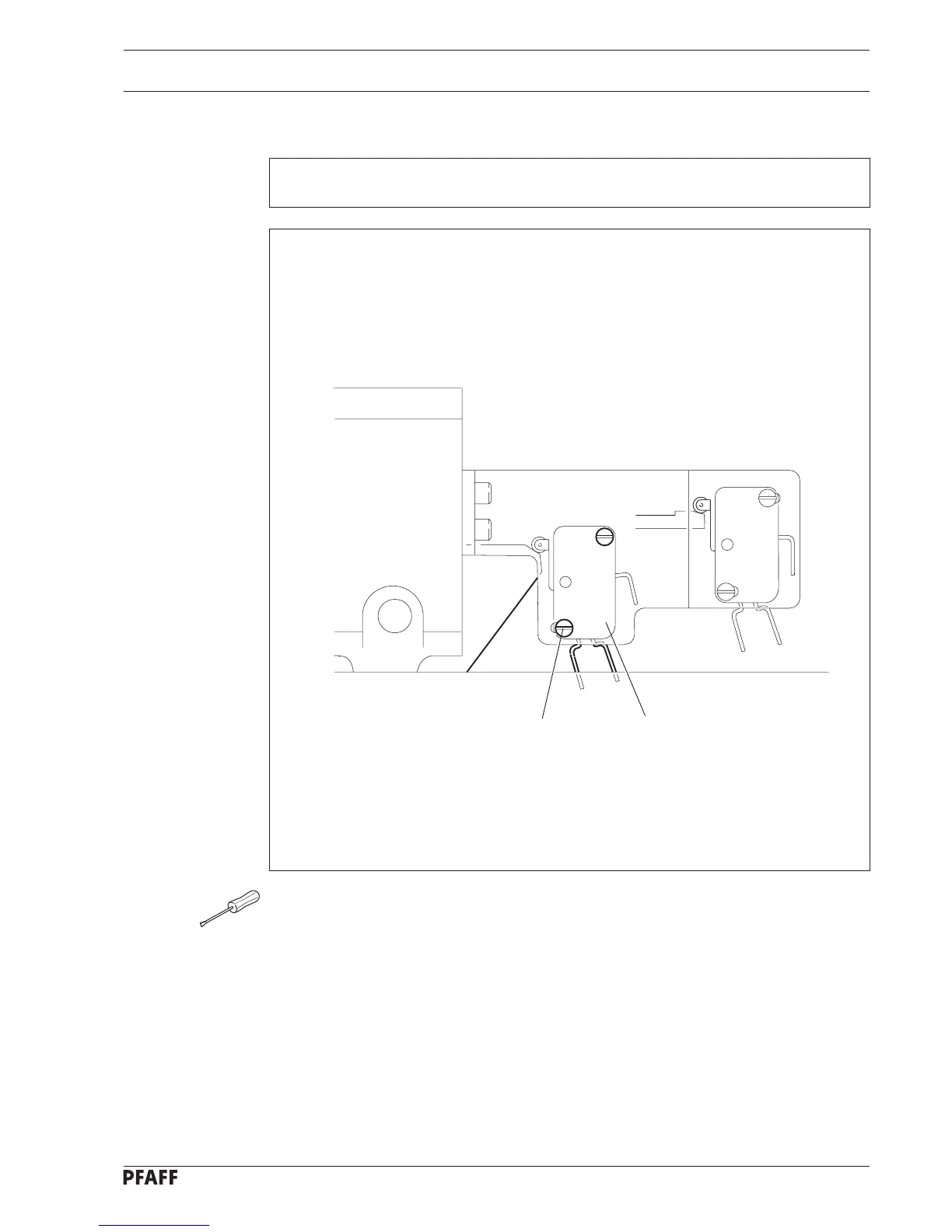

Adjustment
14 - 65
Fig. 14 - 63
1
2
14
.31.03
Switch for machine stop ( S5 )
Requirement
The switch
1
must be securely on as soon as the button is pressed.
●
Loosen screws
2
land move switch
1
in accordance
with the
requirement
.
●
Tighten screws
2
.
108
