Adjustment
14 - 6
1
2
11.5 mm

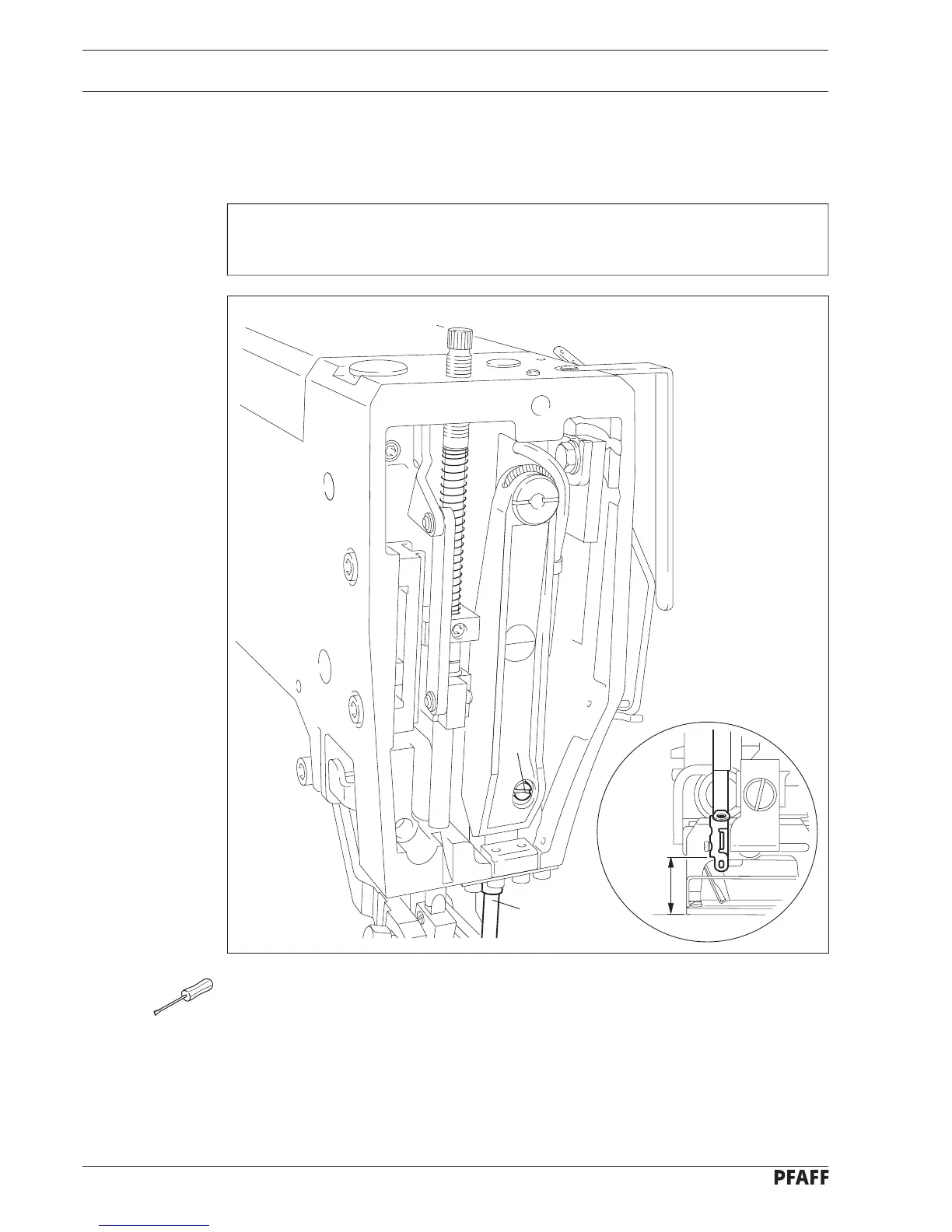

Fig. 14 - 05
●
Bring the needle bar to its BDC.
●
Loosen the screw
2
that can now be seen.
●
Move the needle bar
1
in accordance with the
requirement.
●
Tighten screw
2
.
14
.06
Needle bar and needle
14
.06.01
Pre-adjusting the needle bar height
Requirement
With the needle bar at its BDC, there should be a clearance of
11.5 mm
between the
bottom edge of the needle bar
1
and the needle plate.
