Adjustment
14 - 25
6
8
7

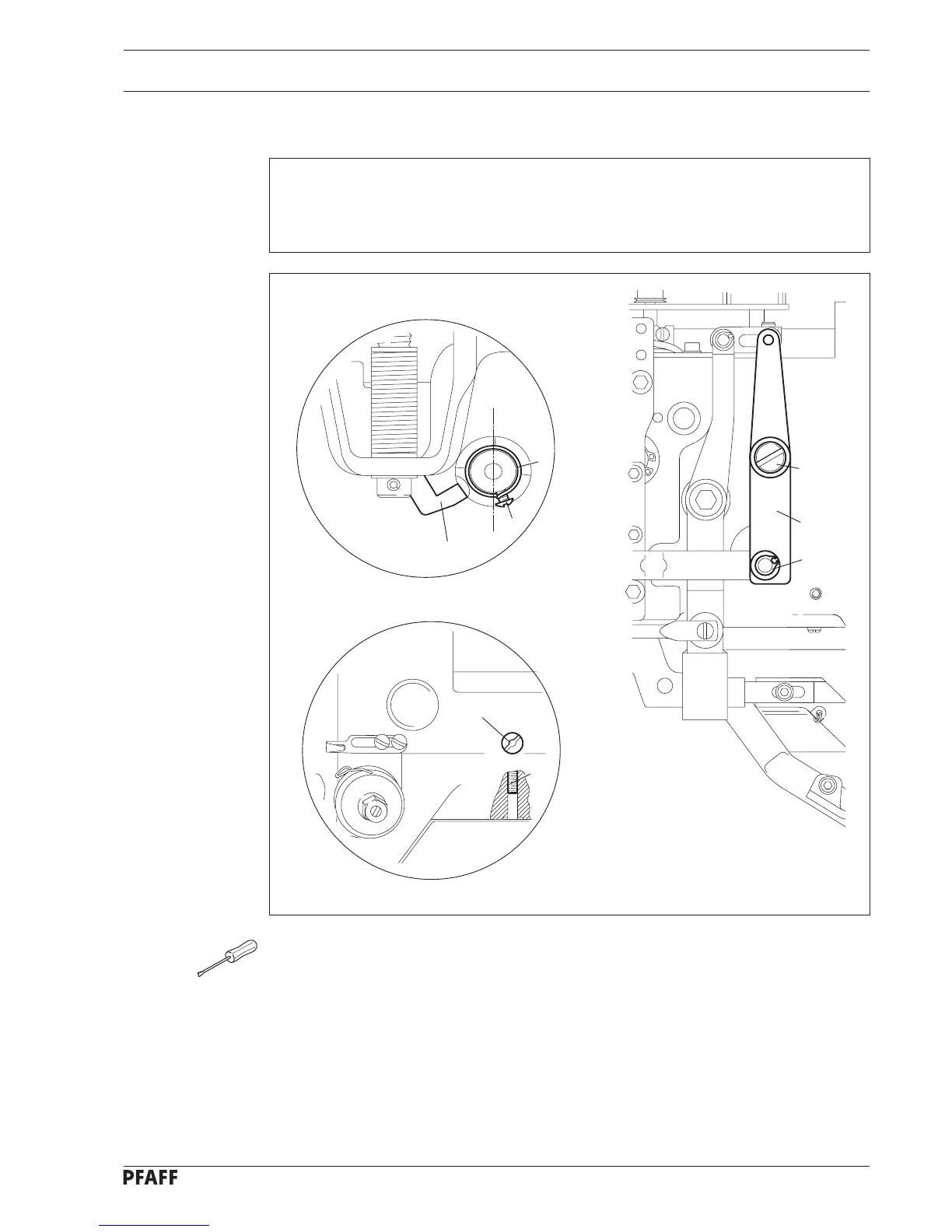

Fig. 14 - 24
3
4
2
5
1
14.12.04 Stop axle
Requirement
1. The torsion spring 1 must properly close the jaw of the stop axle.
2. The jaw of the stop axle must be opened to such an extent that the engaging lever 2
can engage properly.
● Loosen grub screw 3.
● Turn the stop axle 4 so that screw 5 is in the five o’clock position.
● Tighten grub screw 3.
● Engage stopping mechanism.
To be able to see engaging lever 2:
● Remove circlip 6, loosen screw 7 and dismount lever 8.
