Adjustment
14 - 18

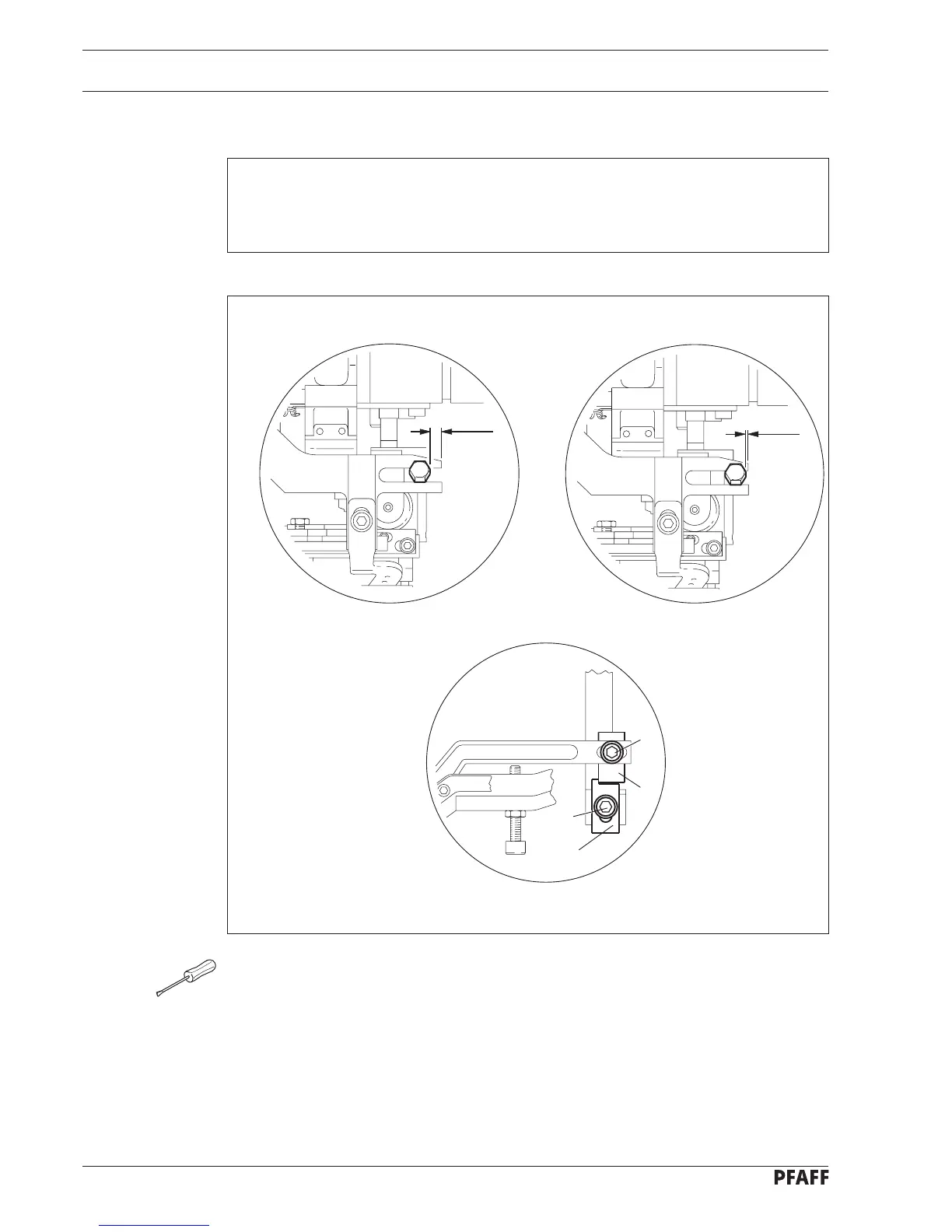

Fig. 14 - 17
2
1
4
3
Measure-
ment A
Measure-
ment B
● Bring the machine to its program end position.
● Loosen screw 2 and move catch 1 in accordance with requirement 1.
● Disengage the stop motion device and measure distance A.
● Engage the stop motion device and measure distance B.
● The difference between distances A and B must be 4.5 mm.
Adjustment:
● Loosen screw 3 and move catch 4 in accordance with requirement 2.
14.09 Adjusting the catches
Requirement
1. Catch 1 must be centered in the elongated hole.
2. The needle thread knife must travel 4.5 mm when stopping mechanism is being
engaged or disengaged.
