BALL BEARING AND ROLLER BEARING
FROM THE HUB

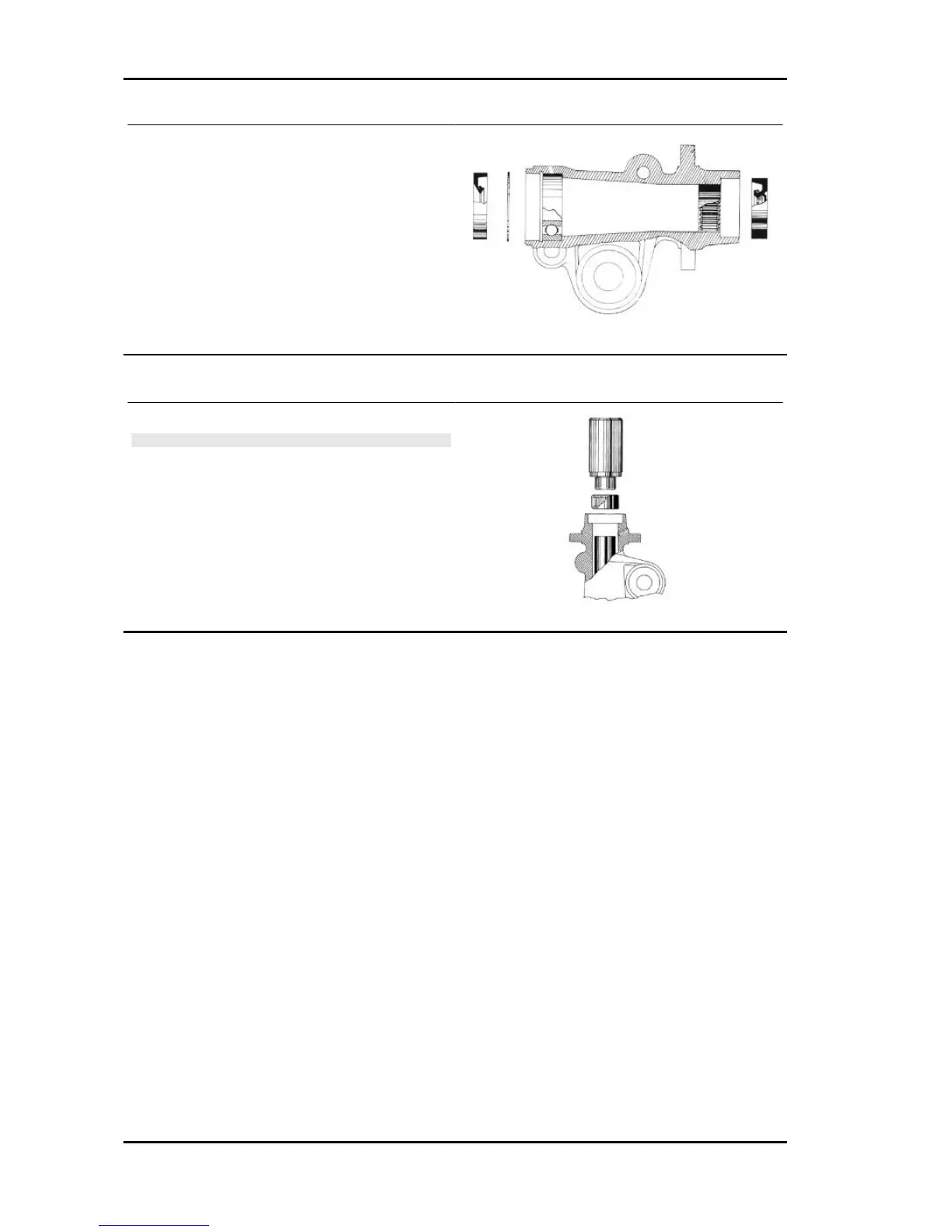

Use a Ø 24 section of tube for the ball bearing and
a Ø 24 section of tube for the roller bearing.
Spacer, roller cage and split ring
SPACER - ROLLER BEARING - SEAL RING
CAUTION
BEFORE FITTING THE SPACE AND THE ROLLER BEAR-
ING, FILL THE INTERNAL CHAMBER OF THE HUB WITH
SPECIFIC GREASE.
Wheel hub on half-shaft
Prepare the dust gaiter cap (1), the seal ring (2) and the spacer (3) on the axle shaft, then fit the hub
as described below:
1) - Use the appropriate tool complete with part. 15 and push the hub until it enters the axle shaft in the
ball bearing.
Suspensions MSS APE 50
SS - 100
